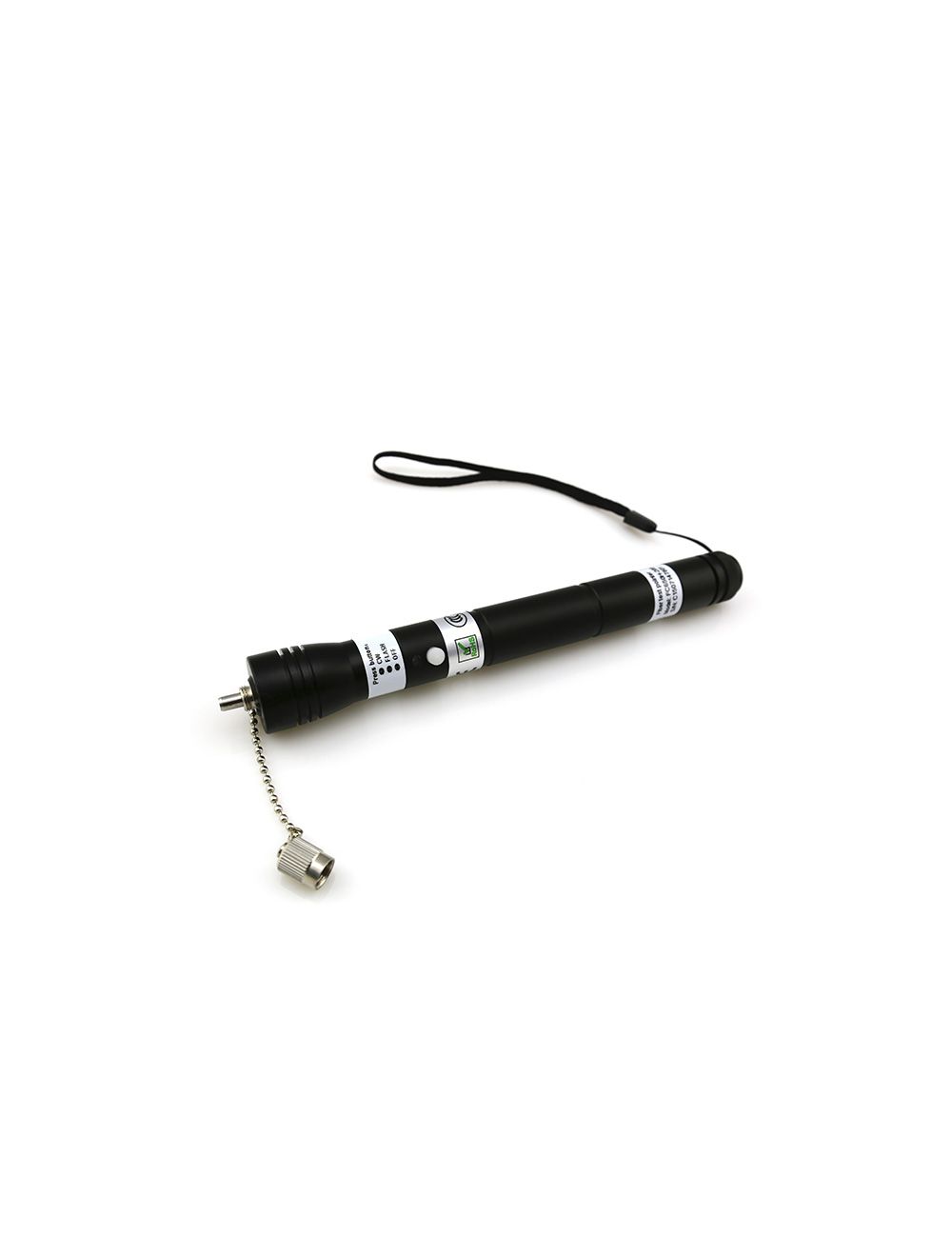

40mW Handheld Fiber Optic Detector

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.99

Special Price $132.98

  • Buy 3 for $127.00 each and save 5%
  • Buy 5 for $122.00 each and save 9%
  • Buy 10 for $117.00 each and save 13%

Quick Overview

Handheld type 40mW fiber fault detector utilizes visible 650nm red laser light source, driven by constant current light source, emitting stable and reliable red light in order to realize high efficient inspection of fiber optic breaks, bending etc.

Details

Employed by the purest 650nm red laser source, 40mW handheld fiber optic detector emits stable and bright red light in various fiber optic detection, optical fiber connector inspection, fiber tracing and other onsite construction applications. The red light enters into multi mode and single mode optical fiber after connection with optical interface.

Features of handheld fiber optic detector:
● High output power stability, long distance fiber optic detection distance, rugged and reliable
● stainless steel metal structure.
● High efficiency coupling laser supports 2.5mm universal adapter interface (FC/SC/ST). Both DC and modulation mode are available.
● Long operating endurance time. AAA battery operated fiber optic detectors enables more than 60 hours operating endurance time.
● Multiple functions including fiber breakage, bending fault location, OTDR dead zone failure check, end-to-end fiber identification, optimization of mechanical splices etc

Application fields:
● Telecommunication, CATV engineering and maintenance
● Integrated wiring construction and maintenance
● Optic device production and research
● Other fiber engineering


Technical parameters:

Model Fiber Optic Detector
Emitter LD
Wavelength 650±10nm
Output power 40mW
Laser Class IIIb
Transmission distance 25Km-30Km
Fiber Mode SM or MM
Modulation 1Hz,working cycle:60%
Connector 2.5mm FC,SC, ST general connector
Power 2pcs AA battery
Operating temperature -10ºC~+60ºC
Storage temperature -40ºC~+85ºC
Weight 160g
Length * Diameter (mm) Ø23.5 × L197mm
Working hours 40mW continuous work≥10h
Warranty Period One year

Maintenance:
1) The optical fault locator should be stored in good condition and keep the connector clean.
2) Never try to look directly into the VFL. The 650nm red laser is harmful to naked eyes.
3) Fix the battery correctly, and take battery out while no use of the detector.

Package included:
1 × Fiber Optic Visual Fault Locator
1 × Packing box
