Green Cross Generating Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.98

Special Price $125.98

  • Buy 3 for $121.98 each and save 4%
  • Buy 5 for $117.98 each and save 7%
  • Buy 10 for $113.98 each and save 10%

Quick Overview

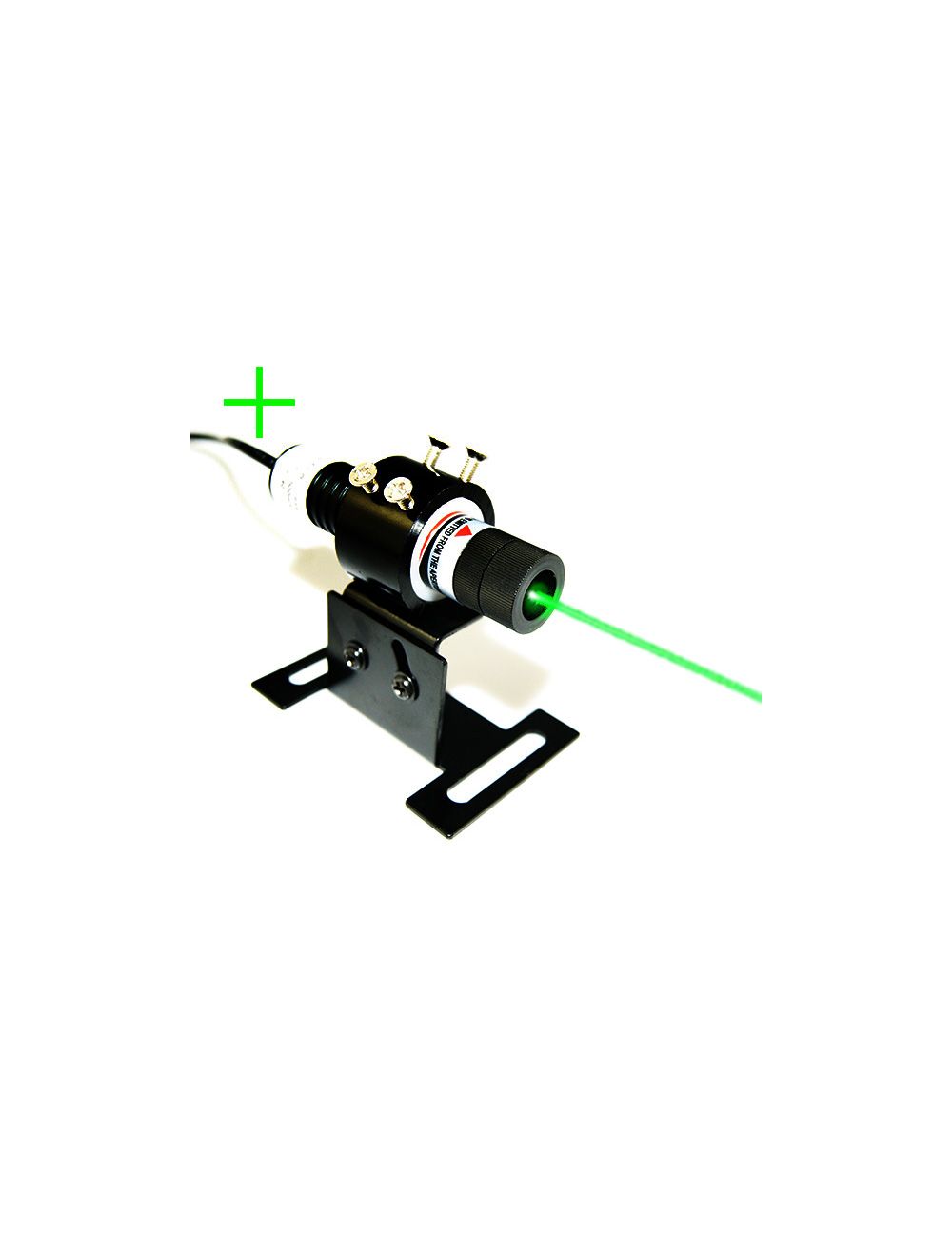

Green cross projecting laser alignment generates two perpendicular lines, is an ideal alignment device applicable where a highly visible cross is projected on to a surface. This 532nm green laser module utilizes the finest focus adjustable optics and laser diode, allowing the most visible cross lines at great distance or high light conditions.

* Required Fields

Details

The highest precision adjustable focus cross generating green laser alignment for maximum visibility at great distance or all lighting conditions.

Green cross laser alignment laser module is available with fan angle up to 90 degrees, projects a determined length of the two lines at a given distance. The green laser is five times more visible to human eyes than red laser of the same output power, making the green cross generating laser module a versatile alignment solution for alignment and positioning in all lighting conditions.

Low divergence and high efficiency. Employed by the finest laser diode and circuit board, the focus adjustable green laser module emits the most visible light in cross alignment work. This low divergence laser emits the most visible and stable cross line in high accuracy alignment required work.

Industrial laser alignment applicable for continuous operation. Operated by DC input power supply, this industrial alignment laser maintains stable performance and high efficiency in high accuracy cross alignment.

Technical parameters:

Item Green Cross-Projecting Laser Alignment
Wavelength (nm) 532nm
Output power (mW) 5mW
Available Fan Angle(degrees) 110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.4mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:
Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
