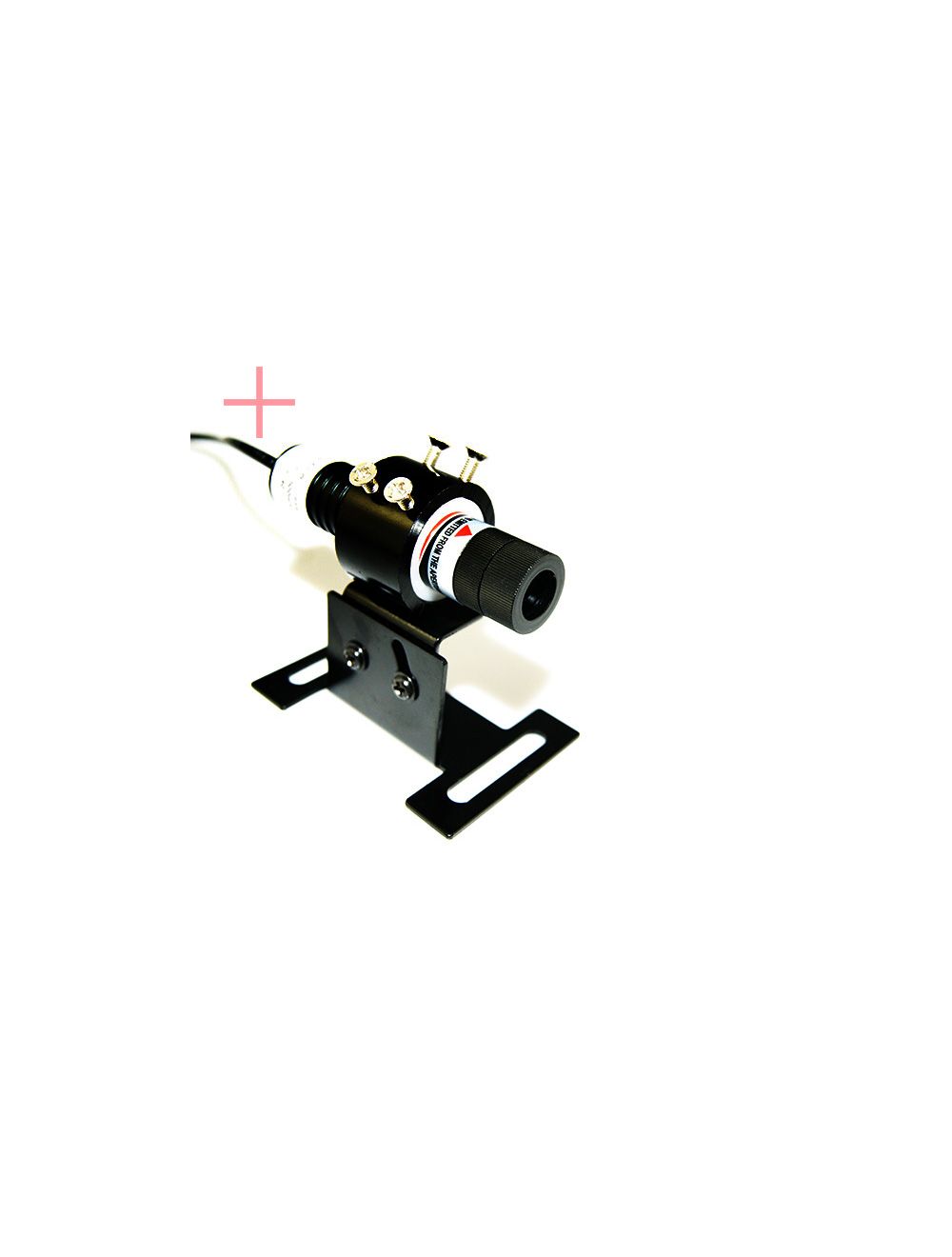

808nm Infrared Cross Generating Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $159.98

Special Price $129.98

  • Buy 2 for $126.98 each and save 3%
  • Buy 5 for $123.98 each and save 5%
  • Buy 10 for $119.98 each and save 8%

Quick Overview

808nm infrared cross generating laser alignment projects invisible two perpendicular lines on target surface where high level accuracy cross alignment with infrared light source is in needed. This portable designed 808nm infrared laser module is an ideal industrial alignment laser for all kinds of continuous operation alignment and positioning.

* Required Fields

Details

808nm infrared cross projecting laser alignment incorporates with the finest infrared laser optical system and aircraft grade aluminum body material, allowing you rapid perpendicular lines for alignment application of high level accuracy is required. This invisible light infrared laser module can be easily mounted on equipment or device to make the most accurate cross alignment for all infrared light required occasions.

Featured characteristics of 808nm cross projecting infrared laser module:

Infrared light source alignment laser of high accuracy. Employed by the highest quality 808nm infrared laser optics, 808nm infrared cross laser module projects high accuracy cross on surface where infrared light source perpendicular lines are in needed.

Industrial alignment laser for special occasions. 808nm infrared laser module designed with DC input power supply, can be easily mounted on equipment or device and operable in 24 hours a day continuously. This is a totally industrial alignment laser system with great features of high efficiency and low divergence.

Technical parameters:

Item Infrared Cross-Projecting Laser Alignment
Wavelength(nm) 808nm
Output power(mW) 5mW
Available Fan Angle (degree) 90°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:

Warning! 808nm infrared laser module emits invisible light and radiation that can be harmful to human eyes. Never look directly to the infrared laser aperture. Please always keep distance to infrared laser beam. A pair of Laser safety goggles is a necessity for high power 808nm infrared laser.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
