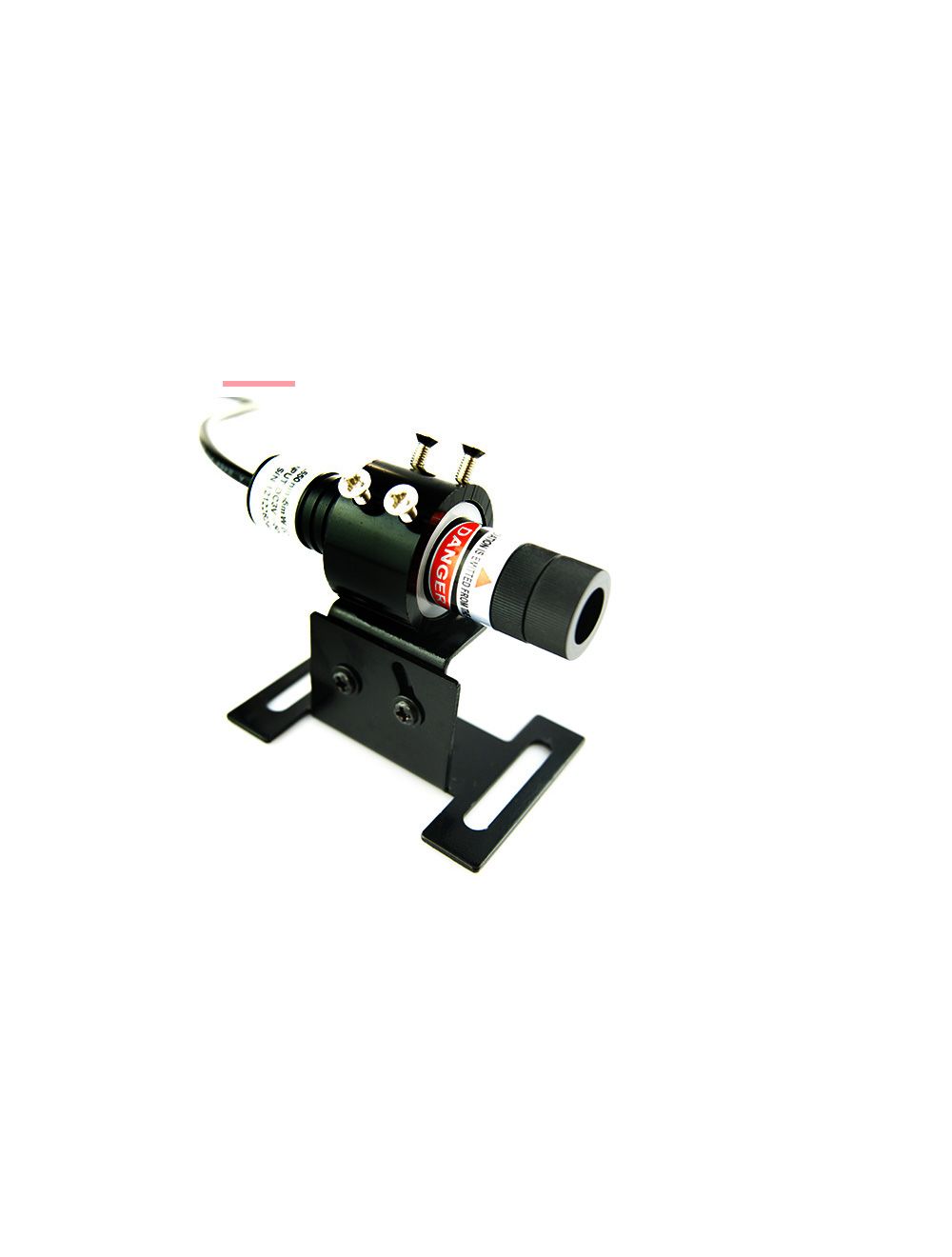

808nm Infrared Line Projecting Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.98

Special Price $115.98

  • Buy 2 for $112.98 each and save 3%
  • Buy 5 for $109.98 each and save 6%
  • Buy 10 for $105.98 each and save 9%

Quick Overview

808nm infrared line projecting laser alignment will provide you a high accuracy reference line where a high level accuracy infrared line on a surface is needed. 808nm infrared laser emits invisible beam to human eyes, this professional infrared line projecting laser module is applicable for infrared light required industrial alignment work.

* Required Fields

Details

Industrial infrared laser alignment projects highly accurate and precise reference line on alignment surface.

808nm infrared line generating laser module projects invisible infrared line on targeted surface, and provides a quick reference line for applications of high level accuracy and precision are required. Available with wide fan angles of 10°- 110°, this high precision focus adjustable infrared line laser module provides the most accurate reference line at great distance in all industrial alignments.

Featured characteristics of 808nm infrared laser module:

Durable structure and perfect inner design. FDA approval 808nm infrared line laser module incorporated with the finest 808nm laser diode and aircraft grade aluminum material, achieves stable performance in work.

Matured craftsmanship assures the highest accuracy alignment. Employed by the most matured laser diode craftsmanship, the focus adjustable 808nm infrared line laser alignment achieves the most accurate line on alignment surface.

Industrial laser operable with alignment equipments. Operated by DC input power supply, this infrared laser module is workable in 24 hours continuous pointing a day with high efficiency and accuracy. This is an ideal industrial laser for infrared light required alignment work.


Technical parameters:

Item Infrared Line-Projecting Laser Alignment
Wavelength(nm) 808nm
Output power(mW) 5mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:

Warning! 808nm infrared laser module emits invisible light and radiation that can be harmful to human eyes. Never look directly to the infrared laser aperture. Please always keep distance to infrared laser beam. A pair of Laser safety goggles is a necessity for high power 808nm infrared laser.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
