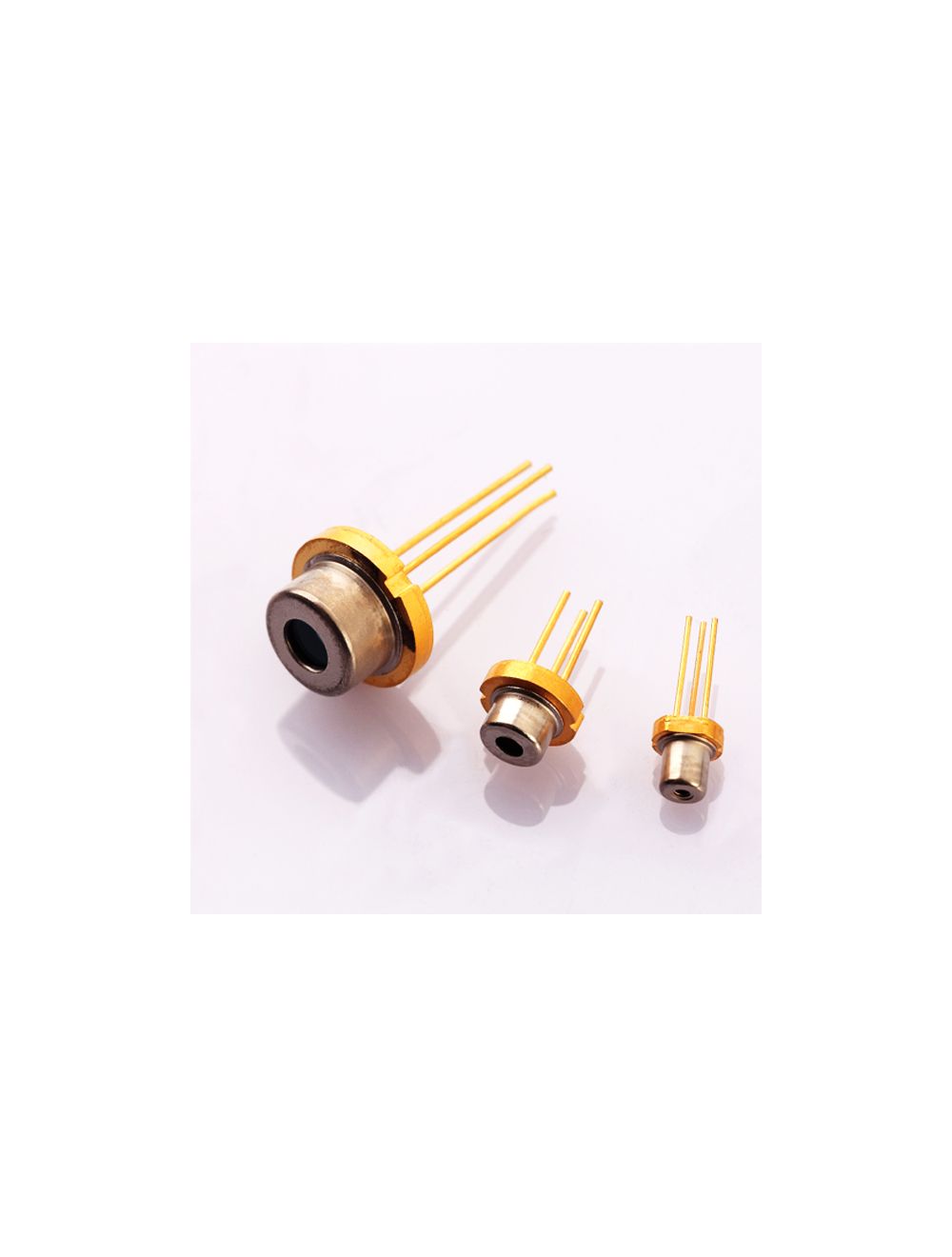

808nm Single Mode Infrared Laser Diode

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $315.00

Special Price $299.89

Quick Overview

Product name: 808nm, TO 18, TO 5 package
Output Power:100mW, 150mW, 200mW
Application: industrial, biomedical, military defense, scientific
Wavelength: 808±5nm

* Required Fields

Details

High power 808nm single mode infrared laser mode in TO5, TO18 package provides the most intense IR laser radiation in the industry. This CW 808nm SM laser diode allows the most efficient infrared light emitting with high stability and reliability performance on all application fields.

Featured characteristics:
Single Mode infrared laser diode
High efficiency and high beam intensity IR laser radiation
Narrow line width of 808±5nm
Low beam divergence and small light emitting aperture
Stable and reliable performance


Standard technical data (T=25℃) of 808nm SM laser diode:

Specification Symbol 808nm SM Laser Diode
CW Output Power P 100mW, 150mW, 200mW
Peak Wavelength λp 808±5nm
Threshold Current Ith ≤0.03A
Operating Current Iop ≤0.13A, 0.18A(150-1W)
Slope Efficiency η ≥1.0W/A
Operating Voltage Vop ≤1.9V
Horizontal Beam Divergence θ∥ ≤8 deg
Vertical Beam Divergence θ⊥ ≤17 deg
Spectrum FWHM   <0.5nm
Wavelength Temperature Coefficient   0.28nm/℃
Polarization   TE
Storage Temperature Tstg -40~+80℃
Operating Temperature Tc -20~+50℃
Package   TO-18, TO-5

TO-18, TO-5 Package Draw of 808nm single mode LD:

TO18 TO5 808nm SM laser diode
