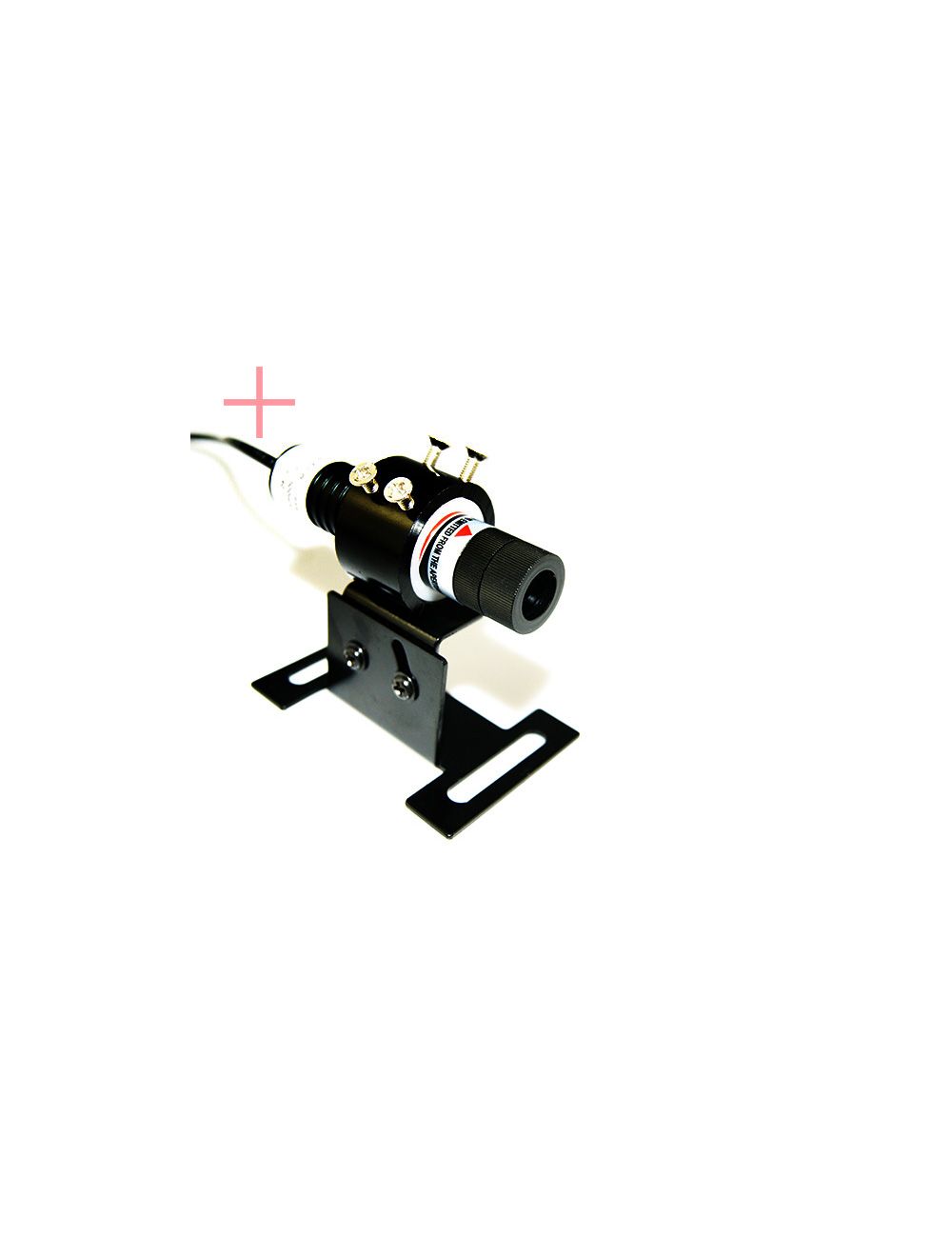

980nm Infrared Cross Projecting Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.98

Special Price $115.98

  • Buy 3 for $112.98 each and save 3%
  • Buy 5 for $109.98 each and save 6%
  • Buy 10 for $104.98 each and save 10%

Quick Overview

980nm infrared cross generating laser alignment is an ideal cross alignment laser for all alignment applications where high level accuracy two perpendicular lines is in needed. Available with the finest 980nm laser optic system, 980nm infrared cross laser module will provide you the most accuracy cross for all infrared light source required industrial alignment applications.

* Required Fields

Details

The best industrial alignment solution with the highest accuracy.

980nm infrared cross projecting laser module utilizes the finest 980nm laser diode and aircraft grade aluminum, allowing you to get the most accurate perpendicular lines on targeted surface. Mounted on alignment equipment or device, infrared laser module achieves quick and precise reference cross for all industrial alignment applications.

Easy operation industrial alignment. 980nm infrared cross generating laser alignment can be easily mounted on equipment and devices via mounting bracket, allowing you to make a quick and easy cross alignment in all occasions. This focus adjustable infrared laser module provides the best alignment solution in 24 hours continuous operating industrial laser alignment system.

High stability and reliability. Employed by the finest 980nm infrared laser diode technology and durable aluminum material, infrared cross projecting laser module will provide you a rapid reference cross at low divergence and high accuracy all the time.

Technical parameters:

Item Infrared Cross-Projecting Laser Alignment
Wavelength(nm) 980nm
Output power(mW) 5mW-100mW
Available Fan Angle (degree) 90°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<600mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:

Warning! 980nm infrared laser module emits invisible light and radiation that can be harmful to human eyes. Never look directly to the infrared laser aperture. Please always keep distance to infrared laser beam. A pair of Laser safety goggles is a necessity for high power 980nm infrared laser.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
