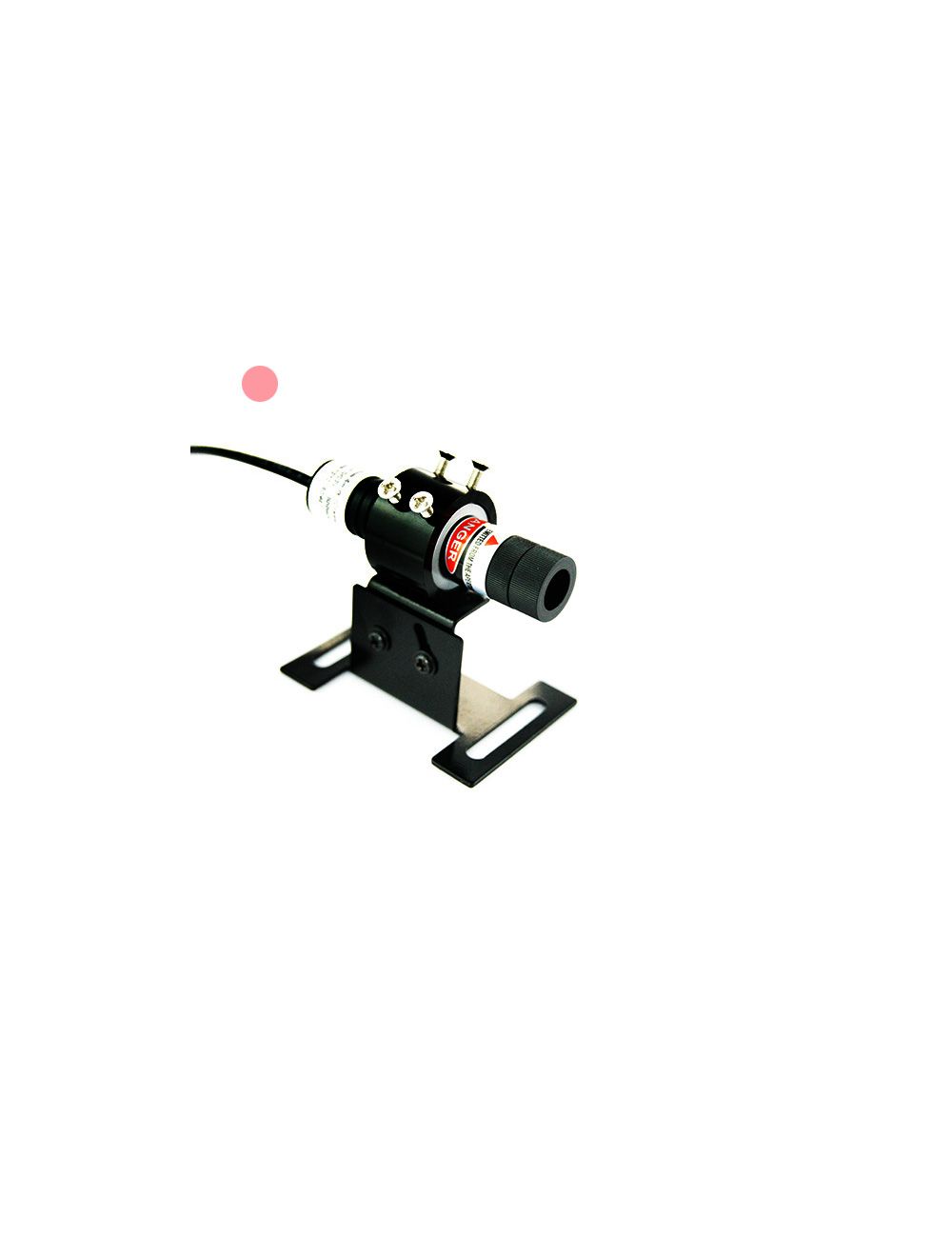

980nm Infrared Dot Projecting Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $99.98

Special Price $85.99

  • Buy 3 for $82.98 each and save 4%
  • Buy 5 for $79.98 each and save 7%
  • Buy 10 for $75.99 each and save 12%

Quick Overview

Industrial designed 980nm infrared laser module provides high accuracy and precision dot alignment solution for infrared light requirement alignment applications. The focus adjustable design increases alignment accuracy and precision for tasks of requiring high accuracy point alignment in various industrial alignment, spectrum analysis and laser excitation etc.

* Required Fields

Details

980nm Industrial infrared dot projecting laser alignment provides high accuracy reference dot on targeted alignment surface.

980nm infrared dot generating laser alignment emits invisible infrared light to human eyes, will provide you a quick reference infrared point for infrared light required alignment applications. This infrared laser module cooperated with DC input power supply, allowing continuous dot alignment in 24 hours a day.

Featured characteristics of 980nm infrared laser module:
Focus adjustable design alignment laser. High precision 980nm infrared dot generating laser alignment designed with adjustable focus optics, projects a more precise point alignment requiring high accuracy.

Durable structure laser for various application fields. Employed by the best 980nm laser diode, circuit board and aircraft grade aluminum body material, 980nm dot generating laser module provides high stability and reliability reference dot in various application occasions.

Class IIIB laser for industrial alignment. Operated by DC input power supply, it allows you continuous operation of 24 hours a day. It is an ideal industrial alignment laser for high accuracy and efficiency alignment work..


Technical parameters:

Item Infrared Dot-Projecting Laser Alignment
Wavelength(nm) 980nm
Output power(mW) 5mW
Beam diameter at aperture(mm) <2mm; at 10cm distance: <0.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<600mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:

Warning! 980nm infrared laser module emits invisible light and radiation that can be harmful to human eyes. Never look directly to the infrared laser aperture. Please always keep distance to infrared laser beam. A pair of Laser safety goggles is a necessity for high power 980nm infrared laser.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
