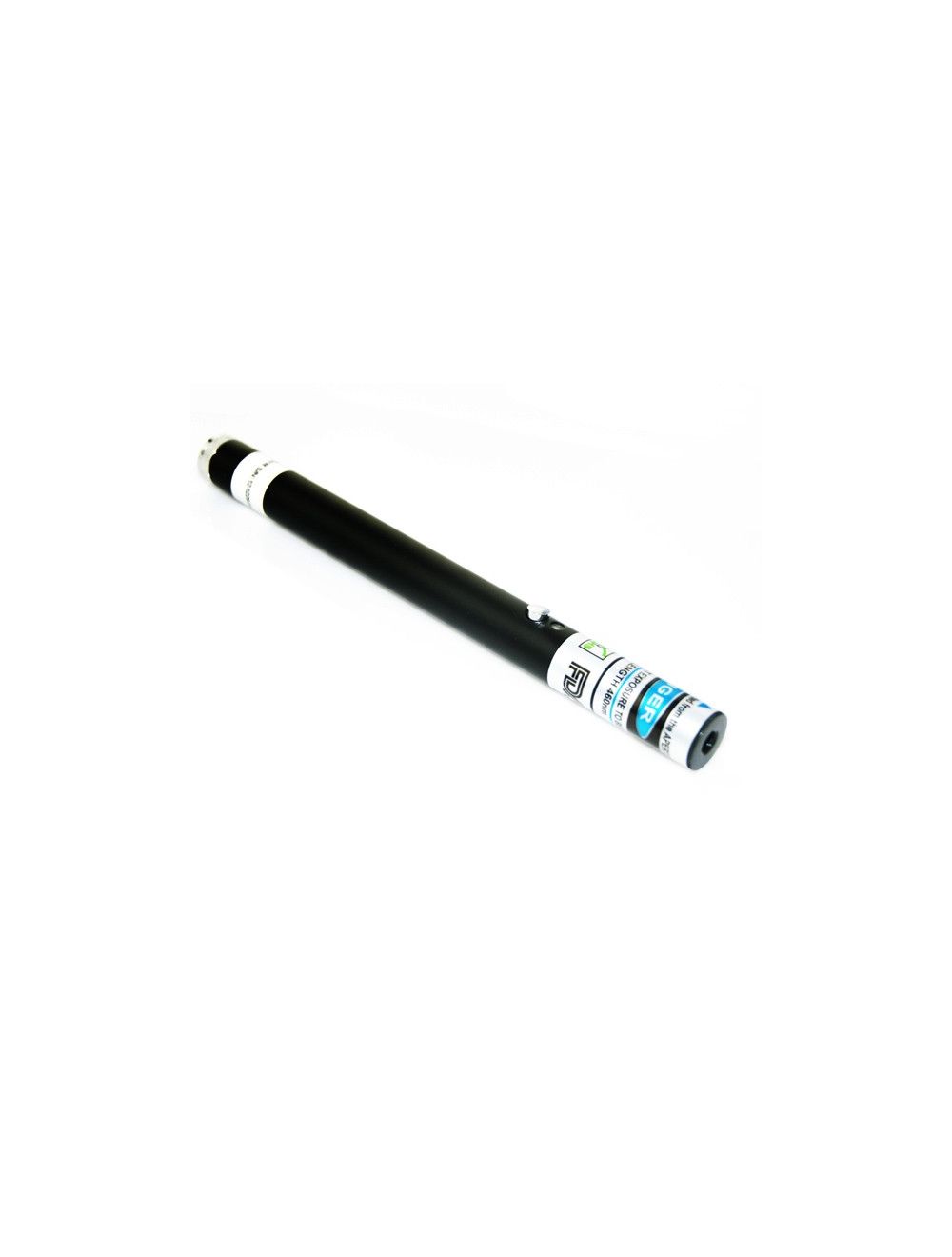

980nm Infrared Laser Pointer

The pen style infrared laser pointer emitting at 980nm, produces a completely invisible laser beam to human eyes. This 980nm infrared laser pointer is designed with high level quality finished 980nm laser diode and body material, provides high stability and reliability in various presentation work. This 100% FDA approval infrared laser is totally legal to own and tested continuously before delivery to ensure sustained performance.

was $142.98 Special Price $116.00
Availability: Out of stock
SKU
980-200
  • Buy 3 for $110.90 each and save 4%
  • Buy 5 for $105.88 each and save 9%

980nm infrared laser pointer utilizes the most advanced laser diode technology, provides the most stable infrared light source for military measurement, industrial illumination and medical treatment. Employed by the highest level 980nm laser diode, material and air cooling system, it allows high intensity invisible beam pointing in continuous operation.

High performance 980nm infrared laser pointer. The high level craftsmanship of 980nm infrared laser diode assures the best performance in all operation work. Employed by the best laser diode technology, 980nm IR laser allows the most intensity infrared light source for night vision illumination work.

Wide applications in great fields. Pen style 980nm infrared laser pointer has got numerous applications in solid state laser pumping, medical treatment, beacons and illuminations. infrared laser is also a functional widget in free space communication, distanced measurement in military field, laser weapons, and scientific research etc.

Safe design with FDA approval. Employed by high safety standard design, this infrared laser pointer is totally FDA approval. You can have a safe use of laser in all work fields.


Technical Parameters:

Name Infrared Laser Pointer
Wavelength 980nm
Output power  200
Laser class III
Transverse mode TE00
Range in darkness (m) 200-8000m
M2 factor <1.2
Beam divergence, full angle (mrad) <2.5
Beam Diameter at Aperture (mm) <2.8
Spectral Line width (nm) <0.1
Polarization Ratio >100:1
Warm-up Time (minutes) <0.5
Operation Temperature (℃) 10~30
Storage Temperature(℃) -10~+50
Housing material Aluminum
Expected Lifetime (hours) 8000
Laser Head Dimensions (D×L, mm) Φ14mm×171mm
Cooling System Metal Heat Sink
Operating voltage (VDC) 2×AAA batteries
Warranty time Six Months



Packing list: 1. Infrared laser pointer; 2. black hard plastic box

Note:
1. You can never realize the danger of infrared laser until you are hurt. Please avoid any expousure to IR laser beam.

2. The infrared laser beam is invisible. Please operate infrared laser under special instrument.
