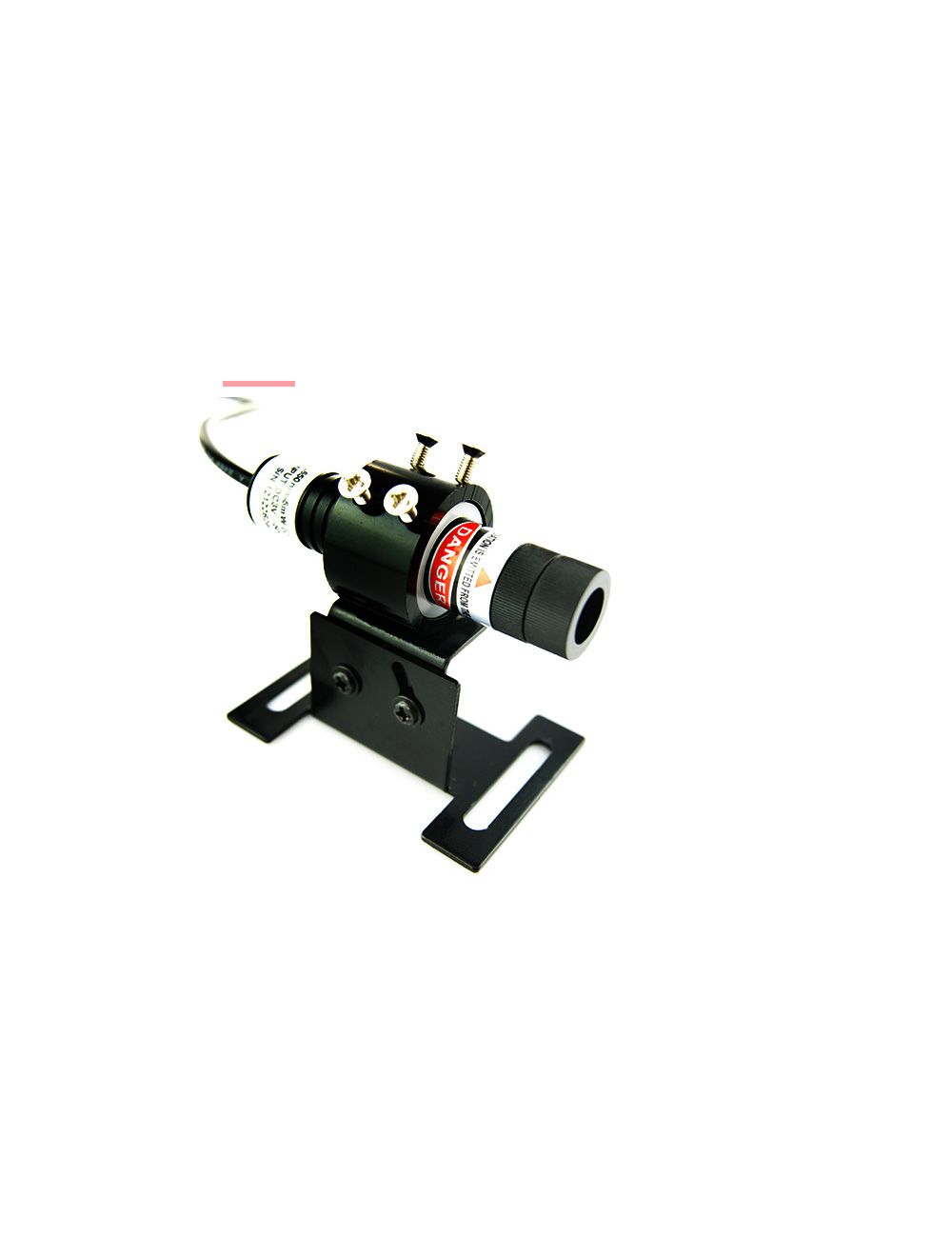

980nm Infrared Line Projecting Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $109.98

Special Price $96.98

  • Buy 2 for $93.99 each and save 4%
  • Buy 5 for $90.99 each and save 7%
  • Buy 10 for $86.99 each and save 11%

Quick Overview

980nm infrared line generating laser module is ideal for any alignment application where a highly accurate infrared alignment line projected on to a surface is required. Available with fan angles from 10 degrees to 110 degrees, 980nm infrared laser module will provide a high precision infrared line at great distance.

* Required Fields

Details

The highest accuracy and focus adjustable laser for maximum precision in all infrared light required line alignment.

Berlin Lasers’ 980nm infrared line projecting laser alignment generates invisible infrared light for infrared line alignment on a surface. This high efficiency infrared laser module incorporates with focus adjustable optics, greatly increasing the precision for tasks requiring the highest level of accuracy or great working distance. This is an ideal industrial alignment laser proving a versatile alignment solution of all infrared light required alignment work.

Featured characteristics of 980nm infrared line laser module:

Durable structure with perfect inner design. 980nm infrared laser alignment utilizes the finest 980nm infrared laser optical system and aircraft grade aluminum material, fulfils the most accurate and precise infrared line alignment.

Industrial alignment laser with high efficiency. Operated by DC input power supply, this industrial alignment laser maintains high efficiency and accuracy in all infrared light source required applications.

Technical parameters:

Item Infrared Line-Projecting Laser Alignment
Wavelength(nm) 980nm
Output power(mW) 5mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<600mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:

Warning! 980nm infrared laser module emits invisible light and radiation that can be harmful to human eyes. Never look directly to the infrared laser aperture. Please always keep distance to infrared laser beam. A pair of Laser safety goggles is a necessity for high power 980nm infrared laser module.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
