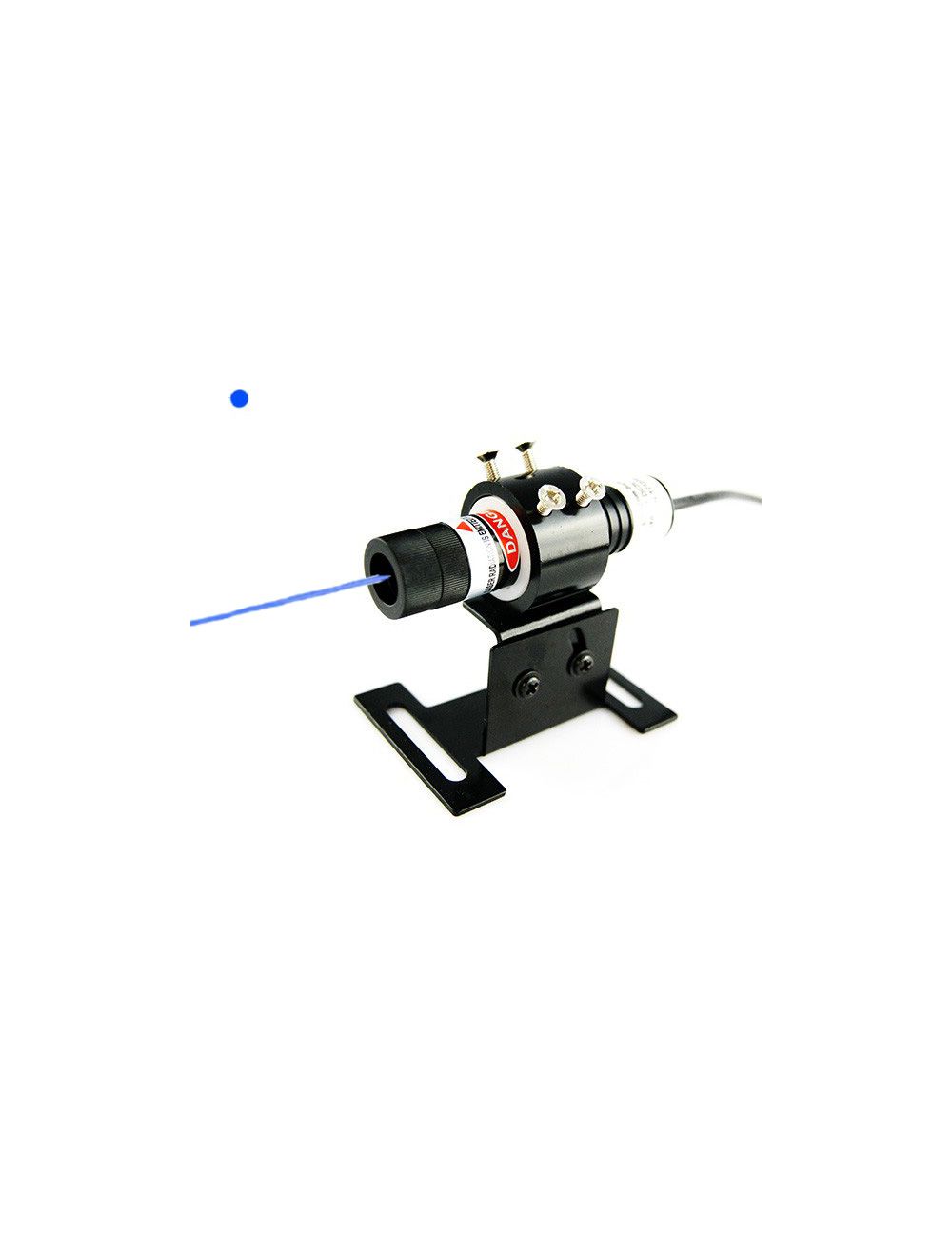

Blue Dot Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $159.98

Special Price $105.98

  • Buy 3 for $102.98 each and save 3%
  • Buy 5 for $99.98 each and save 6%
  • Buy 10 for $95.98 each and save 10%

Quick Overview

445nm blue dot laser alignment adopts the finest 445nm blue laser diode as light emitting source, providing the most special and high brightness dot measurement on required targeting surfaces. It provides a kind of economic solution of dot positioning for all kinds of industrial dot alignment such as laser marking, textile processing, or other dot projection fields.

* Required Fields

Details

Blue dot laser alignment adopts quality approval aluminum alloy body material, equipped with intellectual feedback circuit board and the finest quality 445nm laser diode, allowing the most efficient dot projection on any targeted surfaces.

Features of 445nm blue dot laser alignment:

● Combining thermal stabilization and constant current circuit board with 445nm blue laser diode, this dot projecting laser alignment allows quite stable and reliable dot projection on any industrial dot projection continuously.

 Inner designed metal heat sink cooling system allows stable dot emitting reliably. Blue laser alignment adopts perfect temperature stabilized system to assure long time continuous work and long endurance lifetime time under 24 hours continuous dot positioning.

Perfect heat emitting design allows wide industrial applications. Blue dot laser alignments uses advanced dual direction temperature projection function. It can ensure wide range operating temperature during dot projection. It can be widely used in industrial calibration and positioning.

Technical parameters:

Item Blue Dot Laser Alignment
Wavelength (nm) 445nm
Output power (mW) 50-100mW
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 3mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:
Only trained or skilled people are allowed to operate blue dot laser alignment. Adjust the laser alignment to the correct direction and suitable dimension of blue light spot in order to make accurate dot alignment.

Laser radiation is harmful to human eyes. Never look directly into laser aperture or retina might be seriously hurt. Any exposure to laser beam at close distance can cause serious eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
