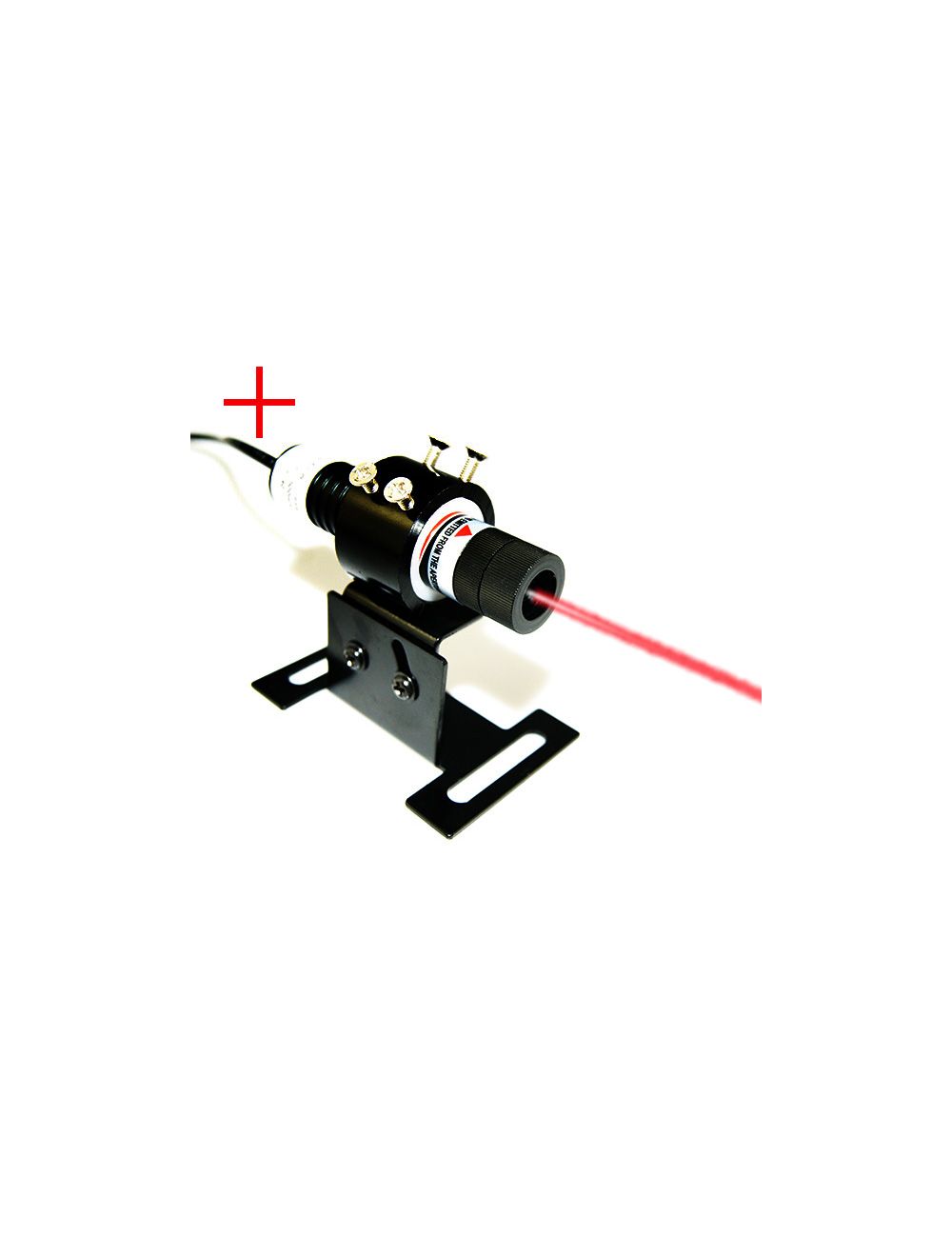

Economy Red Cross Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $119.00

Special Price $109.95

  • Buy 2 for $106.95 each and save 3%
  • Buy 5 for $103.95 each and save 6%
  • Buy 10 for $100.98 each and save 9%

Quick Overview

Berlin Lasers’ economy red cross projecting laser alignment is sufficient to provide moderate precision cross line alignment in work. This red laser module generates two perpendicular lines with a projection angle of 90 degrees on the work surface, enables you to make visible two dimensions rapidly.

* Required Fields

Details

Economy industrial alignment laser provide moderate precision cross line alignment in work.

650nm red cross generating laser alignment enables you to use two perpendicular lines to project a cross line on the work surface where you need a rapid two dimensions rapidly. Not as bright as 532nm green laser, this red laser module is sufficient to provide an economy solution for alignment work requiring a moderate level precision.

Moderate accuracy alignment at affordable price. Red cross laser module projects moderate accuracy two perpendicular lines on work surface, is an economy solution for industrial alignment and positioning at an affordable price.

Industrial alignment laser with constant operation. Employed by DC input power supply, this high efficiency red laser alignment provides 24 hours continuous pointing in various alignment works in decoration, wood cutting, and instrument etc.

Durable structure and high reliability. This cross generating alignment laser incorporates with the finest laser diode, circuit board and aluminum material, assures the low divergence and high reliability in all working conditions.

Technical parameters:

Item Economy Red Cross-Projecting Laser Alignment
Wavelength(nm) 650nm
Output power(mW) 5mW
Available Fan Angel (degrees) 90°
Beam diameter at aperture(mm) 2m beam diameter: <2.2mm
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months


Note:
Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.

Product Tags

Other people marked this product with these tags:

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews 2 item(s)

Even stable and reliable 50mW red cross laser alignment tool
50mW 650nm red cross laser alignment is not the primary purchased order. But I got a refund and change my primary order of 635nm red cross laser alignment. When 635nm red cross laser output power is higher than 50mW, the laser beam will not be very stable and even straight. At the end of 635nm red laser laser, there might be tiny tails. It might affect the cross measuring result. Thus I am suggested to choose this 650nm 50mW red laser alignment to finished my test.

When I user this 650nm 50mW red cross laser alignment in my cross positioning test, the cross lines are always very stable, straight and bright. The laser beam quality is quite excellent, and I am quite satisfied with this purchase change. It is performing wonderful. Review by Bob Guenth / (Posted on 4/18/2015)
Accurate cross alignment for fabric alignment on a die cutting machine
I have just chosen the cross alignment laser for fabric alignment. I got the test result as below:
Test distance from laser beam emitting hole to targeting field: 30cm
red cross line length: about 7cm
This cross laser alignment tool is very stable in cross projecting work. It is workable on a plastic /polypropylene surface. It is just using perfect. Review by Cathrine Nyaga / (Posted on 4/14/2015)
