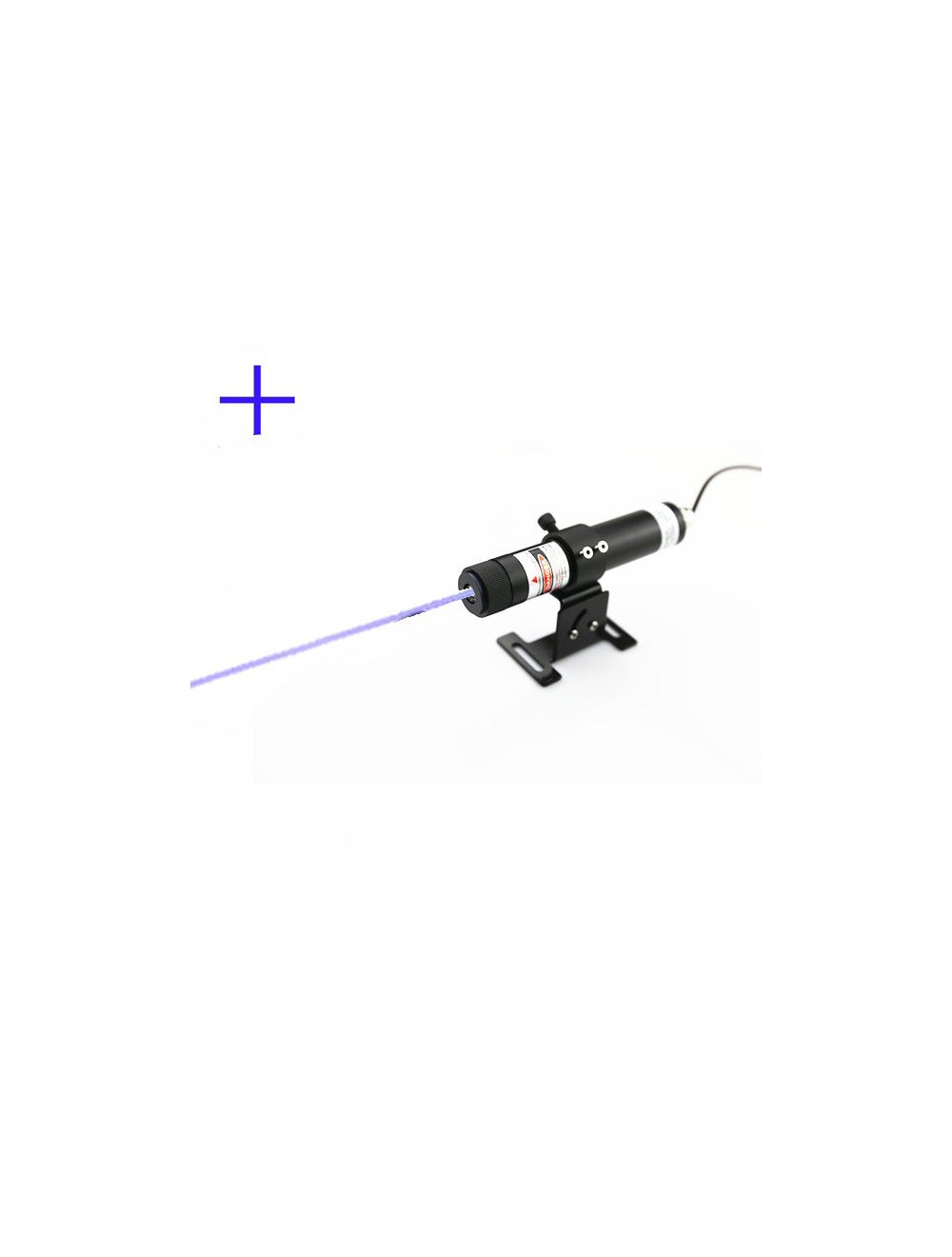

High Power 405nm Violet Cross Laser Alignment

Employed by qualified glass coated lens with selectable optic lens degree of 10, 15 and 110 degree, high power 405nm violet cross laser alignment generates complex two perpendicular lines with accurate 90 degrees from beam aperture part. It is perfectly configured with metal heat sink cooling system, copper material made 405nm violet laser diode core part inside its metal housing tube, this 405nm blue laser module keeps superior thermal conductivity, providing high stability blue cross line source for those of prominent institutes, university, colleges and others etc.

was $335.99 Special Price $297.99
Availability: In stock
  • Buy 2 for $295.99 each and save 1%
  • Buy 5 for $293.99 each and save 1%
  • Buy 10 for $291.99 each and save 2%

Puzzled with accurate cross line aligning immediately? High power 405nm violet cross laser alignment is just the best solution for users to make accurate and quick cross line source generation for those of long distance aligning works. This 405nm violet laser module maintains direct diode emission and constant electric power source from DC input power supply, which is making sure of clear and quick cross line source aligning for multiple work fields, including industrial cross line marking device, military shooting and cross line positioning, education and experience cross line source, laser medical treatment device, demonstration laser light source etc.

● Import 405nm violet laser diode assures superior stable cross line alignment. High power 405nm violet cross laser alignment employs qualified laser diode and thermal emitting system, obtaining at least 40% improvement of laser beam stability in long term use. This infrared cross line laser allows stable and reliable cross line alignment within 8 to 10 hours per day.

● Constant electric power supply and stable performing under harsh occasions. Supported by external DC input power supply, violet cross laser alignment obtains larger space for metal heat sink cooling system and APC driving circuit board. This durable structure made cross line laser bears harsh occasion of strong interference or strong static, maintaining good laser light cycling use and long serving lifetime under formal operation.

● Wide range output power and optic lens degrees assure multiple occasion and lighting occasion precise cross line alignment. Qualified glass coated lens with selected optic lens degrees obtains high linear quality and different cross line dimension violet cross line laser source. High power 405nm violet laser module gets high laser beam transmittance and strict laser beam stability tests, enables reliable cross line generation for multiple working occasions, including industrial cross line marking, military targeting device and equipment, education and experiment cross line source, laser medical treatment, and stage light etc.

Technical parameters:

Item High Power Violet Cross Laser Alignment
Wavelength (nm) 405nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angle(degrees) 10°, 15°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: ≤2mm
Beam divergence (mrad) ≤2.5mrad
Beam mode (before optics) TE00
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L171mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


High power violet cross laser alignment only allows operation by trained people or skilled users. Users should adjust laser alignment to the best condition and operate under special alignment equipment.

Warning! 405nm high power violet laser module emits radiation and reflection that can be harmful to human eyes. Never look directly into laser beam aperture to avoid eye damage or hurt. Do remember to wear laser safety goggles for line alignment use.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High power 405nm violet cross laser alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
