10mW-200mW 633m Red Diode Laser System

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: 768,00 US$

Special Price 752,00 US$

Quick Overview

Red diode laser system at 633nm gets superior advantages of compact structure, high output power stability, long serving lifetime and competitive prices. It gets wide output power level of 10mW to 200mW, this special TEM00 beam mode red diode lasers are providing high brightness and high intensity red laser beam and perfect circular dot in all kinds of scientific applications work fields.

* Required Fields

Details

633nm red diode lasers are ideal red laser source providers for those high tech working fields, involving measurement, spectrum analysis, PIV, laser display, biological research, and substitutes of He-Ne Lasers etc. The special laser beam transverse mode of TEM00 ensures brighter laser beam emission and better circular shape laser dot targeting.

Within wide output power range from 10mW to 200nmW, integrated TEC cooling system into compact structure, 633nm red diode laser system provides high stability laser beam for all working occasions during long term continuous operation. Both diode laser and diver are designed with FDA safety standard approval, reduced dimension available.

Key features:

High output power stability, high reliability for long-term operation
TEM00 beam mode gets excellent circular laser dot targeting
Protection from over current and over temperature, built-in statistic protection module to ensure up 10,000 hours lifetime
TEC cooling system gets superior thermal conductivity
TTL and the Analog modulation
Easy operation red diode laser system running on AC power supply

Technical data:

Item Red Diode Laser System
Wavelength 633±5nm
Output power 10mW,20mW,50mW,100mW,150mW,200mW
Power adjust(mW) 0-Pmax
Transverse mode TEM00
Operation Mode CW
Power Stability(rms, over 4hours) <1%, <3%, <5%
M2 factor <1.2
Beam divergence, full angle (mard) <1
Warm up time (minutes) <5
Beam waist diameter(mm) <2
Spectral line width (nm) <2
Point stability after warm-up(mrad) <0.05
Polarization 50:1
TTL modulation 30KHZ
Analog modulation 30KHZ (0~max output when 0-5V signal input)
Operating temperuter (℃) -10-40
Storage temperature (℃) -10-50
Modulation Option 0~30khz TTL/Analogue
Severing lifetime (hours) 10,000
Warranty period 1 year

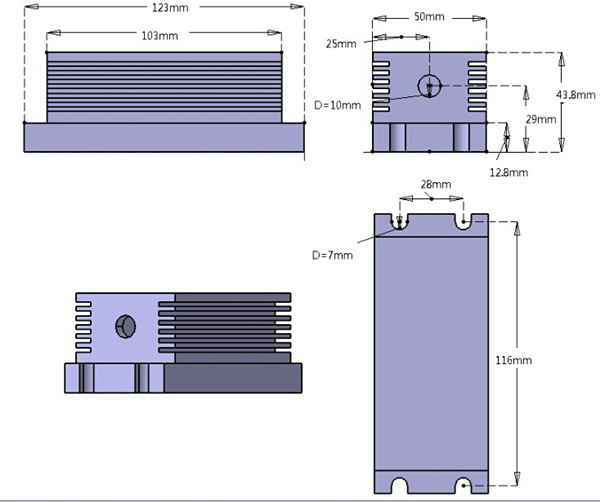

Dimension of 633nm Red Diode Laser System:

10mW-200mW 633m Red Diode Laser System head dimension

Note:

Berlinlasers accepts customize 633nm point laser, line laser and crosshair laser, fiber coupled lasers and OEM lasers on basis of customers' requirements. All high power 633nm red diode lasers specifications accept customize according to user's need. For any OEM laser, please feel free to contact us via email support@berlinlasers.com.
