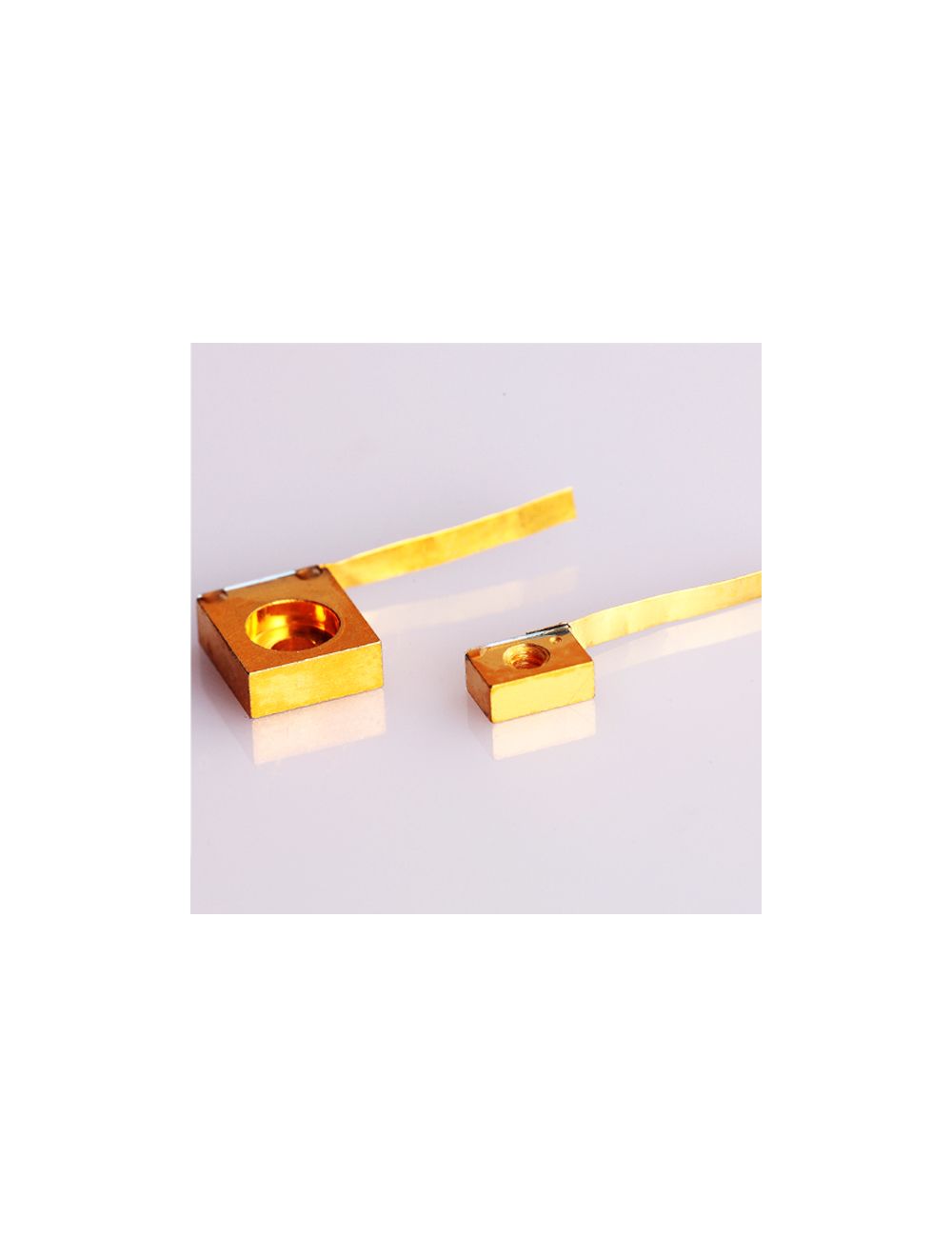

965nm Multimode Infrared Laser Diode
Product name: 965nm, C-mount package
Laser Diode output power: 2000mW
Application: laser pointers, infrared laser source equipment, high precision measuring, laser module, diode laser equipment, medical instrument, aerospace applications
Wavelength: 965±10nm
High output power range available 965nm multimode infrared laser diode fulfils the most intense infrared laser radiation in the industry. This C-mount package 965nm far infrared laser diode ensures high efficiency and high stable performance in use of all CW diode lasers.
Featured characteristics:
High output power 965nm multimode laser diode: 2000mW
High beam intensity laser radiation
Super narrow line width of only 965±10nm
Low beam divergence and small laser light emitting aperture
Reliable and stable performance
Standard technical parameters of 965nm multimode infrared laser diode:
| Item | Symbol | MM LD-965-2000 |
| CW Output Power | P | 2000mW |
| Peak Wavelength | λp | 965±10nm |
| Threshold Current | Ith | ≤0.5A |
| Operating Current | Iop | ≤2.56A |
| Slope Efficiency | η | ≥0.9W/A |
| Operating Voltage | Vop | ≤2.0V |
| Horizontal Beam Divergence | θ∥ | ≤10 deg |
| Vertical Beam Divergence | θ⊥ | ≤40 deg |
| Wavelength Temperature Coefficient | 0.4nm/℃ | |
| Polarization | TE | |
| Storage Temperature | Tstg | -10~60℃ |
| Operating Temperature | Tc | -0~35℃ |
| Package | C-Mount |
C-mount package 965nm MM(multimode) infrared laser diode draw:
