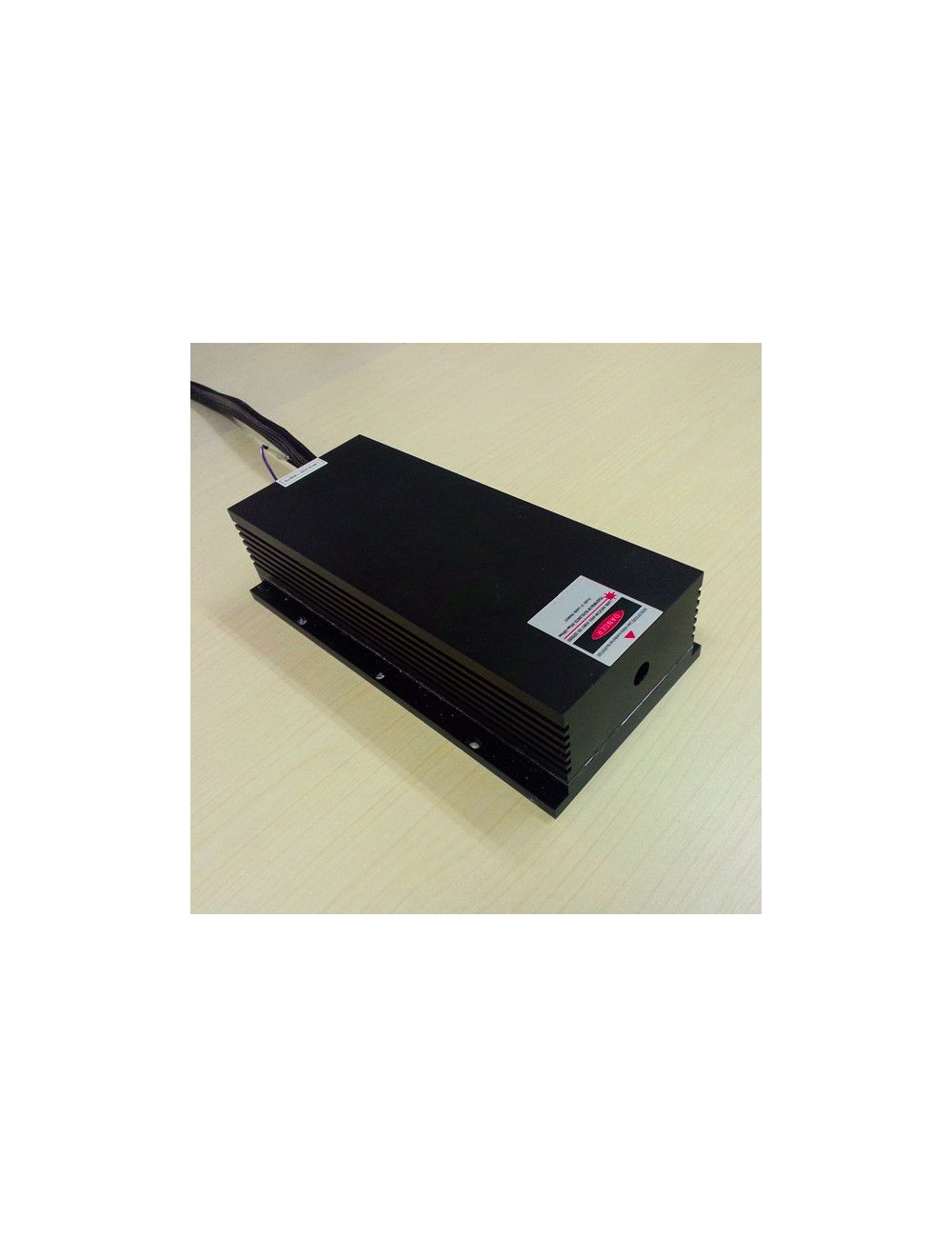

TEM00 10mW-100mW 515nm Green Diode Laser System

515nm green diode laser system gets shorter wavelength than 532nm green DPSS laser, but direct diode emission green laser beam still keeps high brightness and high laser beam visibility. According to its high intensity green laser beam emission from 515nm green laser diode, this advanced diode lasers are always providing high stability and high output power stability within wide output power level of 10mW to 100mW for long-term operation.

was $1,339.00 Special Price $1,319.00
Availability: In stock
SKU
tem00-515vdls
  • Buy 2 for $1,210.00 each and save 8%
  • Buy 5 for $1,200.00 each and save 9%
  • Buy 10 for $1,190.00 each and save 10%

515nm green diode lasers are ideal laser sources where high stability and high reliability laser beam emission is in serious need. Integrated with TEM00 laser beam transverse mode, green laser light keeps super high brightness, and green laser dot on work surface keeps the most compact size and circular shape. According to external configuration of AC power supply, 515nm green diode laser system is widely used for scientific researches for all universities, labs, and research institutes etc.

515nm green diode lasers are available with ultra compact structure and competitive prices, is commonly used for scientific experiment, laser fluorescence, laser medical treatment, optical instrument, laser displaying and a wide board of other applications. Both diode lasers and AC power drivers are FDA safety standard approval.

Key features:

Direct diode emission 515nm green laser system gets even higher output power stability, and long operation lifetime of more than 10,000 hours.
High light efficiency, and good linear analogue
TEM00 beam mode obtains small laser beam size and low beam divergence
Protection from statics, over-current, and overheating
Wide output power level of 10mW to 100mW

Technical data:

Item Green Diode Laser System
Wavelength 515±5nm
Output power 10mW, 20mW, 30mW, 50mW, 100mW
Transverse mode TEM00
Operation Mode CW
Power Stability(rms, over 4hours) <1%, <3%, <5%
M2 factor <2
Beam divergence, full angle (mard) <2
Warm up time (minutes) <5
Beam diameter at aperture (mm) <3
Operating temperuter (℃) -10-40
Storage temperature (℃) -10-50
Modulation Option TTL/Analogue
Severing lifetime (hours) TTL/Analogue
Warranty period 1 year

Note:

Berlinlasers accepts customize 515nm point laser, line laser and crosshair laser, fiber coupled lasers and OEM lasers on basis of customers' requirements. All TEM00 515nm green diode lasers specifications accept customize according to user's need. For any OEM laser, please feel free to contact us via email support@berlinlasers.com.
