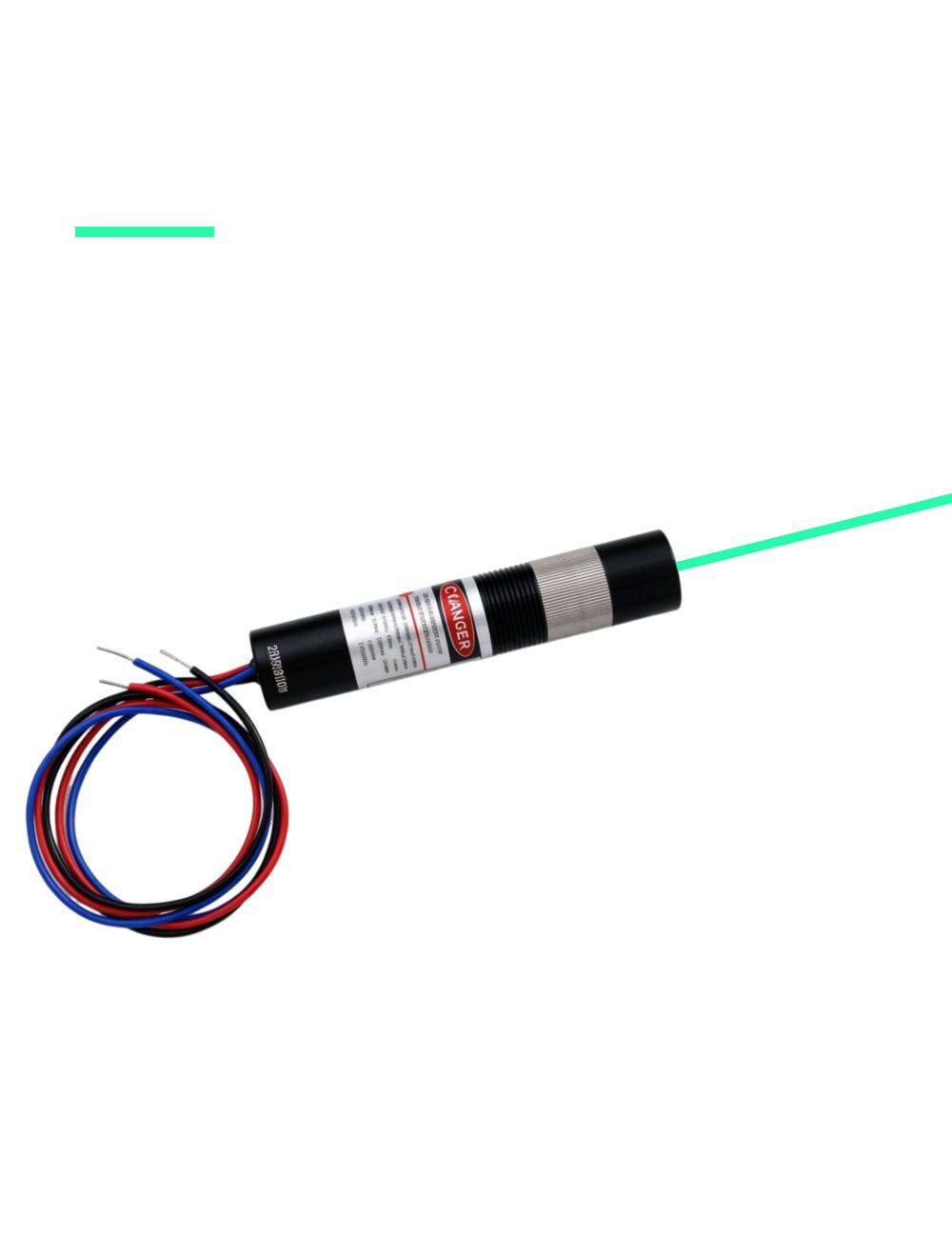

TTL Modulation 515nm Green Line Laser Alignment
High brightness TTL modulation 515nm green line laser alignment combines TTL modulation, adjustable focus designs, enables high speed on/off switching via external signal levels to project a bright, fine and straight green reference line for both long distance and ambient lighting. It is an ideal green line source for industrial alignment, machine vision, and automated marking tasks.
- Buy 2 for 157,99 $US each and save 1%
- Buy 5 for 155,99 $US each and save 3%
- Buy 10 for 153,99 $US each and save 4%
Industrial line light source projected TTL modulation 515nm green line laser alignment integrates a highly visible green light source, line optics, adjustable focus lens, and high speed TTL level control with an anodized aluminum alloy housing. It projects a fine, straight and bright green line onto workpiece surfaces, ideal for industrial alignment, automated production line and high tech.
Key features:
◆Middle wavelength of 532nm green DPSS laser tech enables clear visibility green light in brightly lit workshops, outdoors, or on reflective surfaces. Low beam divergence and TEM00 laser beam mode。
◆High speed TTL modulation supports 1Hz-1MHz level control, enables precise on/off and strobe control via external signals.
◆Qualified glass coated lens or Powell lens within 10°-110° fan angles with adjustable focus lens enables increasing brightness and fineness green line with sharp edges.
◆Built-in APC, ACC driving circuit board inside an aluminum alloy heat dissipating housing ensures constant green line output stably, minimal light intensity decay, vibration resistance.
Technical parameters:
| Item | TTL Modulation Green Line Laser Alignment |
| Wavelength (nm) | 515nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50°, 60°, 93°, 110° |
| Laser Class | IIIA, IIIB |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.0mmm |
| Beam divergence (mrad) | <4mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆Industrial processing and cutting: alignment of stone, woodworking, sheet metal, leather, and fabric cutting and sawing
◆Machine vision and automation: Line-scan camera illumination, profile extraction, 3D scanning
◆Measurement and inspection: layout for construction, bridges, and tracks; pipeline alignment.
◆Medical and scientific research: Invasive surgery, rehabilitation therapy, optical experiments
Note: TTL modulation 515nm green line laser up to 50mW generates thermal energy hurt to eyes seriously. Never look directly into the aperture and wear protective laser safety goggles for the 515nm wavelength during line alignment.
Attention: For high powered or OEM TTL modulated 515nm green laser modules, please contact us free at support@berlinlasers.com.
