TTL Modulation 520nm Green Dot Laser Alignment

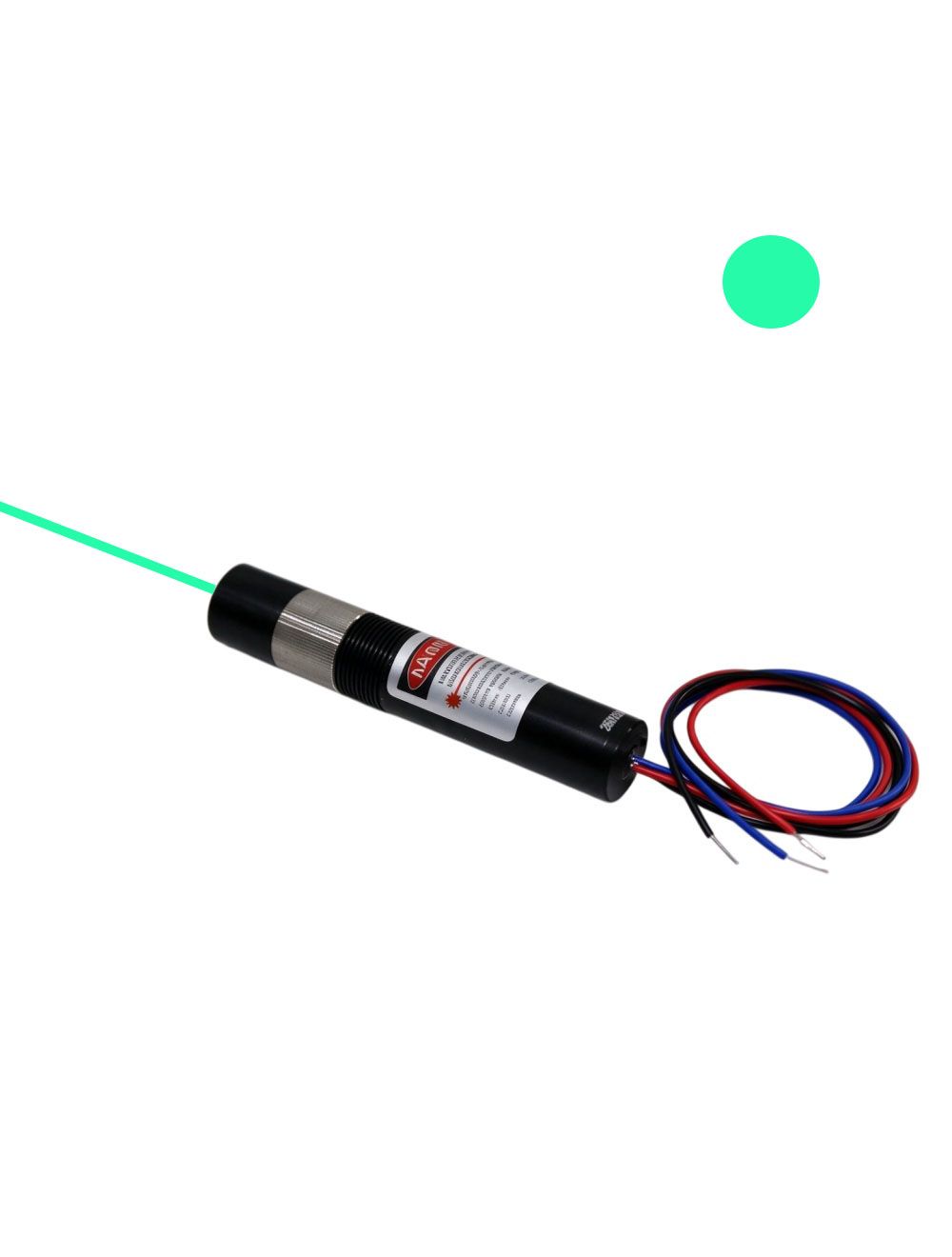

TTL modulation 520nm green dot laser alignment features TTL modulation and adjustable focus, enables high speed switching via external level signals to project a bright, compact size green reference dot. Combined with adjustable focus, it enables high visibility green light source emission and high precision dot measurement for industrial precise positioning, machine vision and automated marking.
- Buy 2 for 147,99 $US each and save 1%
- Buy 5 for 145,99 $US each and save 3%
- Buy 10 for 143,99 $US each and save 4%
TTL modulation 520nm green dot laser alignment utilizes a 520nm semiconductor green laser source and a qualified optic lens, outputs a circular dot with compact and high visibility. External TTL level control enables on/off switching or pulsed modulation. Cooperated with adjustable focus lens, it allows for high precision dot alignment for industrial precision dotting, alignment, and visual calibration.
Key features:
◆520nm green light emitting from a qualified glass coated lens and 520nm wavelength laser diode remains visible in workshop lighting or outdoor environments.
◆Excellent TTL high speed modulation power source supports 520nm green laser module with high/low level switching, 1Hz-1MHz modulation, enables easy on/off control of laser.
◆Adjustable focus lens enables a circular dot with low ellipticity that remains its shape over long distances, no light blur or dim.
◆Built-in APC driving circuit inside an anodized aluminum alloy housing tube outputs stable green light and green reference dot, bears thermal drift and vibration, ensuring minimal brightness or positional shift during prolonged operation.
Technical parameters:
| Item | TTL Modulation Green Dot Laser Alignment |
| Wavelength (nm) | 520nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <1.2mm |
| Beam divergence (mrad) | <1mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆Industrial positioning: CNC tool setting, laser dot marking, sawing or drilling
◆Machine vision: camera calibration, feature dot marking, AOI marking, 3D vision system
◆Automated production lines: sorting point, assembly alignment, robot end effector reference dot
◆Measurement and inspection
◆Scientific research and education: optical experiment alignment, laser scanning system, fluorescence excitation assistance, medical equipment
Note: Higher power TTL modulation 520nm green dot laser up to 50mW generates powerful light and thermal energy hurt to eyes. Please avoid eye exposure to green laser beam aperture at close distance. Do remember to wear 520nm wavelength protective laser safety goggles.
Attention: For high powered or OEM TTL modulated 520nm green laser modules, please contact us free at support@berlinlasers.com.
