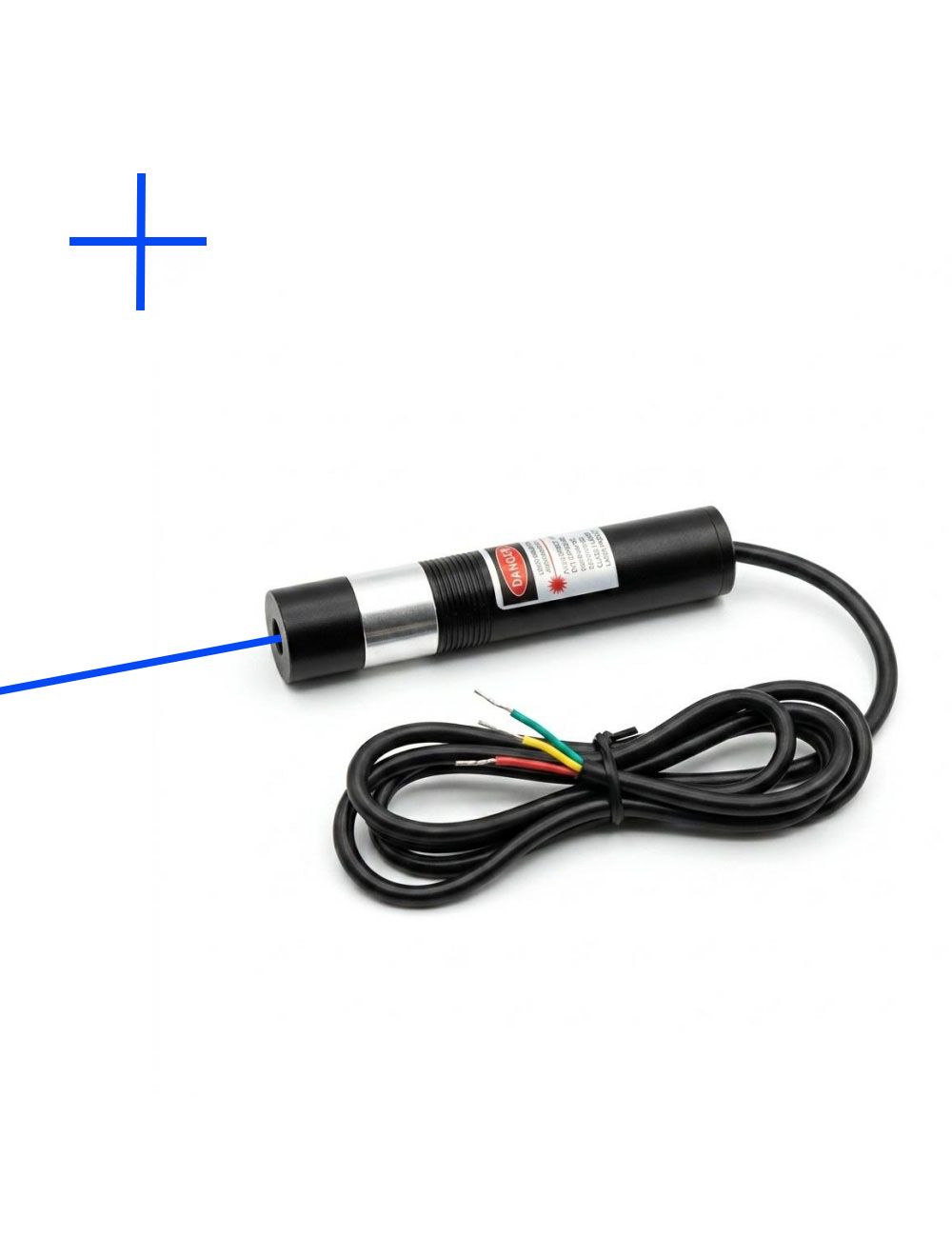

TTL Modulation Adjustable Focus 445nm Blue Cross Line Laser Module
TTL modulation adjustable focus 445nm blue cross line laser module features a qualified 445nm wavelength semiconductor laser diode, glass coated lens and adjustable focus optic lens, supported by TTL on/off modulation power source supply, enables precise cross line alignment of fine lines at close range and wide range calibration of thicker lines at distances. It is compatible with constant cross line measurements for industrial, medical and high-tech fields.
- Buy 2 for 120,99 $US each and save 2%
- Buy 5 for 118,99 $US each and save 3%
- Buy 10 for 116,99 $US each and save 5%
The TTL modulation adjustable focus 445nm blue cross line laser module offers high brightness, anti-reflective properties, and precise orthogonal alignment. It supports TTL on/off modulation for seamless positioning in automated equipment. Featured by clear visibility under strong workshop lighting, it provides high precision and high brightness cross line alignment, applicable for precision machining, tooling calibration, visual inspection, and alignment of lithium battery and medical components.
Key features:
◆ TTL modulation supports 0–100kHz square wave modulation (0V off / 5V, 9V, 12V on) for on/off switching, supporting constant blue vertical and horizontal lines generation, connected to PLCs, industrial control systems, and vision equipment for synchronized start/stop.
◆ 445nm semiconductor blue laser diode and glass coated lens with 10°, 15°, 110°fan angles assure bright blue light emission, reducing glare on highly reflective workpieces such as aluminum, copper, and titanium, providing better visibility than red light in bright workshops.
◆ Adjustable focus optic lens enables concentrated blue light emission, increasing brightness and fineness blue cross line generation for high lighting occasion and long working distance.
◆ Anodized aluminum alloy housing tube with metal heat sink cooling system and APC, ACC driving circuit board provides heat dissipation, over temperature and over current protection, ensuring consistent blue cross line shape even during extended operation.
Technical parameters:
| Item | TTL Modulation Blue Cross Line Laser Module |
| Wavelength (nm) | 445nm |
| Output power (mW) | 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIB, IV |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications: CNC machining centering, tooling and fixture calibration, 3C/lithium battery assembly alignment, medical parts processing and positioning, and machine vision reference calibration.
Note: Any operation of high power 445nm blue laser up to 50mW generates thermal energy which is harmful to human eye and skin. Do avoid eye exposure to beam aperture and wear laser safety goggles so as to assure secured cross line measurement.
Attention: For high powered or OEM 445nm TTL modulation blue cross line laser modules, please contact us free at support@berlinlasers.com.
