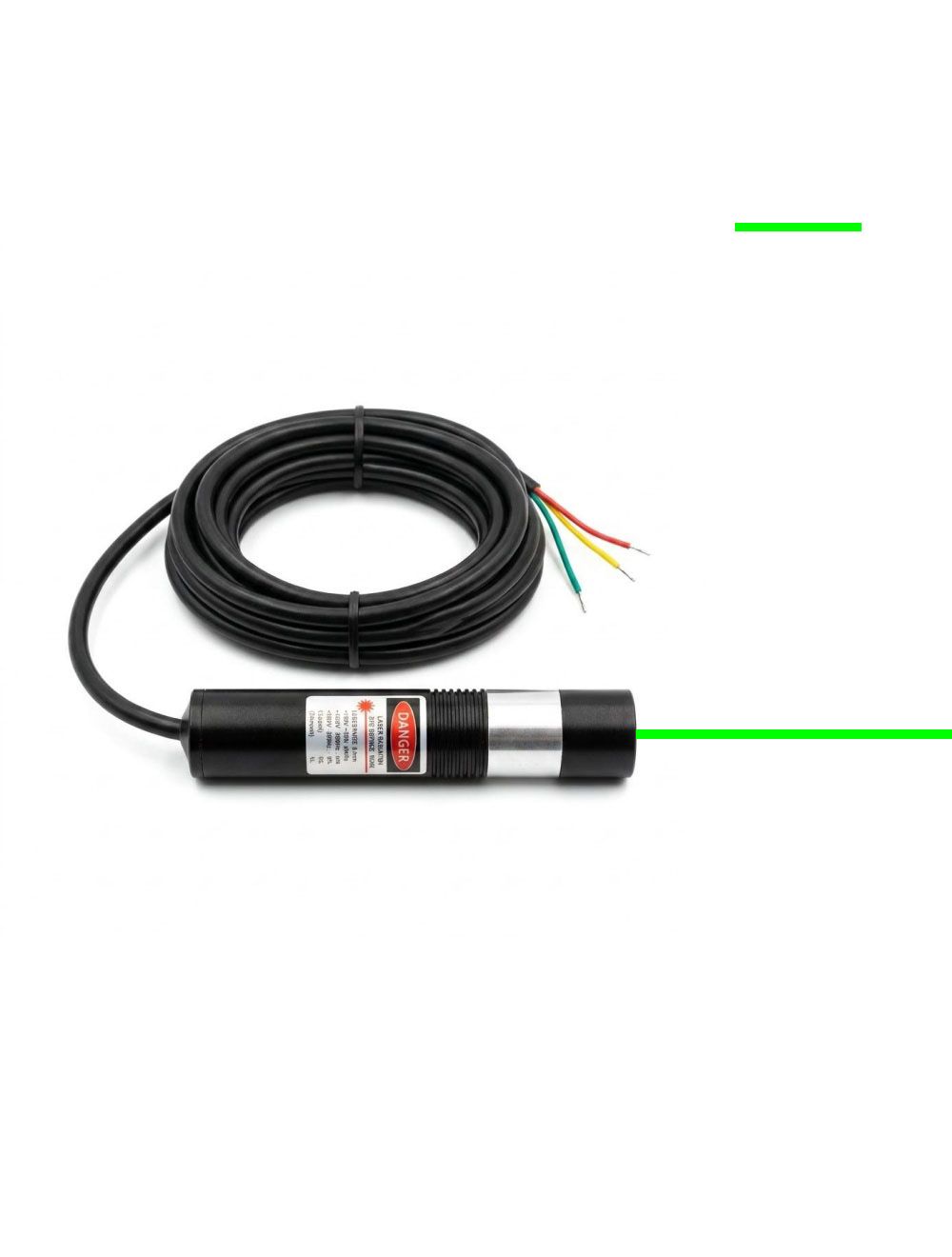

TTL Modulation Adjustable Focus 515nm Green Laser Line Generator
TTL modulation adjustable focus 515nm green laser line generator is a high performance line generating light source integrating digital control and optical focusing parts, specially designed for high precision industrial line positioning and alignment, automated triggering, precision machining assistance.
- Buy 2 for 157,99 $US each and save 1%
- Buy 5 for 155,99 $US each and save 3%
- Buy 10 for 152,99 $US each and save 4%
Industrial grade TTL modulation adjustable focus 515nm green laser line generator combines a qualified 515nm wavelength semiconductor laser diode, qualified optic lens, flexible focus adjustment, and high speed modulation. Coupled with TTL signal control, it projects a highly visible, straight and fine green reference line onto the worksurface. It maintains excellent visibility and contrast even under ambient light and long distance operating condition, which is an ideal light source for various high precision alignment and machine vision fields.
Key features:
◆515nm wavelength semiconductor laser diode assures ultra high visibility and high sensitivity green light emission, remains clearly visible in outdoor sunlight or under intense workshop lighting, enhancing operating efficiency and safety.
◆High-Speed TTL Modulation enables high speed switching and pulse modulation, suitable for machine vision strobe synchronization, dynamic detection triggering, and strobe applications
◆Continuous adjustable focus lens allows for continuous adjustment of the laser line thickness to achieve increasing accuracy and fineness line indication in distance.
◆Qualified glass coated lens within 10°to 110°fan angles enables high brightness, sharp edges and no speckle green reference line projection, meets the demands of high-precision industrial measurement.
◆Built-in APC, ACC driving circuit board and heat dissipation part inside an anodized aluminum alloy housing tube protects 515nm green laser module from overcurrent, overvoltage, ensures stable operation during continuous use or in environments with fluctuating temperatures.
Technical parameters:
| Item | TTL Modulation Green Laser Line Generator |
| Wavelength (nm) | 515nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 60°, 110° |
| Laser Class | IIIA, IIIB, IV |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.0mmm |
| Beam divergence (mrad) | <4mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation Method | TTL Modulation |
| Modulation frequency | 1Hz-1MHz |
| Operating voltage(v) | 3V to 12V |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D18.9mm×L110mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Applications:
◆Industrial Processing: Alignment lines for stone, wood, metal sheet cutting; guide lines for saws, cutting tables, and panel saws; welding path pre-visualization.
◆Machine Vision: Light sources for line-scan/area-scan cameras
Precision Manufacturing: Alignment for SMT placement machines, screen printing and pad printing.
◆Measurement & Surveying: Road surface flatness inspection; straightness measurement for bridges and buildings.
◆Automated Production Lines: Material centering on conveyors; alignment for packaging machinery; path guidance for robotic picking.
Note: The operation of 515nm green line laser up to 50mW generates thermal energy which is harmful to human eye and skin. Pls avoid eye exposure to the beam aperture and remember to wear proper laser safety glasses..
Attention: For high powered or OEM TTL modulated 515nm green line lasers, please contact us free at support@berlinlasers.com.
