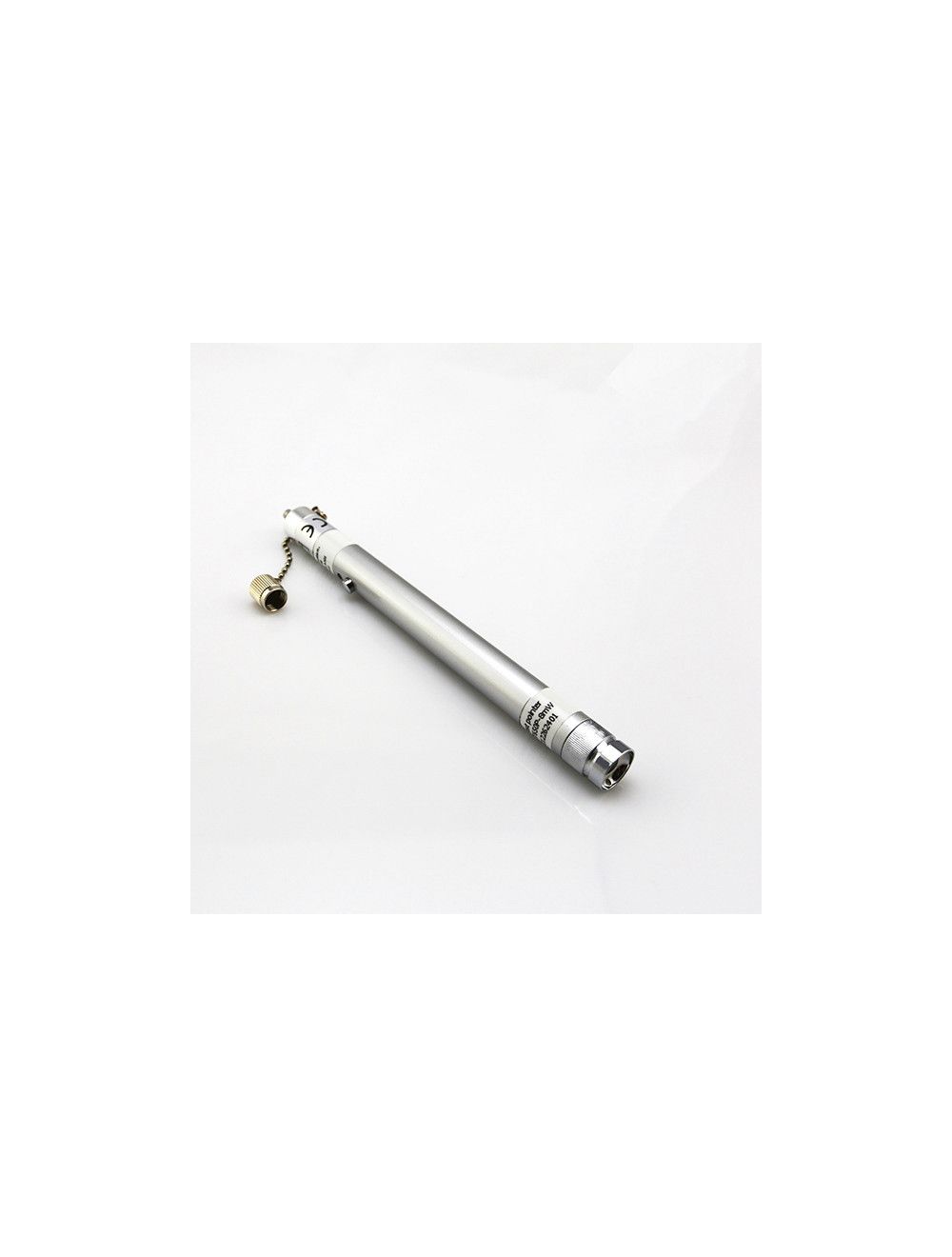

1mW Fiber Optic Detector

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $72.99

Special Price $65.99

  • Buy 3 for $63.00 each and save 5%
  • Buy 5 for $61.00 each and save 8%
  • Buy 10 for $58.00 each and save 13%

Quick Overview

The portable design 1mW fiber optic fault detector will making an efficient optical fiber inspection and tracing tool in fiber routing, optical network checking, fault indication and tracing during and after installation. Available with both CW and modulation modes, this durable aluminum material optical fault locator project a visible red laser light through fiber optic cables, making the most accurate fault or faults test and location for field personnel in work.

Details

The portable designed 1mW fiber optic visual fault detector emits 650nm visible red light, allowing you to make efficient tracing, routing, and locating the fault, breaks of optic fiber, cables, and online network etc. Powered by Alkaline battery, this red light source supported 1mW optical fault detector creates a bright glow around the faulty area and endures a long continuous working time of more than 40 hours.

Features of 1mW optical fiber locator:

Visible 650m red laser light to make accurate and easy location, tracking of breaks or faults of ST, SC, FC interfaces in long distance.
Alkaline battery power get a long endurance working time of up 40 hours.
Anti-collision aluminum material fiber tester is applicable for SM and MM cables with optional 2.5mm fiber optic connectors to 1.25mm adapter (optional).
High efficiency power circuit allows high stability laser output power.
Wide applications in various fiber test and locations such as end to end fiber identification of bend or breaks, OTDR dead zone fault location etc.

Technical parameters:

Model Fiber Optic Detector
Emitter LD
Wavelength 650±10nm
Output power 1mW
Transmission distance 1Km-3Km
Working mode CW & modulation
Modulation 1Hz,working cycle:60%
Connector 2.5mm universal connector
Power 2pcs AAA battery
Operating temperature -10ºC~+50ºC
Storage temperature -20ºC~+70ºC
Weight 120g
Length * Diameter (mm) 185mm*25mm
Working hours 30mw continuous work≥10h
Warranty Period One year

Maintenance:
1) The optical fault locator should be stored in good condition and keep the connector clean.
2) Never try to look directly into the VFL. The 650nm red laser is harmful to naked eyes.
3) Fix the battery correctly, and take battery out while no use of the detector.

Package included:
1 × Fiber Optic Visual Fault Locator
1 × Packing box
