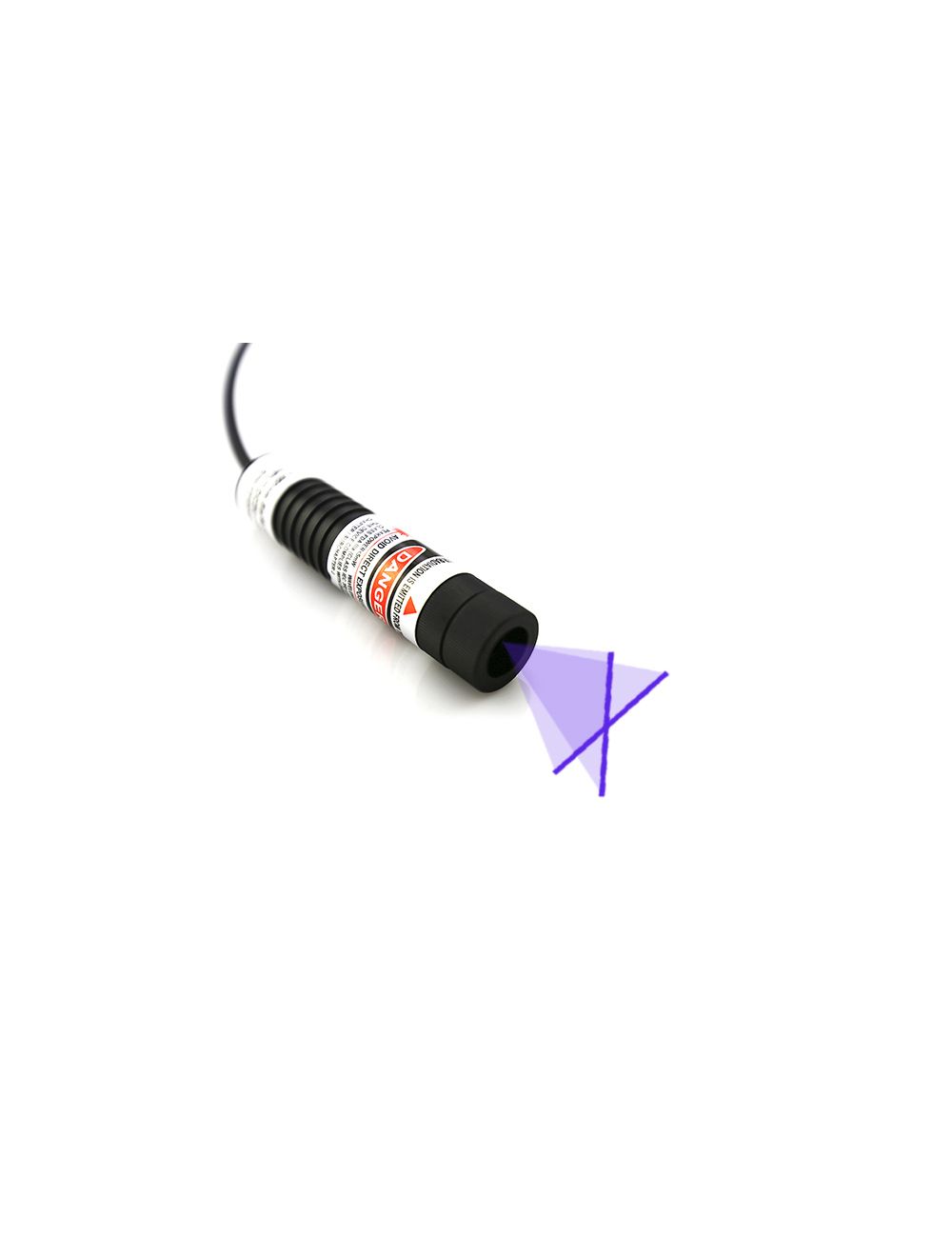

405nm Violet Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $105.99

Special Price $92.98

  • Buy 2 for $89.99 each and save 4%
  • Buy 5 for $86.99 each and save 7%
  • Buy 10 for $82.98 each and save 11%

Quick Overview

Available with longer wavelength than UV lasers, 405nm violet cross line laser module just fulfills the most special crosshair laser source providing for all kinds of industrial cross line alignment and positioning. This is a functional vertical and horizontal violet line projecting laser module makes great work for fluorescence sensing, spectroscopy, biomedical instruction and imaging. This direct 405nm violet laser diode manufactured cross line laser module always makes the most stable and reliable cross line alignment for all industrial fields.

* Required Fields

Details

405nm violet cross line laser module gets wide output power selection of 50mW, 80mW and 100mW, fulfills high level of accuracy and precision two perpendicular violet lines generating on desired working surfaces. It makes compact integration of 405nm violet laser diode, constant current electric driving circuit, metal heat sink, and glass cylindrical lens into the most durable aluminum housing laser tube. The metal housing manufactured violet crosshair laser module ensures high superiority of thermal conductivity, anti-interference, anti-statistic in 24 hours continuous cross line generation.

◆ DC power supply ensures its easy and convenient operation on industrial cross line alignment
405nm violet cross line laser module employs external power source, getting strong ability of anti-interference, high stability, restraining surge current and slow start. It keeps best protection of violet laser module in 24 hours continuous cross line alignment, assuring long serving lifetime of up 8,000 hours.

◆ Glass cylindrical lens gets high transmittance of violet cross line laser source
Violet cross line laser module selects wide selection of qualified glass lens with wide selection of laser fan angles of 10°, 15° and 110°, just generating both vertical and horizontal violet lines with different line length, thickness at different working distance.

Superior features:

High speed violet cross line laser generation with low time and power consumption
 Industrial designed crosshair laser module makes highly stable and reliable cross line continuously
 Wide selection of glass lens fan angles: 10°, 15° and 110°
 Wide range of output power: 50mW, 80mW, 100mW

Technical parameters:

Item Violet Cross Line Laser Module
Wavelength (nm) 405nm
Output power (mW) 50mW, 80mW, 100mW
Available Fan Angle(degrees) 10°, 15°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 2.8mrad
Beam mode (before optics) TE00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 405nm violet cross line laser module
2. DC input power Supply

Attention: For high powered or OEM 405nm violet crosshair laser modules, please contact us free at support@berlinlasers.com.
