Details

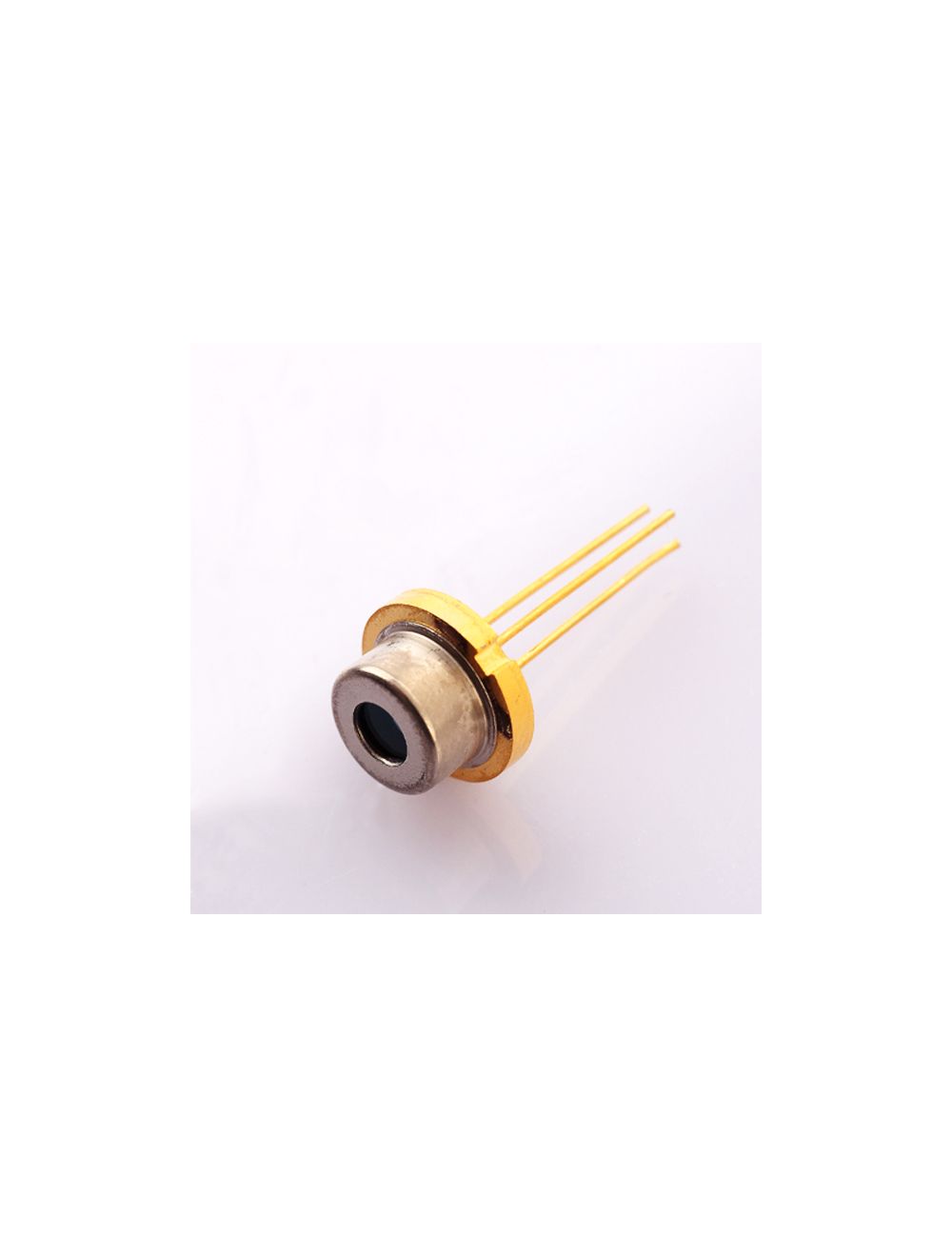

Universal used single mode violet laser diode with typical emission wavelength at 405nm. This intense beam 405nm violet laser diode provides high efficiency radiation source for CW operations.
Featured characteristics:
Single mode
Narrow line width within ±2nm~±5nm
Small emitting aperture
Low horizontal and vertical beam divergence
High brightness violet laser light emitting
Technical data (T=25℃):
| Specification | Unit | 405nm Violet Laser Didoe |
| LD output power(CW) | mW | 20mW, 50mW, 120mW, 150mW |
| Wavelength | nm | 405nm |
| Spectral width | nm | ±5nm |
| FWHM | nm | ＜5nm |
| Wavelength/temperature | nm/℃ | 0.3 |
| Operating temperature | A | 0.12~0.55A |
| Operating Voltage | V | 4~5V |
| Threshold current lth | A | 0.1A |
| Slope efficiency | 1.2 | |
| Package | TO-18 |
TO-18 Package Draw:
