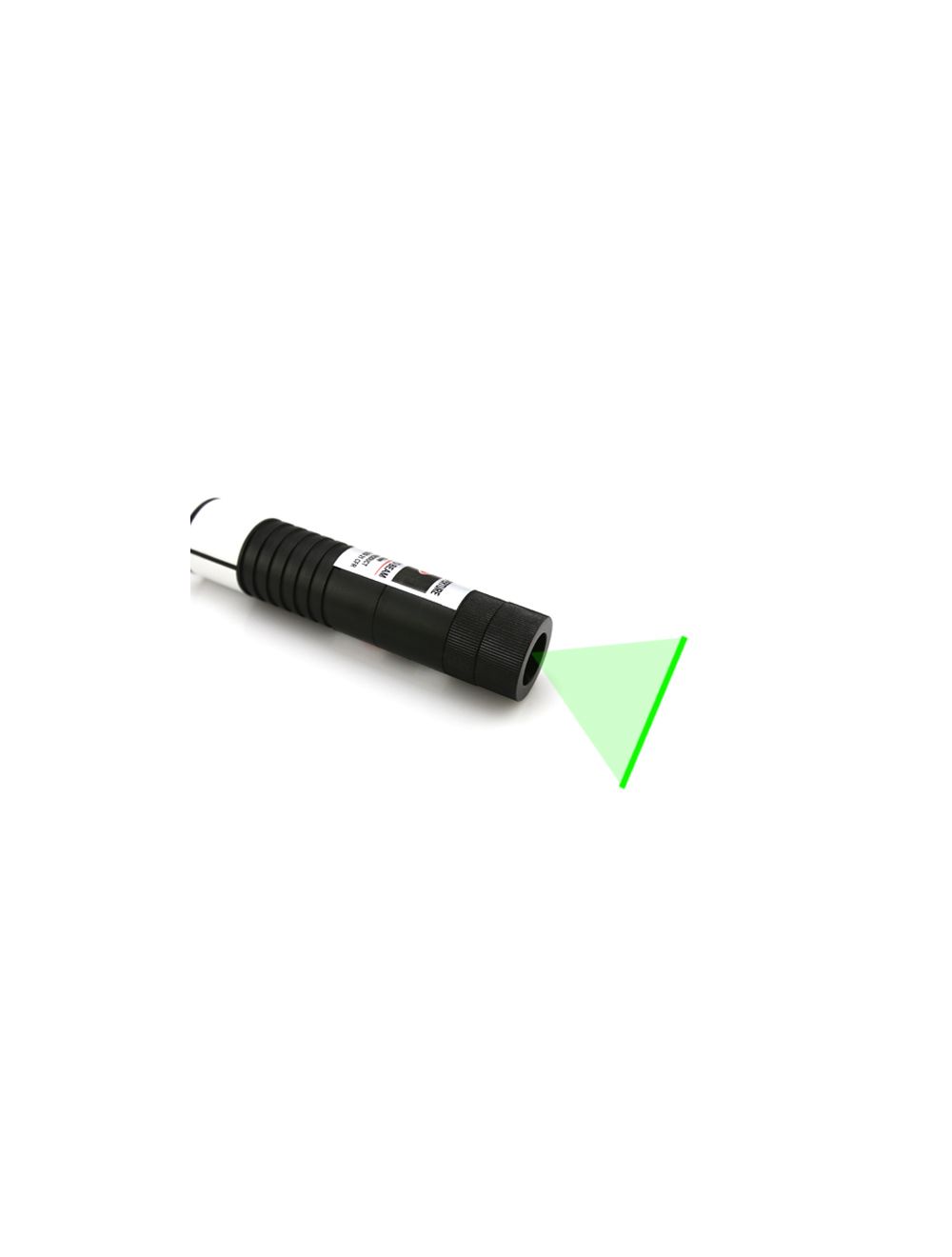

532nm Green Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.98

Special Price $91.99

  • Buy 2 for $89.99 each and save 3%
  • Buy 5 for $85.98 each and save 7%
  • Buy 10 for $81.99 each and save 11%

Quick Overview

532nm green line laser module selects genuine green DPSS laser with quality lens, integrated with constant current driving circuit and metal heat sink cooling system, projecting the brightest and the most visible green laser line source for various industrial line alignment, positioning, scientific research etc. Available with external DC input power supply, green laser line generator makes sure of the most stable and constant green laser line generation for all precise measurement.

* Required Fields

Details

Available with formal Gaussian distribution optic lens, 532nm green line laser module is providing users the highest level of accuracy and precision green laser line with comparatively affordable price. It adopts compact design, available with 16mm diameter laser tube, allows the easiest installation and operation for all occasions.

◆ Durable structure laser line module for accurate line generation.
532nm green laser line generator selects aircraft used aluminum housing material with anodized treatment, workable for all occasions and gets superiority of anti shocking, anti calibration, anti statistic, and thermal conductive. Green laser line is highly stable, reliable, no laser emitting blur or decay in constant laser line projecting.

◆ Gaussian distribution formal green laser line fulfills high accuracy line alignment and positioning.
Formal green laser line generator combines reasonable internal and external designs, making the best use of featured ability of sensitive green light emitting, generates the best green laser line for both room and outside laser line use.

◆ Efficient laser line targeting, applicable for industrial alignment, positioning and mass production.
Basing on noncontact and high speed green laser line targeting on desired working surfaces, 532nm green line laser diode module gains the most efficient line positioning for various precise machinery processing, car laser wheel alignment, textile printing and screening etc.

Key Features:

Precise and accurate green laser line source for alignment, positioning and other industrial laser use.
Intellectual feedback driving circuit allow constant power supply and protection of laser module
Stable and reliable laser line generator, long lifetime of up 8,000 hours
Wide range level Gaussian lens degrees: 10°, 20°, 30°, 45°, 60°, 110°
Wide laser power range: 5mW, 10mW, 20mW, 50mW, 80mW, 100mW.

Technical parameters:

Item Green Line Laser Module
Wavelength (nm) 532nm
Output power (mW) 5mW-100mW
Available Fan Angle(degrees) 10°, 20°, 30°, 45°, 60°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.0mm; At 2m distance: <2.0mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
Operating voltage(v)  5mW-30mW: DC=3.0V; 50mW-100mW: DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L91mm; 50-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:
Only trained people are allowed to operate 532nm green line laser module. People should adjust the green laser line to the best condition and operate under special alignment equipment.

Warning! Laser line module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Green line laser module
2. DC input power Supply

Attention: For high powered or OEM green laser diode modules, please contact us free at support@berlinlasers.com.
