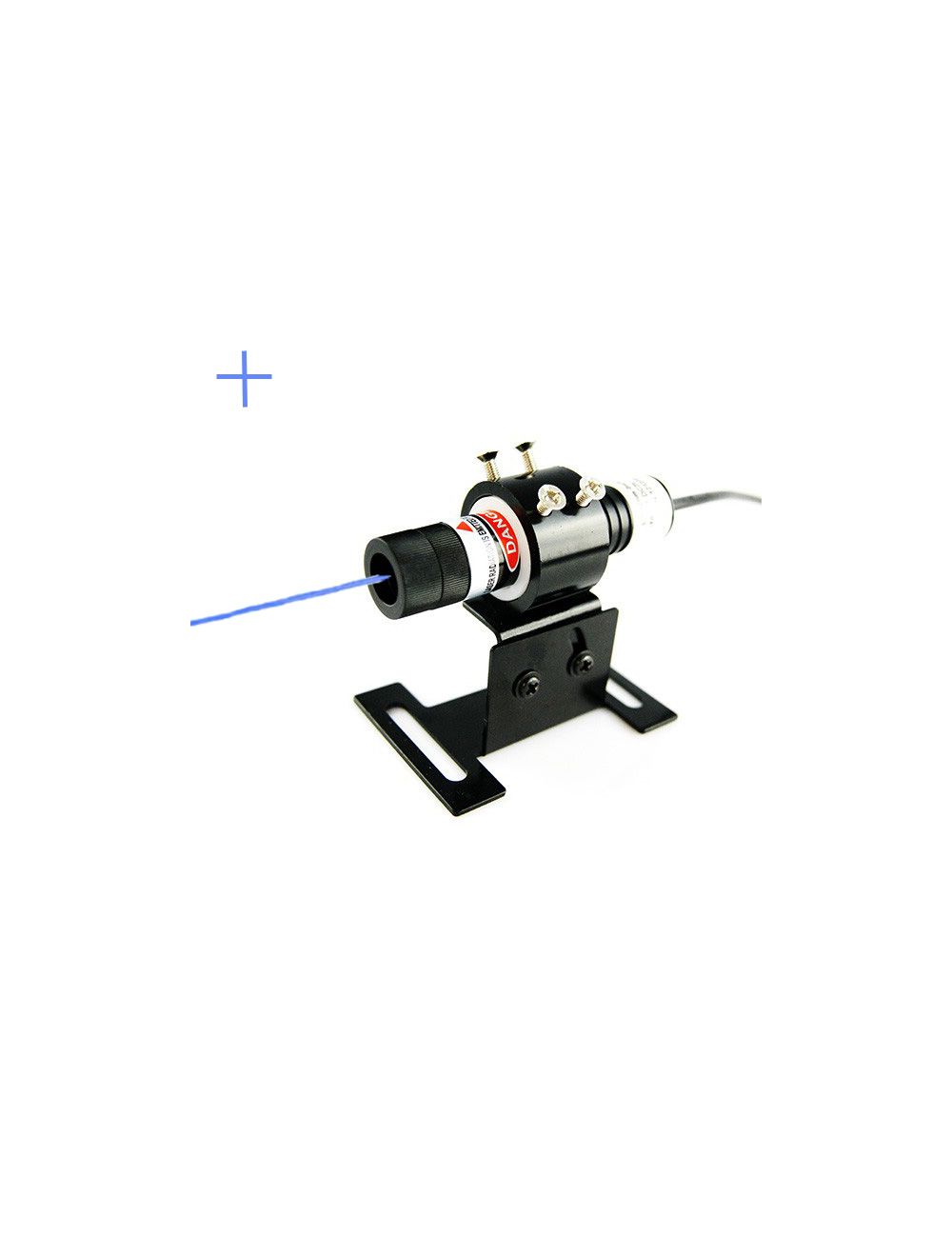

Blue Cross Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $189.98

Special Price $119.98

  • Buy 2 for $116.98 each and save 3%
  • Buy 5 for $112.98 each and save 6%
  • Buy 10 for $107.98 each and save 11%

Quick Overview

445nm blue cross laser alignment provides the most efficient cross measurement solution for occasions where two perpendicular lines targeting is required. It equips with intellectual feedback circuit board and finest quality 445nm blue laser diode, allowing the most stable and reliable cross generation in all targeting spaces.

* Required Fields

Details

Blue cross laser alignment adopts unique cross line projection from 445nm blue laser diode, allowing the most stable and reliable two perpendicular line generation in industrial spaces. It uses durable aluminum alloy body material, equipped with excellent quality electric circuit board and thermal stabilization system, allowing high quality cross projection in 24 hours continuous operation.

Intense 445nm blue laser beam allows qualified line projection brightly and accurately. Blue cross laser alignment adopts importing laser diode and intellectual feedback circuit board, enables the highest accuracy perpendicular line generation in all industrial fields.

Inner thermal control system allows stable cross projecting. Blue laser alignment uses metal heat sink cooling system, equipped with sharing proof test and wide temperature experiment, this 445nm laser alignment is workable in various cross projection, even harsh occasions.

Quality approval industrial alignment laser with multiple functions. By mounting it on required alignment machine or devices, this cross emitting laser alignment is workable for multiple occasions of building construction, decoration etc.

Technical parameters:

Item Blue Cross Laser Alignment
Wavelength (nm) 445nm
Output power (mW) 50-100mW
Available Fan Angle(degrees) 110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.5mm
Beam divergence (mrad) 3mrad
Beam mode (before optics) TEM
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L88mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:
Only trained or skilled people are allowed to operate 445nm blue cross laser alignment. Adjust the laser alignment to the correct direction and suitable dimension of blue light spot in order to make accurate dot alignment.

Laser radiation is harmful to human eyes. Never look directly into laser aperture or retina might be seriously hurt. Any exposure to laser beam at close distance can cause serious eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
