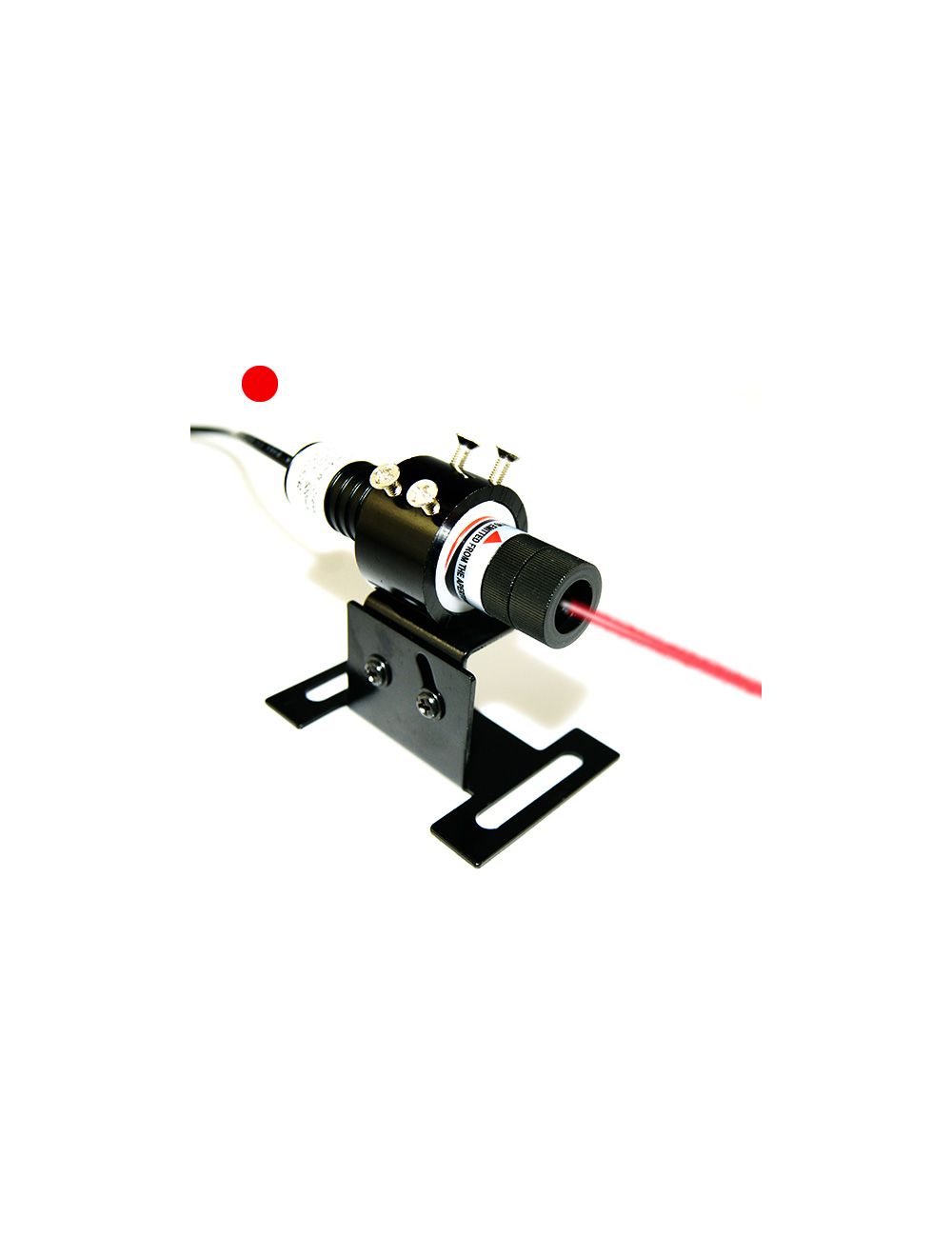

Economy Red Dot Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $75.98

Special Price $62.98

  • Buy 3 for $60.98 each and save 4%
  • Buy 5 for $58.98 each and save 7%
  • Buy 10 for $56.98 each and save 10%


  • Berlinlasers 650nm adjustable focus red dot laser 5mW-100mw technical datasheet
  • Quick Overview

    Not as bright as 635nm red laser, Economy 650nm red laser module project a rapid and accurate reference dot for alignment application. Employed by the finest 650nm red laser diode and high level body material, red dot projecting laser alignment provides high accuracy alignment in industrial alignment fields.

    * Required Fields


    Available in wide range output of 5mW to 100mW, economy red dot generating laser alignment allows a high accuracy and precision reference dot for industrial dot alignment applications. Red laser module brings great convenience in industrial alignment, medical and scientific applications.

    Features of 650nm industrial red laser alignment:

    Durable structure and perfect inner design. Red dot generating laser alignment integrates with the finest 650nm red laser diode, high level aircraft grade aluminum body material and inner circuit board, achieve accurate reference dot in alignment application.

    High stability and reliability. Operated on DC input power supply, 650nm red laser module allows 24 hours continuous dot projecting in work. Not as bright as 635nm red laser, it brings accurate and bright reference dot in high stability.

    Adjustable focus design with low beam divergence. This industrial alignment laser utilizes focus adjustable design to get ideal condition easily. The low beam divergence assures the red laser module always in best accuracy and precision result.

    Technical parameters:

    Item Economy Red Dot-Projecting Laser Alignment
    Wavelength (nm) 650nm
    Output power (mW) 5-100mW
    Laser Class IIIB
    Beam thickness at aperture (mm) 4.2mm×2.5mm
    Beam divergence (mrad) 5mrad
    Beam mode (before optics) TEM
    Focus adjustable? Yes
    Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
    Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
    Operating temperature(℃) 15℃~30℃
    Storage temperature(℃) -10℃~50℃
    Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
    Expected lifetime (hours) ≥5000 hours
    Warranty Period 180 days


    Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

    Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

    Power Supply:

    Input: AC 100-240V, 1.0A , 50/60Hz
    Output: DC 3V ,500mA
    Dimension: 70mm×46mm×27mm
    Length of AC input line: 116cm
    Length of DC output line: 126cm

    Packing List:
    1. Laser Alignment
    2. DC input power Supply

    Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
