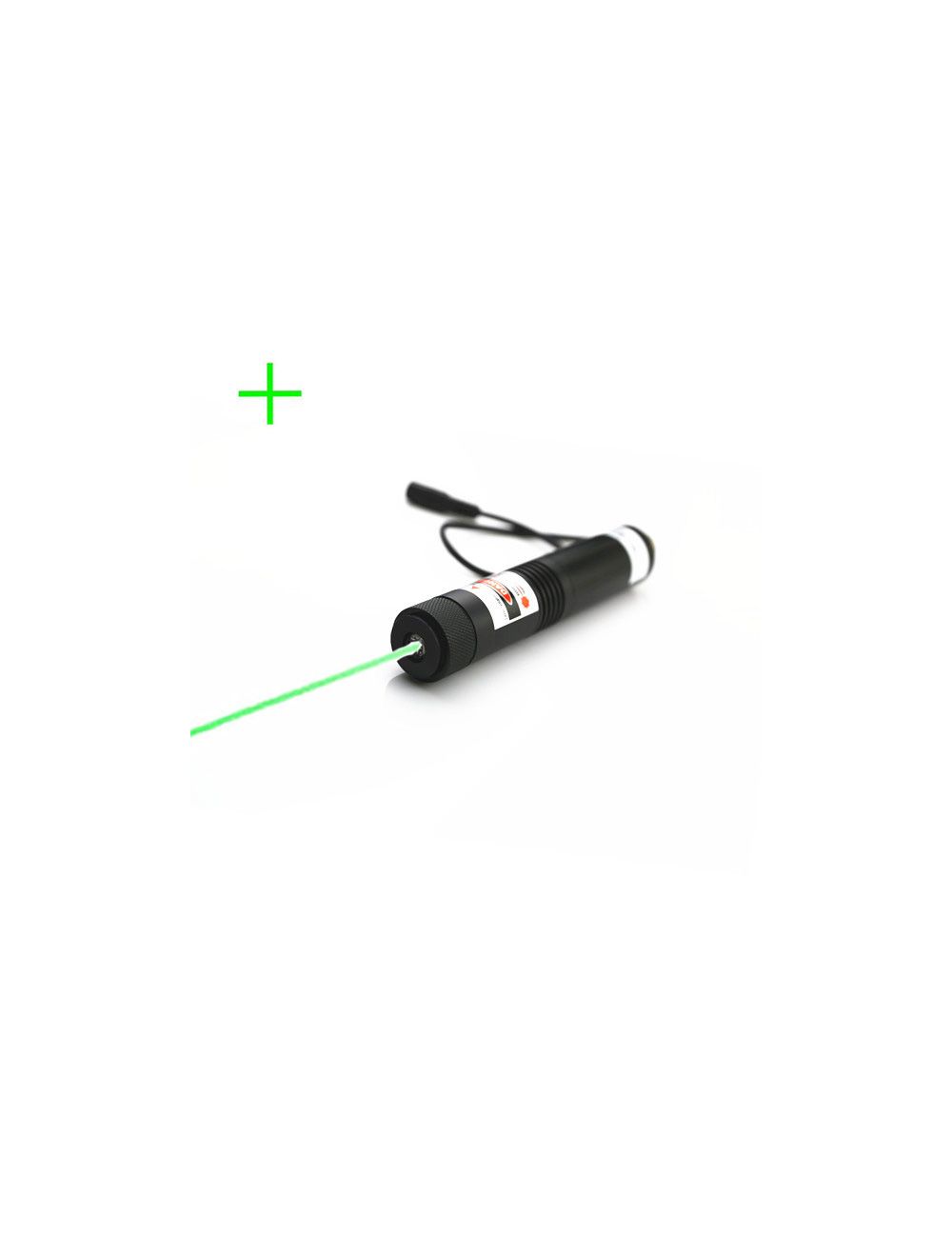

High Power 200mW Green Cross Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $389.99

Special Price $335.99

  • Buy 2 for $333.99 each and save 1%
  • Buy 5 for $331.99 each and save 2%
  • Buy 10 for $329.99 each and save 2%

Quick Overview

Employed by advanced 532nm green DPSS laser tech and excellent glass coated lens with different optic lens degree, high power 200mW green cross laser alignment is easily obtaining two perpendicular lines with accurate 90 degrees. This 532nm green laser module generates the most sensitive green laser light, cooperated with metal heat sink cooling system and thermal conductivity metal housing tube, it is providing the most accurate and stable green cross line aligning solutions for prominent colleges, university, institutes and labs etc.

* Required Fields

Details

High power 200mW green cross laser alignment solves the problems of high level of accuracy cross line generations in industrial and high tech cross line aligning work fields. Supported by external DC input power supply, it keeps constant output power supply and continuous green cross line generation under strong interference or strong static etc. This compact structure green laser module gets quite high power of 200mW, providing the most excellent green vertical and horizontal laser lines targeting for laser alignment for screen printing system, military targeting, laser medical treatment device, and heat transfer machine etc.

● Constant power supply green laser module with high beam stability and reliability.

High power 532nm green cross line laser employs 8.4V DC input power supply, accepting wide input electric current within 100V to 240V, applied for convenient and accurate cross line alignment for majority of country and regions on the earth. Electric wire bears high temperature, and assuring stable cross line alignment under harsh occasions effectively.

● Excellent thermal emitting system assures long term continuous cross line alignment.

532nm green cross laser alignment employs basic metal heat sink cooling system inside aircraft used aluminum alloy housing material, accepting wide operating temperature operation and superior nice thermal conductivity in use. Free cross line aligning assures up to 80% beam stability within 8 to 10 hours per day operation and excellent laser light cycling use after laser module tube cooling down.

● Strict tests and skilled users operation assure nice cross line aligning performance.

A series of strict tests, including alternative high and low temperature changing test, up to 24 hours aging preventing test, and rapid electric current adding test, high power 200mW green laser module gets superior stable cross line alignment under operation by skilled users or professionals.

Key features:

High output power of 200mW provides extremely bright and visible green cross line source generation for long distance and high lighting.
APC driving circuit board keeps intelligent feedback control of output power and electric current supply, making sure of free and constant cross line generation in long term use.
Qualified glass coated lens gets selectable optic lens degree of 10, 15 and 110 degree, generating 0.5 meter to 6 meters cross line length with high straightness and high linear quality.
CW modulation

Technical parameters:

Item High Power Green Cross Laser Alignment
Wavelength (nm) 532nm
Output power (mW) 200mW
Available Fan Angle(degrees) 10°,15°,110°
Laser Class IIIB
Beam thickness at aperture (mm) At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
TTL Modulation No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:

Only skilled users and professionals are allowing operation of high power 200mW green cross laser alignment. People should only adjust it to the best condition and operate under special alignment equipments.

Warning! 200mW green laser module emits intense green laser radiation and reflection that can be harmful to human eyes. Avoid eye exposure to laser aperture, and remember to wear proper 532nm wavelength preventing laser safety glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:

1. High Power 200mW Green Cross Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
