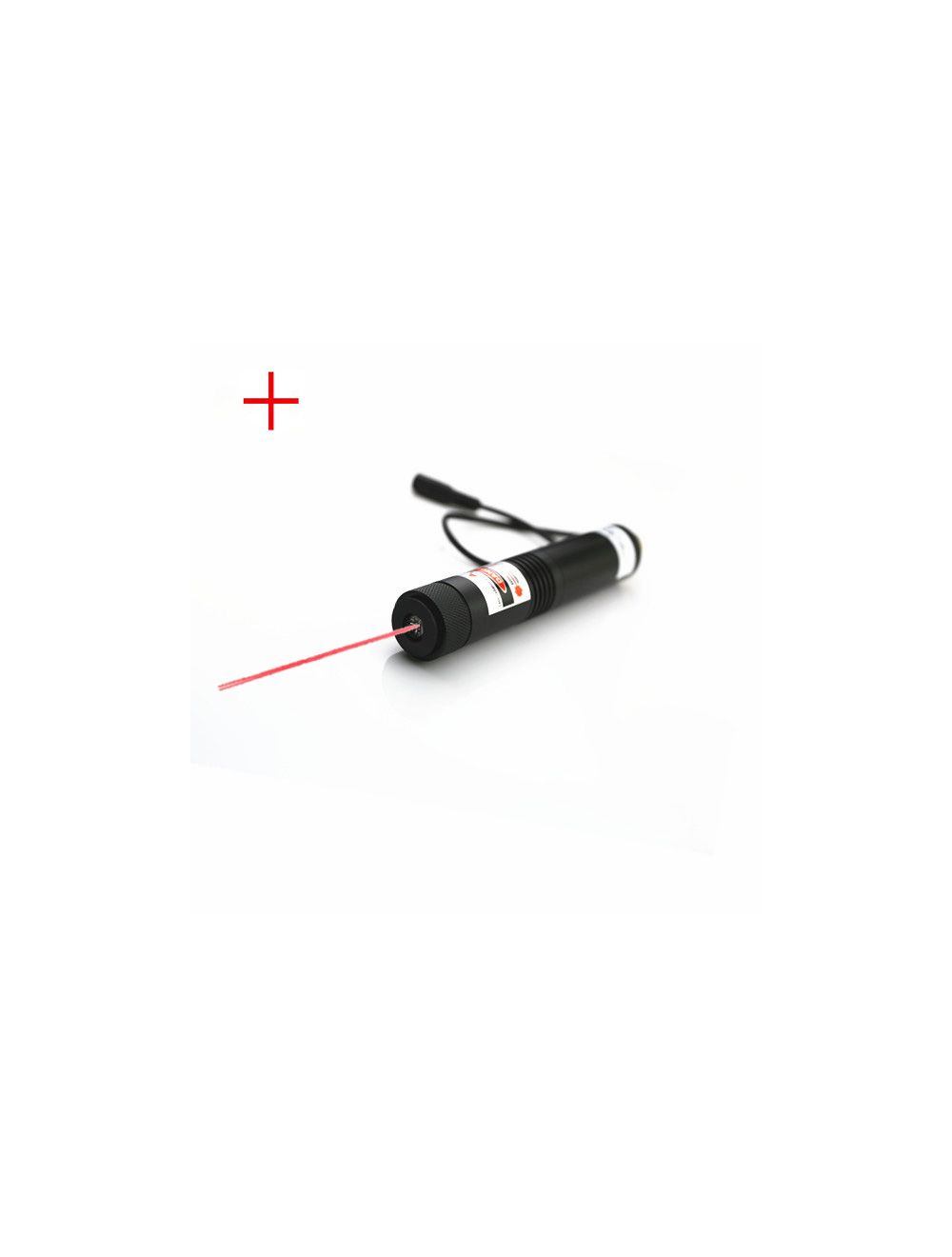

High Power Pro Red Cross Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $359.99

Special Price $329.99

  • Buy 3 for $327.99 each and save 1%
  • Buy 5 for $325.99 each and save 2%
  • Buy 10 for $323.99 each and save 2%

Quick Overview

Employed by high power 635nm red laser diode within 150mW to 500mW, and excellent equipment of thermal emitting system and glass coated lens, high power pro red cross laser alignment is generating quite complex 90 degrees two perpendicular red lines at quite long distance and high lighting occasions easily. This diode emission 635nm red laser module generates high purity and high brightness red laser light, fulfilling the need of the highest level of accuracy cross line source generation for prominent colleges, lab, institutes etc.

* Required Fields

Details

Cooperated with import 635nm red laser diode with copper material core part with high duration aircraft used aluminum alloy housing, high power pro red cross laser alignment obtains superior thermal conductivity and stable cross line projecting performance under various working environments. Available with selected optic lens degree made glass coated lens, pure light emitting 635nm red laser module generates high intensity red laser beam and high linear quality red vertical and horizontal laser lines for majority industrial cross line alignments, high tech use of laser alignment for screen printing system, military targeting, laser medical treatment, heat transfer machine, spectroscopy, holography, fluorescence excitation, microscopy and diagnostic imaging, and DNA sequencing and analysis etc.

● Improving beam stability 635nm red laser module used for longer term cross line alignment.
Being manufactured with import 635nm red laser diode, extra larger space reserving metal heat sink cooling system and external DC input power supply, high power pro red laser alignment gets improving laser beam stability at least 40% under cross line alignment by skilled users or professionals. Within daily operating time of 8 to 10 hours, it maintains excellent laser light cycling use and up to 80% laser beam stability in long term work.

● Constant power supply assures continuous cross line alignment under various working environments.
Supported by external DC input power supply, high power 635nm red laser module accepts wide range electric current input within 100V to 240V, converting into 9V output power. Extending wire is featured by high temperature resistance and corrosion resistance, ensuring stable and reliable red cross laser line source generation under strong interference or strong static etc.

● Durable and compact structure made pro red cross laser alignments enables easy installation and operation.
High power 635nm red laser module employs qualified aircraft used aluminum alloy housing material, and special varnish and oxygenized surface treatment, bearing wide range operating temperature and various harsh occasions, including serious mechanical shocking, calibration or moving. Correct output power and optic lens degree made red cross line laser gains easy installation and no mistake cross line alignment excellently.

● APC, ACC electric driving circuit protects red laser module from intense current impacting efficiently.
High power red cross line laser generates serious powerful laser light during constant cross line aligning operation. APC, ACC driving circuit design makes sure of perfect protection of laser module tube from rapid temperature increasing and serious electric current impacting, gaining the most stable red two perpendicular lines generation in long term use.

Technical parameters:

Item High Power Pro Red Cross Laser Alignment
Wavelength(nm) 635nm
Output power(mW) 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angel (degrees) 10°, 15°, 110°
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? No
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

Only skilled users or professionals are allowed to operate high power pro red cross laser alignment. Under special alignment equipment and proper adjustment of red cross line thickness and cross line projecting direction, it can make sure of no mistake cross line measurement correctly.

Warning! Seriously intense and powerful red laser light and thermal energy from laser beam aperture might cause serious hazards to human eyes and skins. Avoid any exposure to any red laser radiation and reflection, and do remember to wear proper 635nm wavelength preventing laser safety goggles in cross line alignment use.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Pro Red Cross Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM pro red cross line projecting projecting alignment lasers, please contact us free at support@berlinlasers.com.
