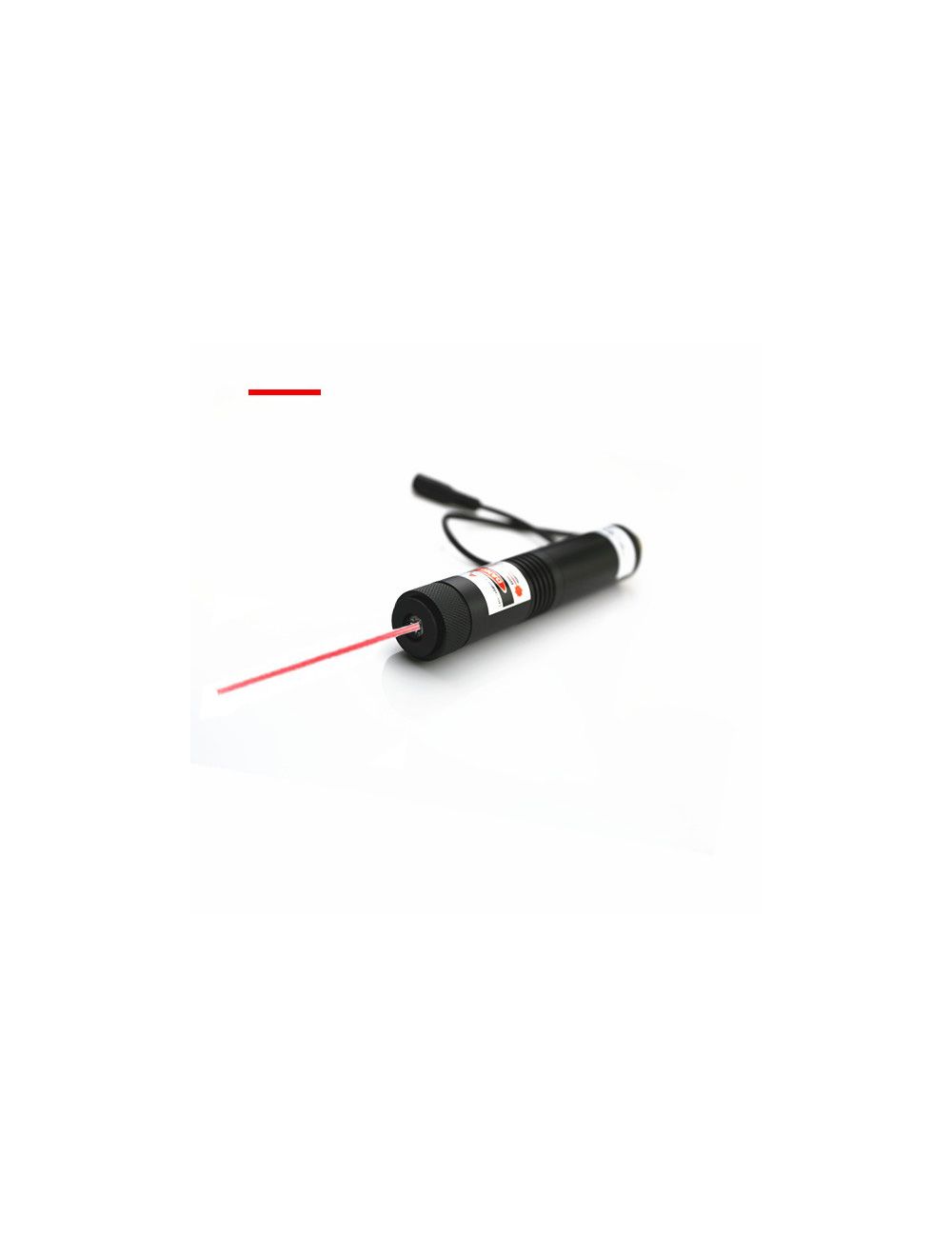

High Power Pro Red Line Laser Alignment
Employed by shorter wavelength than formal 650nm red lasers, pro red line laser alignment gets the purest and the brightest red reference line from 635nm red laser diode. The exploration of import 635nm red laser diode and excellent glass coated lens or separate crystal lens assure the clearest and the most accurate red reference line projection at quite long work distance and high lighting occasion. This high power 635nm red laser module just provides the best and the most competitive price red reference line source for lab experiment, institutes, prominent colleges and university etc.
- Buy 3 for $317.99 each and save 1%
- Buy 5 for $315.99 each and save 1%
- Buy 10 for $313.99 each and save 2%
In serious need of super accurate and rapid line targeting in distance or high lighting? High power pro red line laser alignment gets excellent use of import 635nm red laser diode, metal heat sink cooling system and APC driving circuit part inside durable aircraft used aluminum alloy housing tube, assuring constant and high stability red reference line targeting in long term use. High power 635nm red laser modules with correct selections of output power and optic lens enables the most convenient and accurate red line source supply for industrial laser line use including textile garment processing, sand mill, laser cutting machine, and high tech use of spectroscopy, holography, fluorescence excitation, microscopy and diagnostic imaging, and DNA sequencing and analysis etc.
● High power 635nm red laser modules within 150mW to 500mW obtain clear line alignment in distance.
The adoption of import 635nm red laser diode and metal heat sink cooling make sure of improving laser beam stability in continuous work. Within 8 to 10 hours daily operating time, red laser line alignment maintains less than 5% by skilled users or professionals.
● Excellent optic lens assures the clearest line alignment in all occasions.
Combined with glass coated lens or separate crystal lens, high power pro red line laser alignment gets selectable optic lens degree within 10 degree to 110 degree, enables high linear quality and high straightness red reference line targeting in use. Strict tests including super rapid electric current adding test and up to 24 hours aging preventing test protect 650nm red laser module from laser light decay or blur in long term line alignment.
● Focused beam laser line module gets the most satisfied line alignment constantly.
High power 635nm red laser module gets focused beam, after simple roast of laser beam aperture, red laser line thickness can be freely adjusted until getting the best line instruction in distance. Either Gaussian or Non Gaussian beam distributed red laser line assures no mistake line alignment efficiently.
● APC, ACC driving circuit assures the most stable line alignment.
Specially designed with APC, ACC driving circuit, high power red laser module prevents electric current impacting efficiently and makes full control of rapid temperature increasing of laser tube. It reduces possibility of 635nm red laser diode and electric driving circuit burning out or damage, and extends serving lifetime perfectly.
Technical Parameter:
| Item | High Power Pro Red Line laser alignment |
| Wavelength (nm) | 635nm |
| Output power (mW) | 150mW, 200mW, 300mW, 400mW, 500mW |
| Available Fan Angle (degree) | 10°- 110° |
| Beam divergence (mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | No |
| Operating voltage(v) | DC＝9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D26mm×L150mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Note:
High power pro red line laser alignment allows operation by skilled users or professionals. Under special alignment equipment, and proper adjustment of red laser line thickness and line targeting direction, it can get no mistake line alignment easily.
Warning! Intense and powerful red laser beam and thermal energy might be seriously harmful to human eyes. Avoid any red laser radiation and laser reflection exposure at close distance. Never stare at powerful light at laser beam aperture, and do remember to wear 635nm wavelength preventing laser safety goggles in line alignment use.
Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm
Packing List:
1. High Power Pro Red Line Laser Alignment
2. DC input power Supply
Attention: For high powered or OEM pro red laser line projecting alignment lasers, please contact us free at support@berlinlasers.com.
