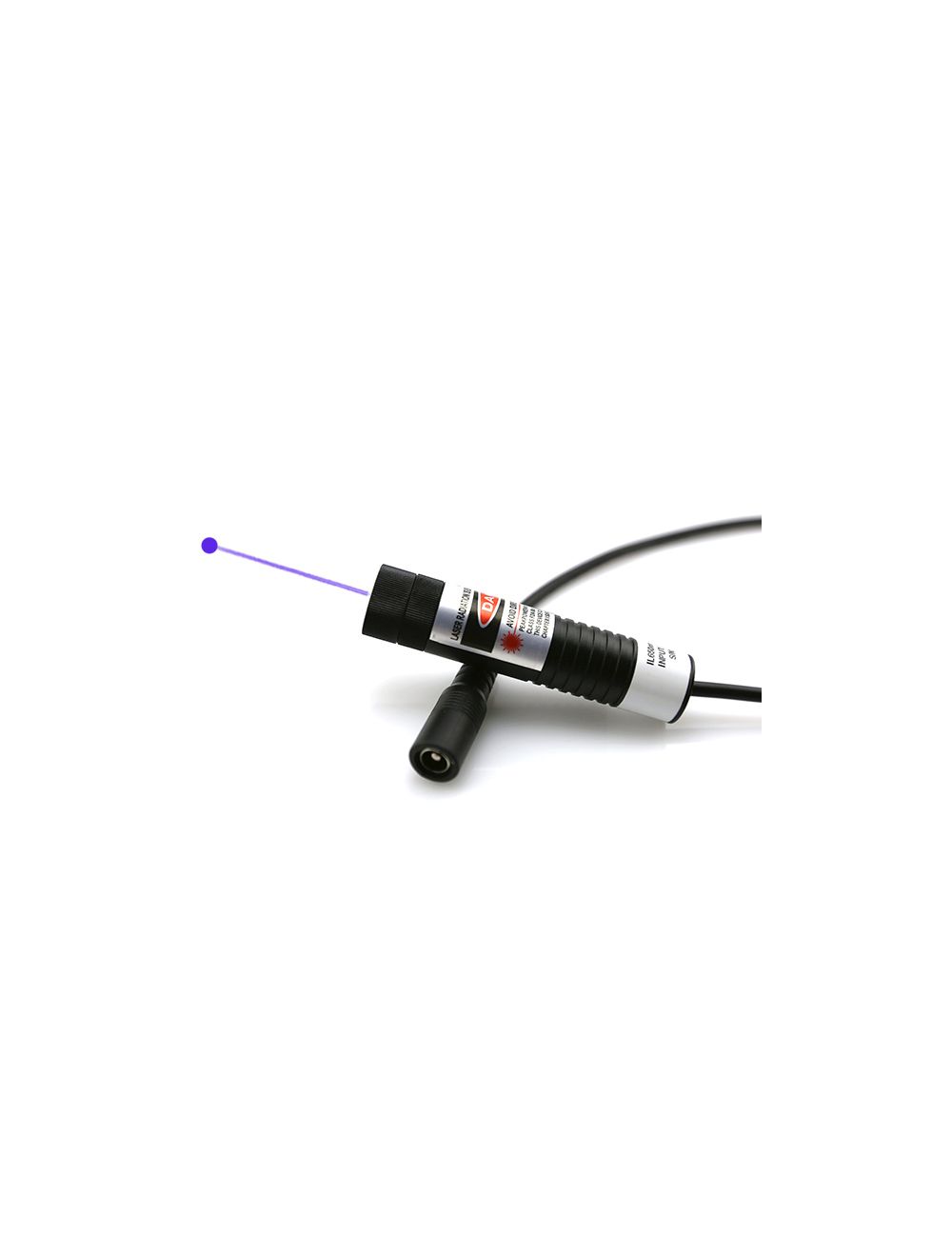

405nm Violet Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $135.99

Special Price $98.99

  • Buy 2 for $96.99 each and save 3%
  • Buy 5 for $94.99 each and save 5%
  • Buy 10 for $92.99 each and save 7%

Quick Overview

405nm violet laser modules from Berlin lasers combine the genuine quality 405nm violet laser diode with qualified cylindrical lens, constant current electric circuit board, and the most efficient thermal stabilization system, integrated into qualified violet laser source applicable for various industrial and high tech applications. 405nm blue laser diode module gets superiority of excellent performance, fast violet dot projection, power and time saving.

* Required Fields

Details

Generating violet laser source directly from 405nm violet laser diode, genuine quality 405nm violet laser modules allow the brightest violet laser beam with perfect collimation and alignment. Employed by the most durable aircraft used aluminum housing material, violet laser module obtains superior advantages of thermal conductivity, protection from shocking, vibration.

Integrated all parts in compact size, 405nm violet laser module is available with only 16mm diameter laser tube. Less power consumption and rapid violet laser source targeting, laser modules generate less heat and gain long lifetime in continuous violet laser beam pointing.

Outside DC input power supply enables continuous violet laser source supply. Focusable 405nm violet laser diode module provides the best violet laser sources for medical technology, biomedical instrument, spectroscopy, laser fluorescence, and industrial laser use etc.

Superior features:

Ultra Compact design of 16mm diameter laser tube
Wide Output power level of 50mW ~ 80mW
High speed and high reliability. Violet laser module power keeps stable over 8 hours continuous violet laser dot projecting.
Constant power and current electric circuit board
Focus adjustable lens allows accurate violet laser dot alignment
CW modulation

Technical parameters:

Item Violet Laser Diode Module
Wavelength (nm) 405nm
Output power (mW) 50mW, 80mW, 100mW
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 2.8mrad
Beam mode (before optics) TE00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 405nm violet laser module
2. DC input power Supply

Attention: For high powered or OEM 405nm violet laser modules, please contact us free at support@berlinlasers.com.
