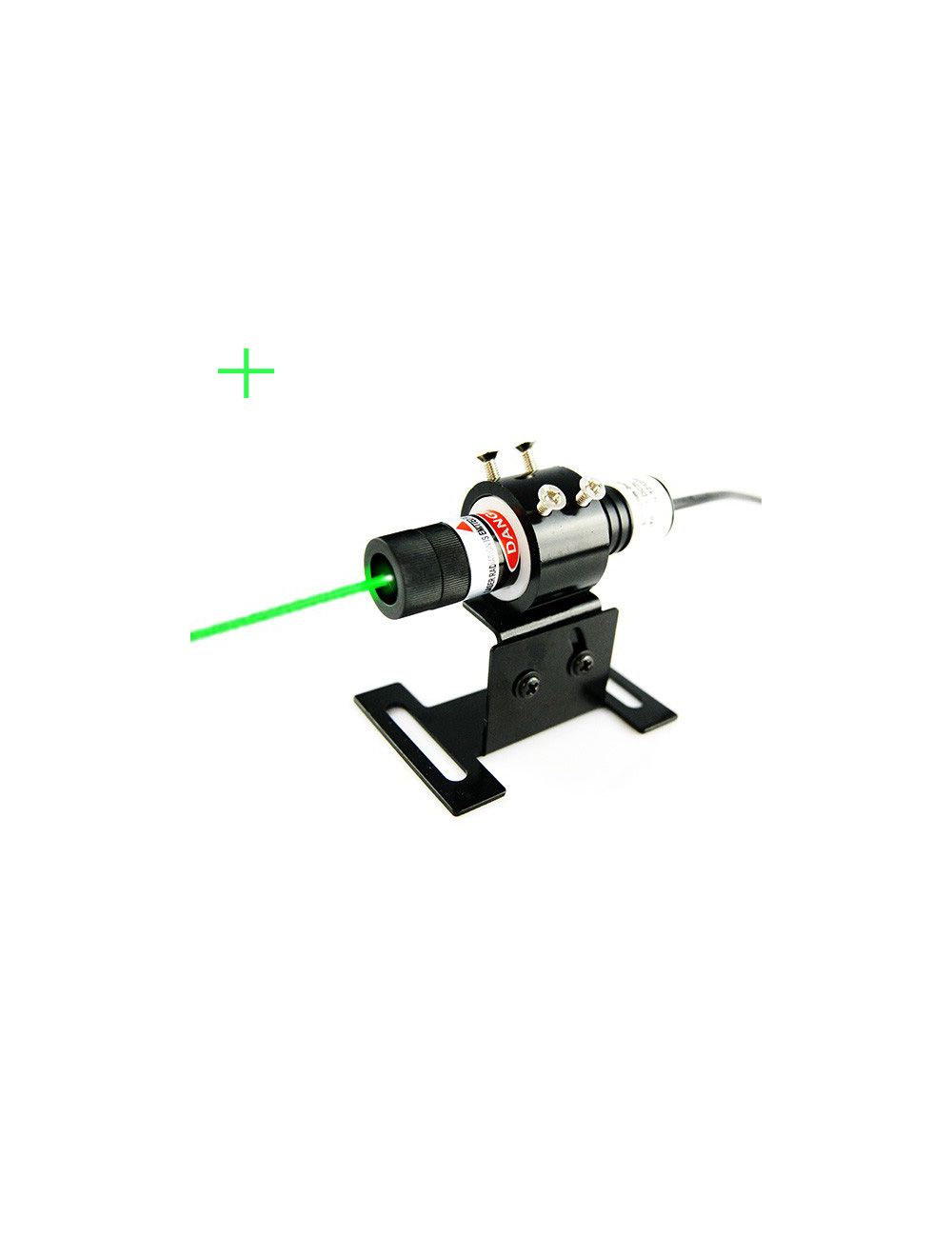

515nm Forest Green Cross Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.99

Special Price $129.98

  • Buy 3 for $126.99 each and save 3%
  • Buy 5 for $123.99 each and save 5%
  • Buy 10 for $120.99 each and save 7%

Quick Overview

Available with selectable lens degree of 10, 15 and 110 degree from glass cylindrical lens, 515nm forest green cross laser alignment can easily get high linear quality two perpendicular lines projection with accurate 90 degrees with different cross line dimensions. This 515nm green laser module employs compact and durable structure design, allowing the easiest installation and operation in all industrial and high tech applied cross line alignment fields effectively.

* Required Fields

Details

515nm forest green cross laser alignment integrates import 515nm green laser diode, qualified complex cross line emitting glass coated lens, cooling system and APC, ACC driving circuit into quite compact 16mm and 26mm diameter laser module tubes, forming into highly straight vertical and horizontal green laser lines on desired working surfaces. This direct diode emission cross line laser module is widely applied for laser medical technology, lab experience, industrial cross line alignment, and other high tech work fields etc.

Key features:
● Durable anodized aluminum housing enables stable cross line projection. 515nm forest green cross laser alignment employs durable metal housing and copper material 515nm green laser diode as core part to get efficient thermal conductivity, making sure of highly stable and reliable cross line alignment in all harsh occasion.

● High energy consumption needs higher operating voltage DC power supply. 515nm green laser module gets 5mW to 50mW output power, supported by 3V and 8.4V DC power source to get bright and visible cross line source. This cross laser alignment bears strong interference, static electricity.

● Adjustable focus enables even more accurate cross line alignment result. Users only need to make simple screw of laser beam aperture, 515nm green cross laser alignment gets free adjustment of cross line thickness to achieve high precision cross line measurement. The glass window of beam aperture maintains reliable performance from various moisture occasion and improves cycling use of green laser light.

Technical data:

Item Forest Green Cross Laser Alignment
Wavelength (nm) 515nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW
Available Fan Angle(degrees) 10°, 15°, 110°
Laser Class IIIa, IIIB
Beam thickness at aperture (mm) <2.8mm; At 2m distance: <2.0mm
Beam divergence (mrad) <4
Beam mode (before optics) TEM00
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW: DC=3V, 30mw-50mW:DC=8.4V
Operating current (mA)  5mW-10mW:DC=3.0V; 20mW-50mW:DC=8.4V
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-10mW: D16mm×L71mm;20mW-50mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:
Only trained people are allowed to operate 515nm forest green cross laser alignment. People should adjust 515nm green laser module to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to green laser beam at close distance can cause eye damage. Do remember to wear laser safety goggles while green laser module gets output power of up 30mW.

Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 515nm forest green cross laser alignment
2. DC input power Supply
Attention: For high powered or OEM 515nm forest green cross laser alignment, please contact us free at support@berlinlasers.com.
