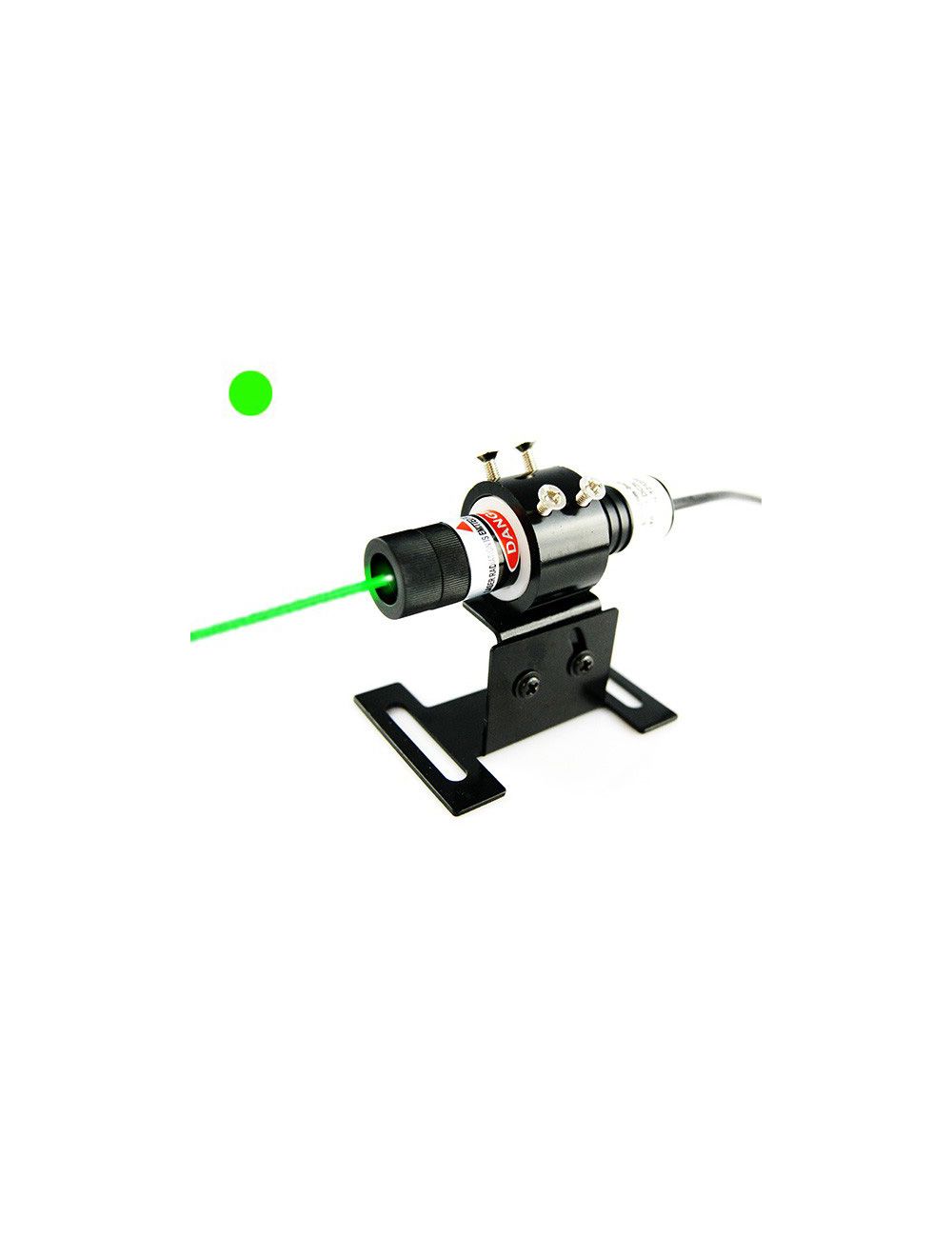

515nm Forest Green Dot Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $169.89

Special Price $149.99

  • Buy 3 for $146.99 each and save 3%
  • Buy 5 for $143.99 each and save 5%
  • Buy 10 for $140.99 each and save 7%

Quick Overview

515nm forest green dot laser alignment gets shorter wavelength than 532nm green DPSS laser system, while still effective enough to generates highly bright and visible green laser dot emission for all kinds of high tech and industrial laser use fields. This 515nm green laser module gets direct green laser beam from 515nm green laser diode, generating highly stable green reference dot source with high level of accuracy and precision in use.

* Required Fields


The direct diode emission 515nm forest green dot laser alignment combines import 515nm green laser diode, qualified glass coated lens, ACC electric driving circuit and metal heat sink cooling system into quite compact and durable aircraft used aluminum alloy housing. This green laser module bears wide range operating temperature, making sure of the most reliable and rapid green laser dot projection performance for all working environments efficiently.

Key features:

● Direct diode emission makes sure of reliable dot alignment. 515nm green laser module gets direct green light spot positioning from 515nm green laser diode, assuring high laser beam transmittance and high stability green laser dot projection more than 8 hours.

● External electric power source supply enables continuous work in all occasions. 515nm green dot laser alignment employs external 3V and 8.4V DC input power supply, supporting the highest output power of 50mW and reliable green laser dot alignment under all occasions, including strong interference and static electricity etc.

● APC, ACC electric driving circuit gets constant output power supply. 515nm green laser alignment adopts highest level of configuration from APC, ACC electric driving circuit, providing green laser module constant output power and electric current supply from intelligent feedback system. It enables long term reliable dot alignment performance and more than 8000 hours serving lifetime.

● Wide applications for industrial use and high tech work fields. This forest green dot laser alignment tool gets wide applications for laser marking machine, laser engraving, textile garment processing, drilling and high tech experiment etc. It is widely used by those of large scale raw material processing factory, prominent university, institute and research center etc.

Technical data:

Item Forest Green Dot Laser Alignment
Wavelength (nm) 515nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <1.2mm
Beam divergence (mrad) <1mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-20mW: DC=3V, 30mw-50mW:DC=8.4V
Operating current(mA) 5-20mW: I<500mA;30-50mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW:D16mm×L71mm,30mw-50mW:D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 515nm forest green dot laser alignment
2. DC input power Supply

Attention: For high powered or OEM 515nm forest green dot laser alignment, please contact us free at support@berlinlasers.com.
