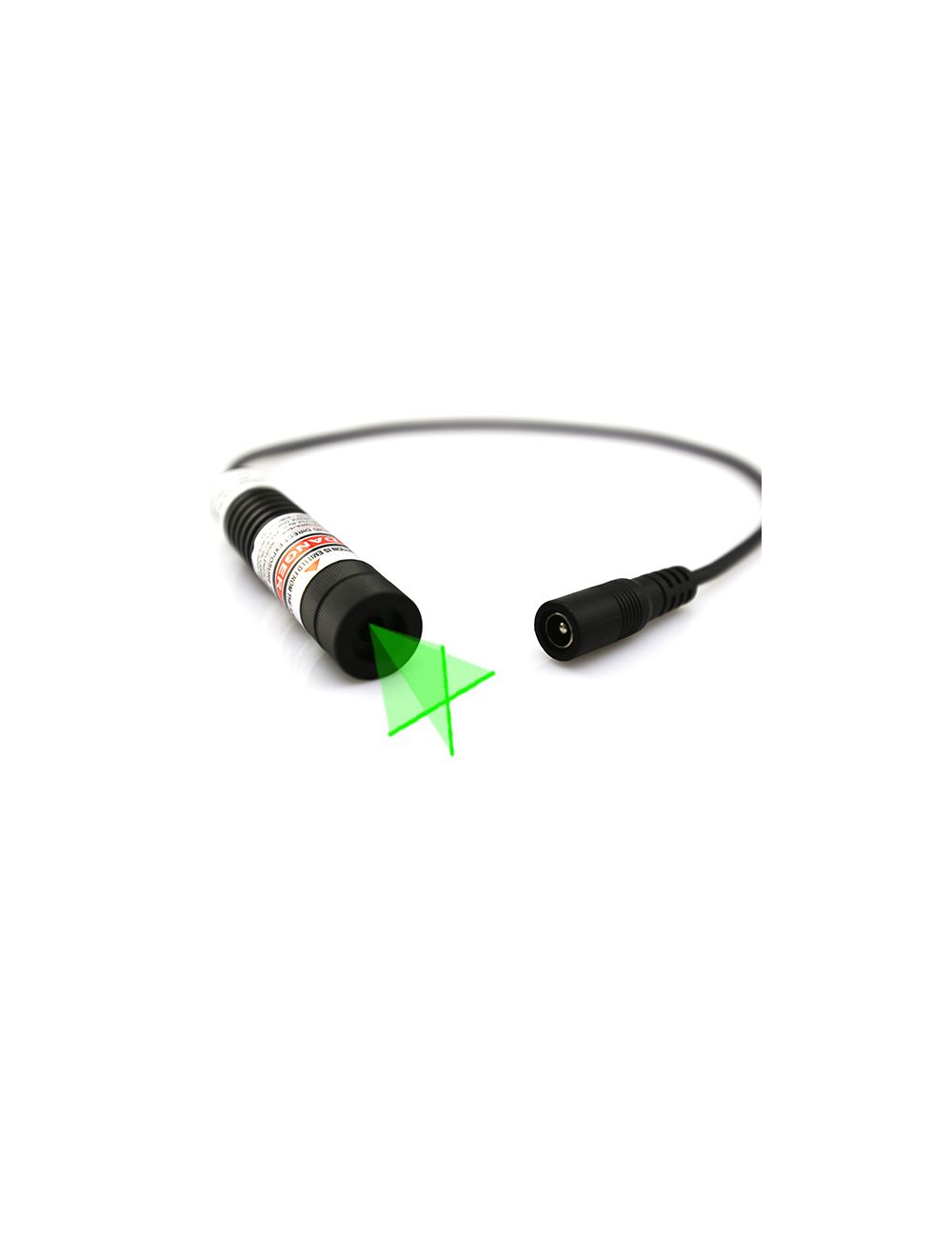

515nm Green Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $139.98

Special Price $129.99

  • Buy 2 for $125.99 each and save 4%
  • Buy 5 for $121.99 each and save 7%
  • Buy 10 for $116.98 each and save 11%

Quick Overview

515nm green cross line laser module employs direct cross line emission 515nm green laser diode, integrated with cross line generating glass cylindrical lens, offering the highly stable and reliable green cross lines on working surface. Employed by quite compact design of only 16mm diameter laser tube, this green cross line generator enables easy and convenient installation and operation for wide applications of medical treatment, military targeting, building construction etc.

* Required Fields

Details

Different from 532nm green DPSS laser, 515nm direct emission green cross line laser module makes the most stable and reliable green cross line with wide choice of laser lens degree of 10°, 15°, 110°, generates highly bright and straight vertical and horizontal lines with different line length and line thickness at a give distance. This 515nm green laser module fulfills high accuracy and high precision cross line alignment with low manual input, low energy consumption and high efficiency.

◆ Glass cylindrical lens made 515nm green cross line laser generator fulfills high accuracy measurement.
Cross line laser module selects efficient laser optical transmission system, combined with constant current driving circuit and metal heat sink cooling system, always assures the most accurate and precise green cross hair generation in continuous industrial laser use.

Key features:

515nm direct emission cross line laser module gets the most stable and reliable crosshair for various industrial cross line laser source applied fields.
High brightness green laser beam makes the most accurate and precise cross line generation.
Wide laser power range: 5mW, 10mW, 20mW, 30mW, 50mW
Wide glass cylindrical lens degree: 10°, 15°, 110°, generates different green cross line length and width at a give distance
Efficient thermal emitting system, gets 10 times better cooling than common lasers
High speed green cross line generation applicable for industrial cross line alignment and positioning in machinery metal making, laser cutting, screening printing, textile garment positioning, medical and scientific applications.

Technical parameters:

Item Green Cross Line Laser Module
Wavelength (nm) 515nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW
Available Fan Angle(degrees) 10°, 15°, 110°
Laser Class IIIa, IIIB
Beam thickness at aperture (mm) <2.8mm; At 2m distance: <2.0mm
Beam divergence (mrad) <4
Beam mode (before optics) TEM00
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-50mW:DC=8.4V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-50mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-10mW: D16mm×L71mm;20mW-50mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:
Only trained people are allowed to operate 515nm green cross line laser module. People should adjust the cross line laser module to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 515nm green cross line laser module
2. DC input power Supply

Attention: For high powered or OEM cross line laser modules, please contact us free at support@berlinlasers.com.
