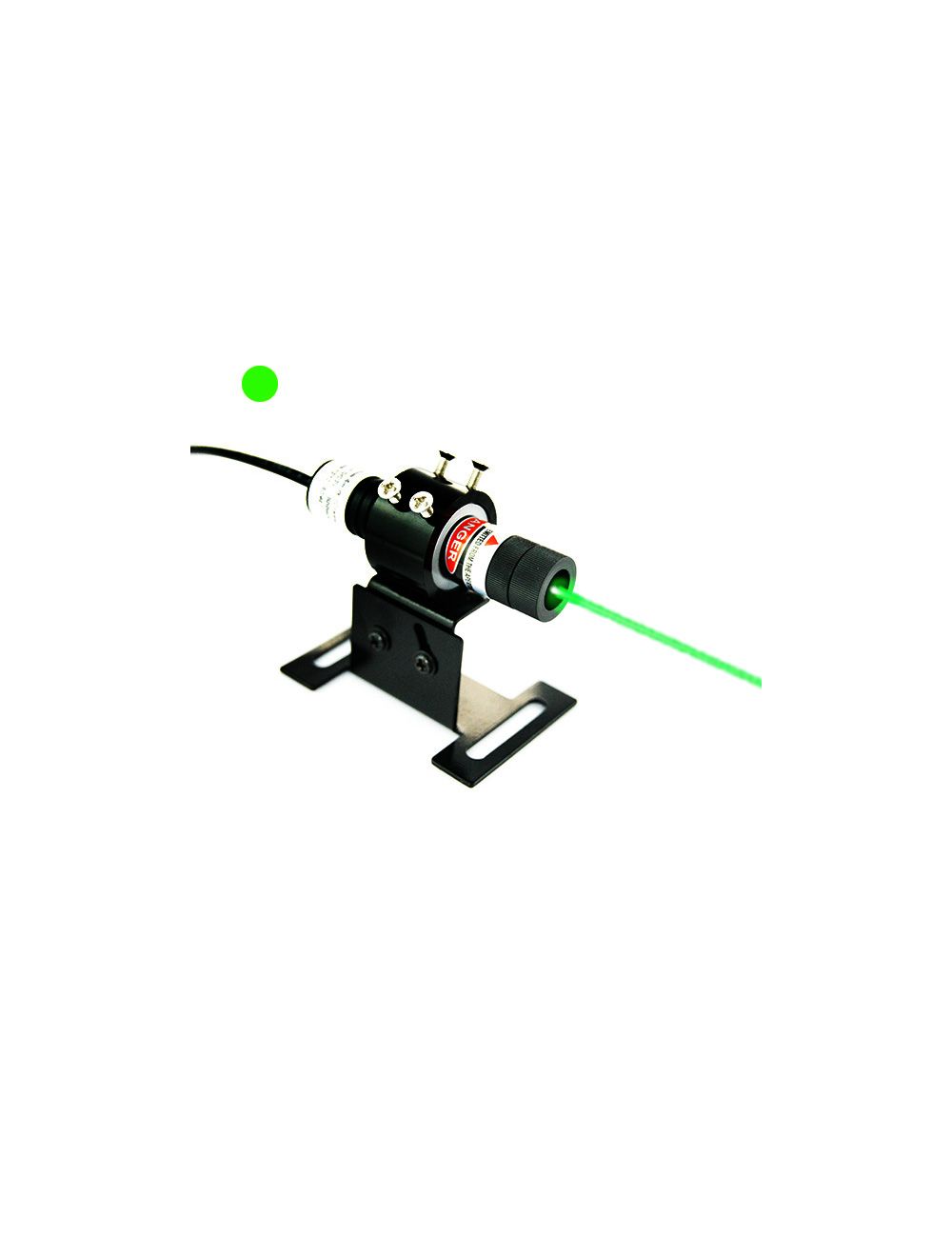

Green Dot Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $95.00

Special Price $89.99

  • Buy 3 for $87.99 each and save 3%
  • Buy 5 for $85.99 each and save 5%
  • Buy 10 for $82.99 each and save 8%

Quick Overview

532nm green dot projecting laser alignment incorporated with the finest laser diode, collimation lens and circuit board, provides a quick reference dot for alignment applications. Employed by advanced focus adjustable optics, this low divergence green laser module makes the most precised alignment for tasks of requiring high level accuracy or great working distance.

* Required Fields


Berlin Lasers’ 532nm green dot projecting focus adjustable alignment laser provides the highest precision dot alignment for maximum visibility in all lighting conditions. Green lasers are five times more visible than red lasers of the same output power to human eyes, making industrial green laser module a versatile alignment solution for all great distance and high lighting conditions.

Features of high precision green laser module:
Durable structure laser with high accuracy alignment. Employed by the best optical system of collimation lens and circuit board, and aircraft grade aluminum material, green dot projecting laser alignment achieves high accuracy reference dot for great distance and high light alignment applications.

Great distance and high light alignment solution. Focus adjustable green dot generating laser module emits the most visible and bright light to human eyes, allows high accuracy and precision reference dot for all high lighting conditions or great distance alignment.

24 hours continuous operation for industrial alignment. Low divergence green dot alignment laser is operable for 24 hours continuous pointing through DC input power supply. It maintains stable and accurate alignment for all industrial alignment work.

Technical parameters:

Item Green Dot-Projecting Laser Alignment
Wavelength (nm) 532nm
Output power (mW) 5-100mW
Laser Class IIIB
Beam thickness at aperture (mm) <2.8mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews 4 item(s)

The Green Laser Dot Is Very Bright at 1 Meter Distance
When I recevied my purchased 10mW green dot laser alignment, I just tested inner room. At 1 meter dot projecting distance, the green laser dot size is only 1mm-1.3mm. The green alignment laser dot is very round, bright, and clear on targeting surface.

This 10mW green dot laser alignment is a very nice dot measuring tool, since it is just enough to make the most accurate and precise dot alignment and positioning use. Its price is always very acceptable, cheap, but avaiable at genuine quality and guaranteed services. Review by Yong Joon Park / (Posted on 8/13/2015)
very accurate and bright dot laser alignment
I am quite satisfied with my 20mW green dot laser alignment, even though i waited 1 week for my package. Its green laser beam is very stable. I have made test about 8 hours continuous dot projection, 20mW green laser alignment keeps its constant output power between 21-23mW.

I also choose a mounting bracket. It is very easy to mount the green laser dot on any desired surfaces. It is very helpful to me to get highly bright and accurate green laser dot alignment in use. Review by Robert Niece / (Posted on 8/7/2015)
High Concentricity Green Dot Laser Alignment
Among all visible blue, blue violet, red and green lasers, 532nm green laser is just regarded as the most visible, sensitive and the most easily absorbed laser beam emitting alignment laser pointer. The special laser beam transverse mode of TEM00 has just assured its high concentricity green dot generation in use.
The test of green dot laser alignment is as below:
At 30cm working distance, the smallest laser dot diameter is only 0.5mm. Its green dot is also adjustable focus. I can easily adjust its laser alignment head part to achieve the best dot alignment in operation. Review by Nicky Smith / (Posted on 4/21/2015)
The Most Satisfied Laser Alignment Tool and Services
When I received my green dot laser alignment, I am not quite familiar with how to operate this kind of alignment laser tool properly. I asked from Berlin Lasers. The technical support team from Berlin Lasers has just given me a lot of help, and instructs me to get the best dot generation result from this great alignment laser pointer. Review by Daisy Compère / (Posted on 4/20/2015)
