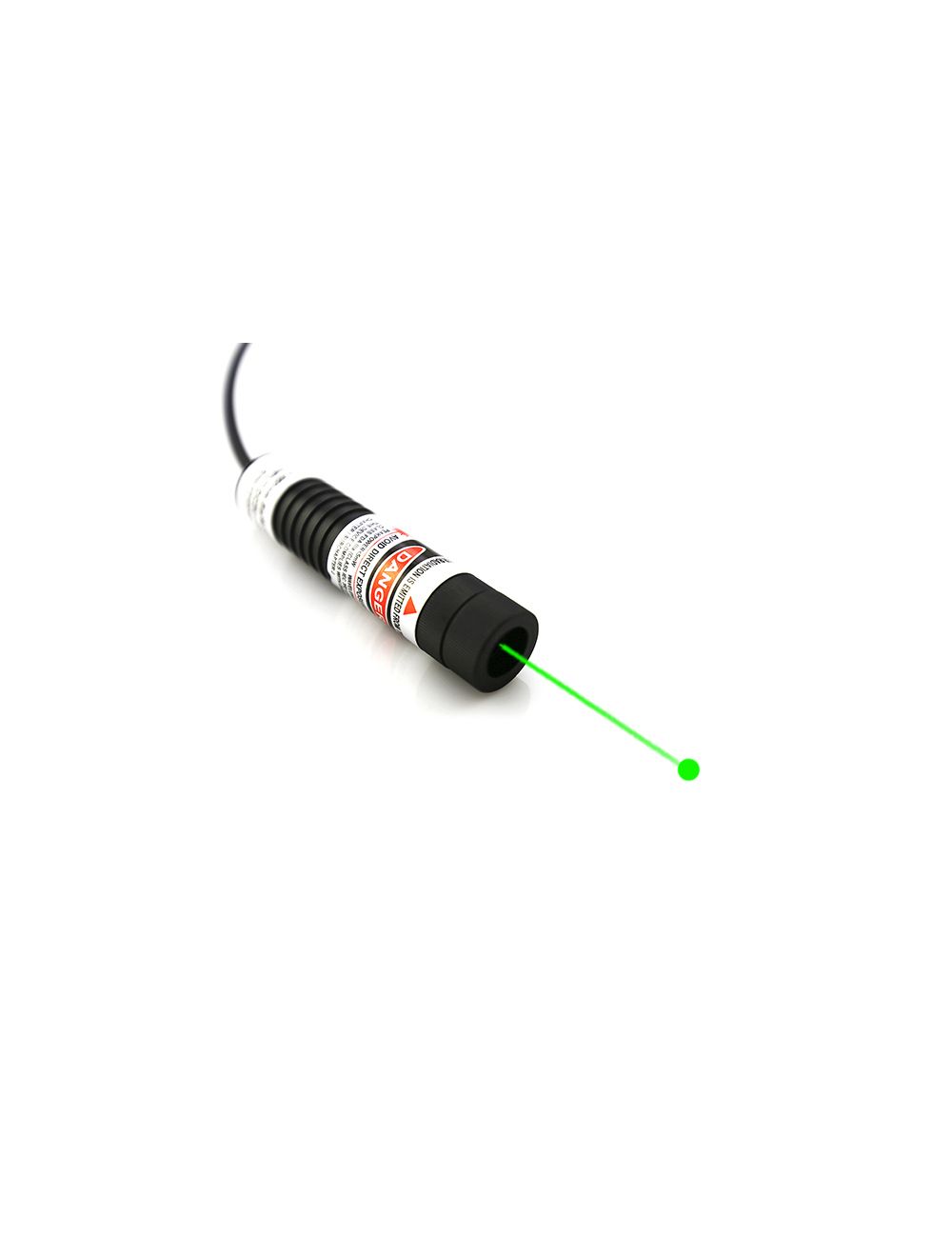

532nm Green Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $105.98

Special Price $89.98

  • Buy 2 for $86.98 each and save 4%
  • Buy 5 for $83.19 each and save 8%
  • Buy 10 for $79.99 each and save 12%

Quick Overview

532nm DPSS green laser diode module adopts compact design, consists of perfect controlled laser diode, integrated driving electric circuit board, lens optics, cooling system. It offers high beam visibility green light output in various visual alignment applications.

* Required Fields

Details

High performance 532nm green laser diode module is available in type of portable pen packaging, providing the best quality and highly visible green laser beam emitting for various visual alignment applications. Unlike direct laser diode emitting, it gives high stability green laser source from complete DPSS green laser diode for standard and OEM laser use.

Sensitive DPSS laser module gets the best light spot. 532nm green laser module is always projecting the most visible green laser beam near the central of sensitivity of human eyes. It is just the ideal choice for industrial alignment, medical and scientific research. Extremely visible green laser beam just ensures the best positioning result.

CW modulation is applicable for continuous positioning. With wide range of power levels, the continuous green laser beam emitting from green laser diode modules fulfills long time usages. It is workable for precise measurement, alignment, target positioning etc.

Features of 532nm green laser diode module:
◆ Compact design of 16mm and 26mm diameters selectable
◆ Output power level of 5mW ~ 100mW
◆ High reliability and stability: power stability better than 5% over 8 hours continuous positioning
◆ Aircraft used aluminum housing with anodized treatment
◆ Focus adjustable lens
◆ CW modulation

Technical Data:

Item Green Laser Diode Module
Wavelength (nm) 532nm
Output power (mW) 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW
Laser Class IIIa, IIIb
Beam thickness at aperture (mm) <2.8mm
Beam divergence (mrad) 1-1.5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  5mW-30mW:DC=3.0V; 50mW-100mW:DC=4.2V
Operating current (mA)  5mW-30mW: I<500mA; 50mW-100mW: I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-30mW: D16mm×L71mm;50mW-100mW: D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Green laser diode module
2. DC input power Supply optional

Attention: For high powered or OEM 532nm green laser diode module, please contact us free at support@berlinlasers.com.
