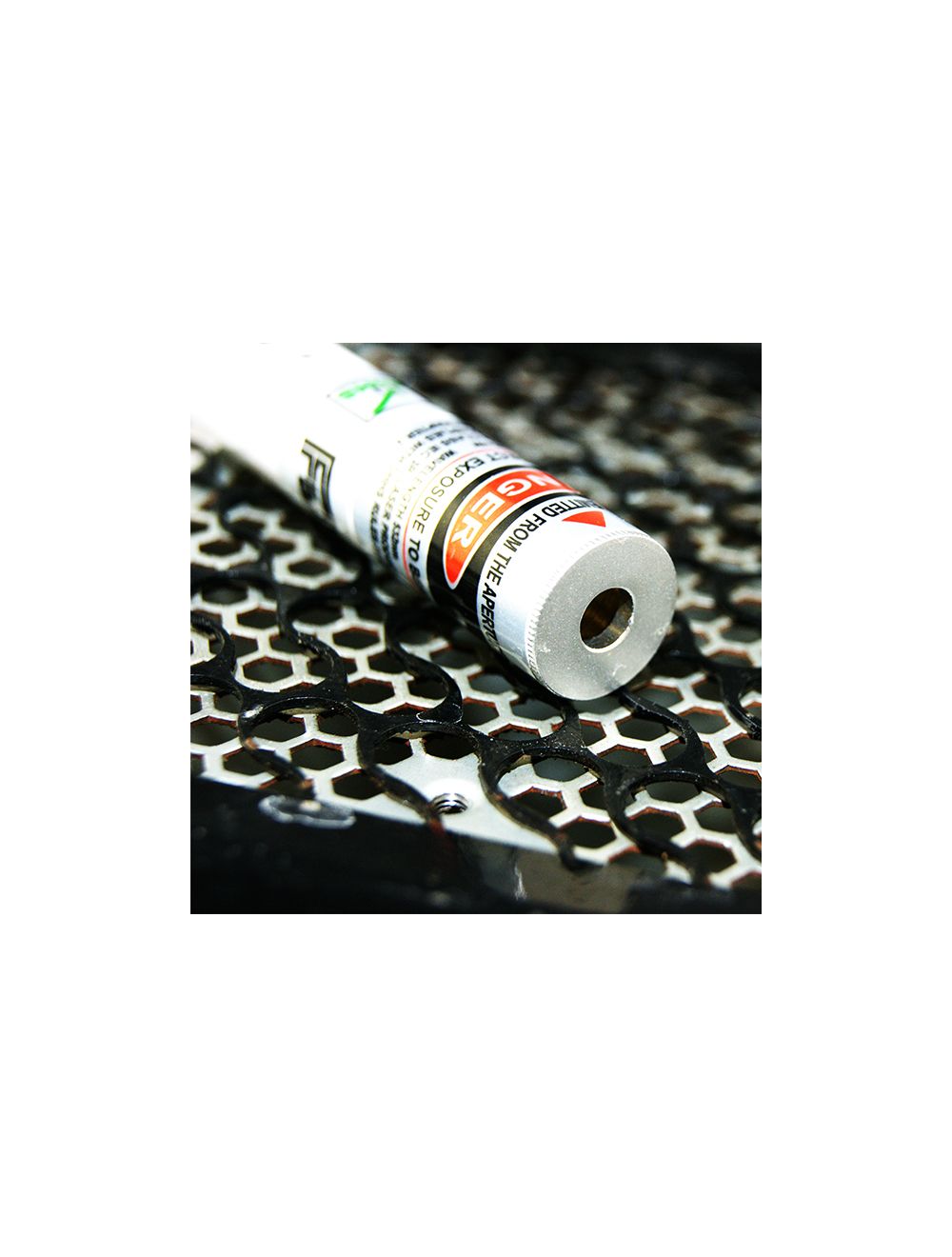

5mW 808nm Infrared Laser Pointer

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $119.96

Special Price $72.78

  • Buy 3 for $66.22 each and save 10%
  • Buy 5 for $61.86 each and save 16%
  • Buy 10 for $58.22 each and save 21%

Quick Overview

5mW 808nm infrared laser pointer projects invisible infrared beam, which offers infrared light source solution for medical therapy, military target tracking, intelligence, surveillance, reconnaissance, spectroscopy, law enforcement and so on. Invisible beam 808nm infrared laser pointer manufactured from the finest laser diode, which offers an extremely long operation lifetime with high reliability, stability and the most competitive price.


On basis of the finest laser diode and circuit board, the invisible beam 5mW 808nm infrared laser pointer ensures high stability and high reliability infrared light source in work. This alkaline battery powered 808nm infrared laser projects invisible beam in operation with extremely long endurance working time of more than 180 minutes.

Keep features:
2 pieces AAA batteries operated 808nm infrared laser obtains long endurance time of 180 minutes.
The finest laser diode manufactured infrared laser with long operation lifetime of more than 8,000 hours.
Durable structure laser pointer with quality brass material, and inner cooling system design
Class IIIa infrared laser complies with FDA and CE safety standard
Multi functional IR laser in medical therapy, military target tracking, intelligence, surveillance, reconnaissance, spectroscopy, law enforcement.

Technical Parameters:

Name Infrared Laser Pointer
Wavelength 808nm
Output power 5mW
Laser class IIIa
Transverse mode TE00
Range in darkness (m) 100-600m
M2 factor <1.2
Beam divergence, full angle (mrad) <2.5
Beam Diameter at Aperture (mm) <2.8
Spectral Line width (nm) <0.1
Polarization Ratio >100:1
Warm-up Time (minutes) <0.5
Operation Temperature (℃) 10~30
Storage Temperature(℃) -10~+50
Housing material Aluminum
Expected Lifetime (hours) 5000
Laser Head Dimensions (D×L, mm) Φ14mm×171mm
Cooling System Metal Heat Sink
Operating voltage (VDC) 2×AAA batteries
Warranty time Six Months

Packing list: 1. Infrared laser pointer; 2. black hard plastic box

Caution with IR laser:

The major concerns of IR laser are the risk and dangers associated with invisible laser beam. The invisible beam can cause serious eyes injury to organic of retina. Nobody will notice the damage caused by infrared laser without the end user realizing the damage effects.

Infrared laser pointer should be always operated by skilled operators equipped with infrared laser equipment. The associated laser safety goggles are always necessary for end users all the time.
