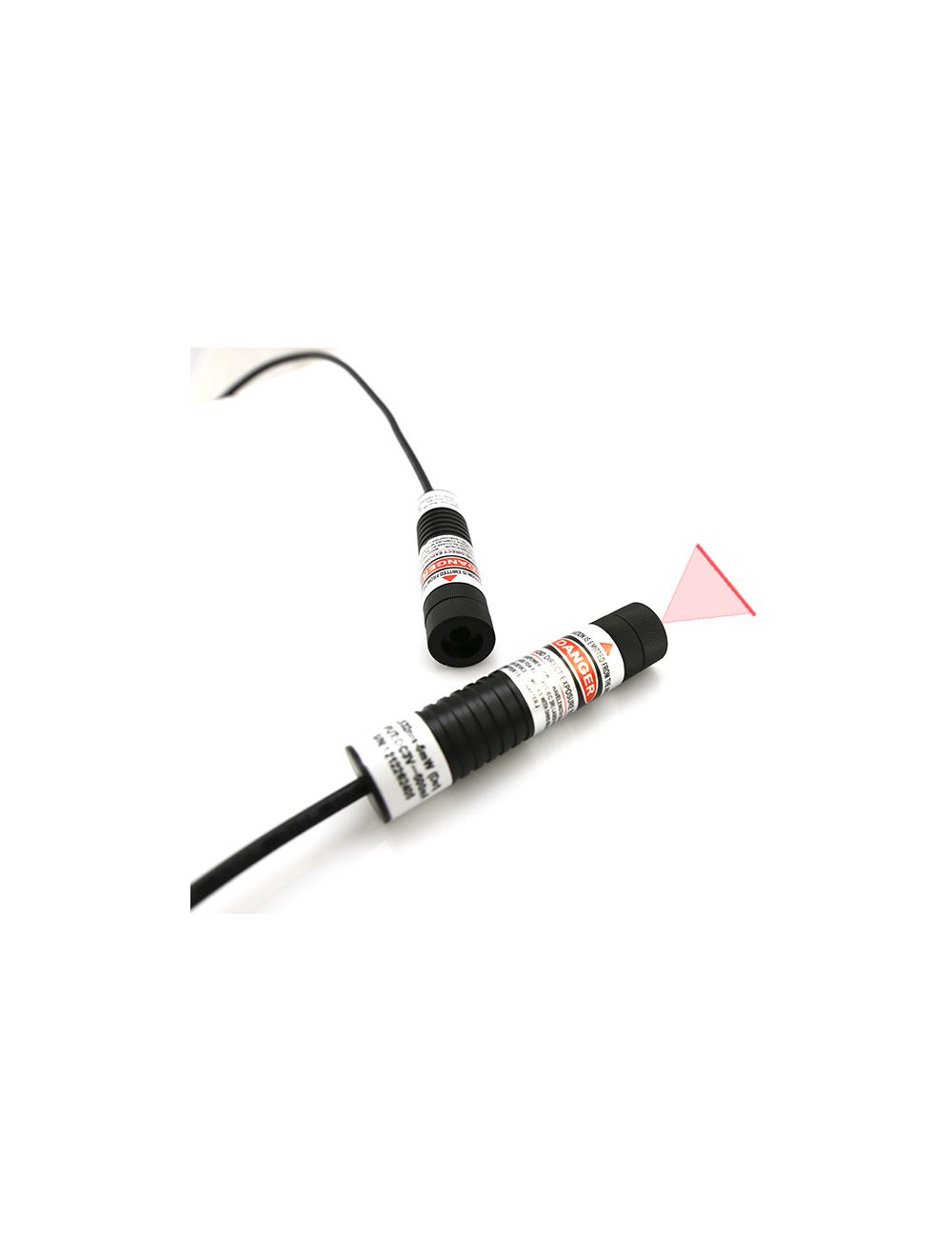

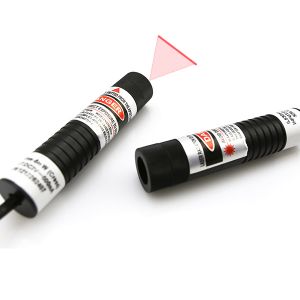

650nm Non Gaussian distribution Red Laser Line Generator

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $116.99

Special Price $91.99

  • Buy 3 for $89.99 each and save 3%
  • Buy 5 for $87.99 each and save 5%
  • Buy 10 for $85.99 each and save 7%

Quick Overview

Employed by quite special separate crystal lens, this 650nm non Gaussian Distribution red laser line generator integrates qualified import 650nm red laser diode and metal heat sink cooling system into its quite compact size metal housing tube, allowing highly stable and highly uniform red laser line targeting on all raw material surfaces effectively. Red laser module adopts external DC input power supply, providing professional and practical laser line alignment solution for various industrial machinery processing and high tech line alignment uses accurately.

* Required Fields

Details

650nm Non Gaussian distribution red laser line generator employs high duration aircraft used aluminum alloy housing, integrated import 650nm red laser diode and metal heat sink cooling system into its quite compact 16mm or 26mm diameter laser tube, always generating highly stable and reliable red laser line source for long term use. It gets genuine quality design and keeps stable line targeting for all working occasions, providing low labor force and high accurate red line alignment solution for laser cutting, image processing system, textile garment processing, sand mill, and other etc.

◆ High uniformity red line source generating from separate crystal lens.

Red laser line generator projects high fineness red laser line from its separate crystal lens, keeping high uniformity up 80%. Red laser line keeps the same line thickness and brightness from middle part towards both ends, fulfilling the tasks where high level of accuracy line alignment is in need.

◆ Continuous power source from DC input power supply.

Support by 100V to 240V electric current applied DC input power supply, red laser module is workable for majority of countries and regions, providing constant and stable red laser line source with perfect protection from strong interference and strong static etc.

Key features:
◆ APC, ACC driving circuit assures constant output power and electric current supply during the whole process of continuous red laser line alignment work.
◆ Import diode emission laser line generator gets stable and low price line alignment solution, supporting maximum 8 hours to 10 hours a day continuous line targeting per day.
◆ Wide laser output power range: 5mW, 10mW, 20mW, 30mW, 50mW, 80mW and 100mW, applicable for various distance and lighting occasions accept sunlight.
◆ Wide non-Gaussian separate crystal lens fan angles: 16°, 20°, 30°, 45°, 50°, 60°, 93°, generating different red laser line length and thickness in distance

Technical Parameter:

Item Non Gaussian distribution Red Laser Line Generator
Wavelength (nm) 650nm
Output power (mW) 5mW-100mW
Available Fan Angle (degree) 10°- 93°
Beam diameter at aperture (mm) <2.0mm; at 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

Only trained users or skilled users are able to operate 650nm non gaussian distribution red laser line generator. People should adjust the red laser module to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage. Remember to wear laser safety goggles for any laser module up 30mW to 100mW.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Non Gaussian distribution Red Laser Line Generator
2. DC input power Supply

Attention: For high powered or OEM non Gaussian Distribution red laser line generators, please contact us free at support@berlinlasers.com.
