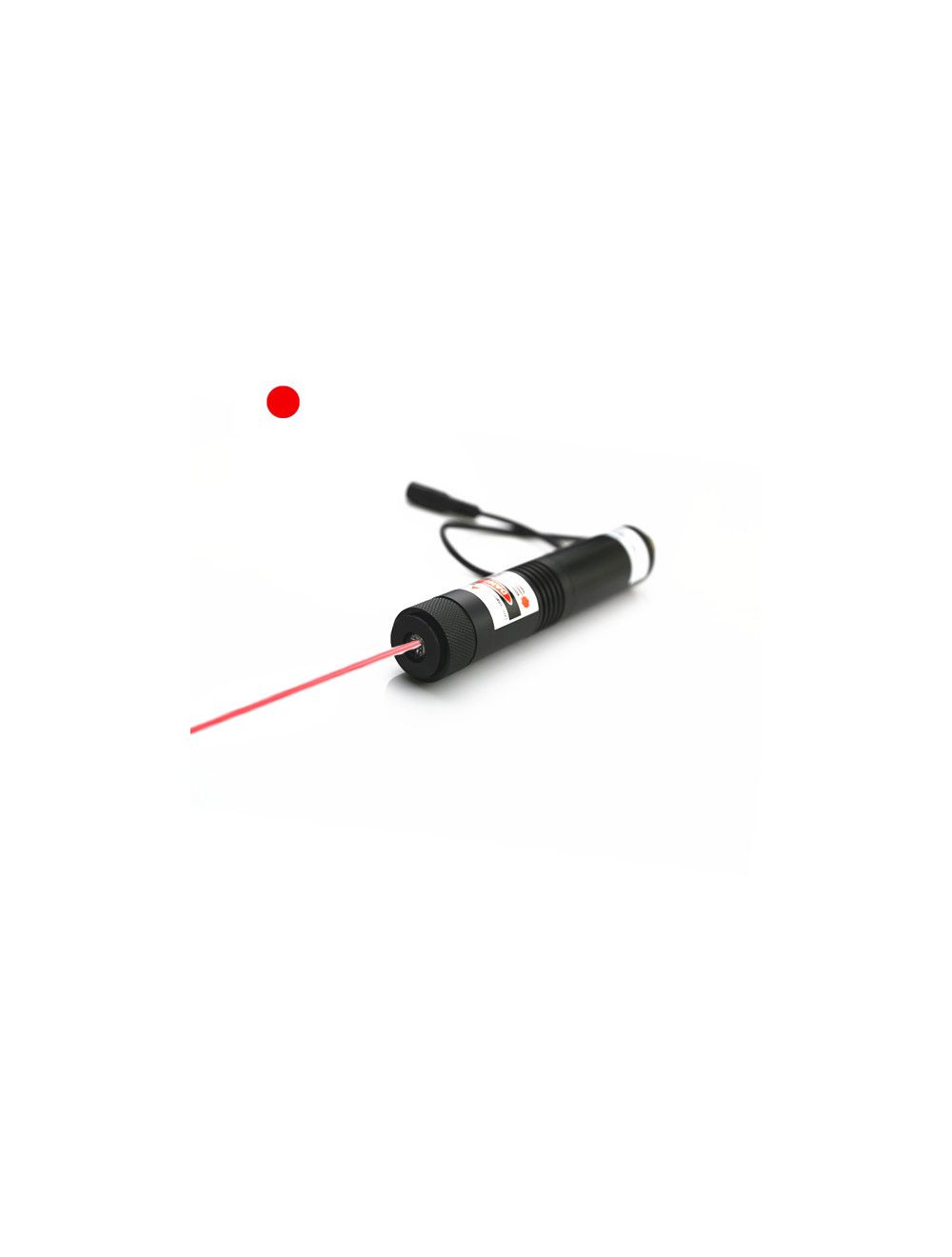

High Power Economy Red Dot Laser Alignment

High power conomy red dot laser alignment gets high concentration on thermal emitting system. Employing high power import 650nm red laser diode, metal heat sink cooling system and APC driving circuit design, this metal housing made red laser module obtains superior nice thermal conductivity and improving laser beam stability under professional operation. This direct diode emission laser dot alignment tool just provides moderate accuracy dot collimation solutions for prominent colleges, universities, institutes and labs etc.

was $279.99 Special Price $259.99
Availability: In stock
  • Buy 3 for $247.99 each and save 5%
  • Buy 5 for $244.99 each and save 6%
  • Buy 10 for $242.99 each and save 7%

High power economy red dot laser alignment employs the most mature laser diode tech applied import 650nm red laser diode within quite high power range of 150mW to 500mW. The special equipment of APC, ACC driving circuit board just gets intelligent feedback of constant output power and electric current supply, under proper red reference dot targeting within 8 to 10 hour per day operation, high power 650nm red laser module keeps laser light cycling use, and providing high level of stability dot alignment solutions for laser marking machine, laser engraving machine, military targeting, laser medical treatment device, and drilling system etc.

● DC input power supply assures quick and accurate dot alignment.

Supported by 8.4V DC input power supply, high power red dot laser alignment keeps constant and immediate red reference dot targeting from laser beam aperture. Extending electric wires is high temperature resistance, and also bearing strong interference and strong static in long term dot aligning.

● Glass coated lens made red laser module assure clear dot targeting in distance.

High power red dot laser alignment adopts qualified glass coated lens and special glass window in front of laser beam aperture, which is keeping super high laser beam transmittance and extremely clear red reference dot targeting under moisture and dust conditions.

● Improving dot aligning stability under operation by skilled users

Direct diode emission 650nm red laser module makes use of metal heat sink cooling system and copper material made laser diode core part inside aluminum alloy housing, which obtains the best thermal conductivity and wide range operating temperature stabilization. It keeps up to 80% beam stability under operation within 8 to 10 hours per day by skilled users.

Key features:

Wide range output power within 150mW to 500mW assures stable and reliable red reference dot targeting at long distance working occasions.
Mature and long development history made 650nm red laser diode assure the most economic and stable dot alignment constantly.
Wide range electric current converting of 100V to 250V to 8.4V DC input power supply, assures convenient dot targeting in majority countries and regions.
CW modulation.

Technical parameters:

Item High Power Economy Red Dot Laser Alignment
Wavelength (nm) 650nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty Period 180 days


Only trained users are allowing operating of high power economy red dot laser alignment. People should install and adjust red laser module to the best condition and operate under special alignment equipment.

Warning! Red laser module emits intense laser radiation and reflection that can be harmful to human eyes. Avoid exposure to laser beam aperture, and remember to wear 650nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V, 3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Economy Red Dot Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
