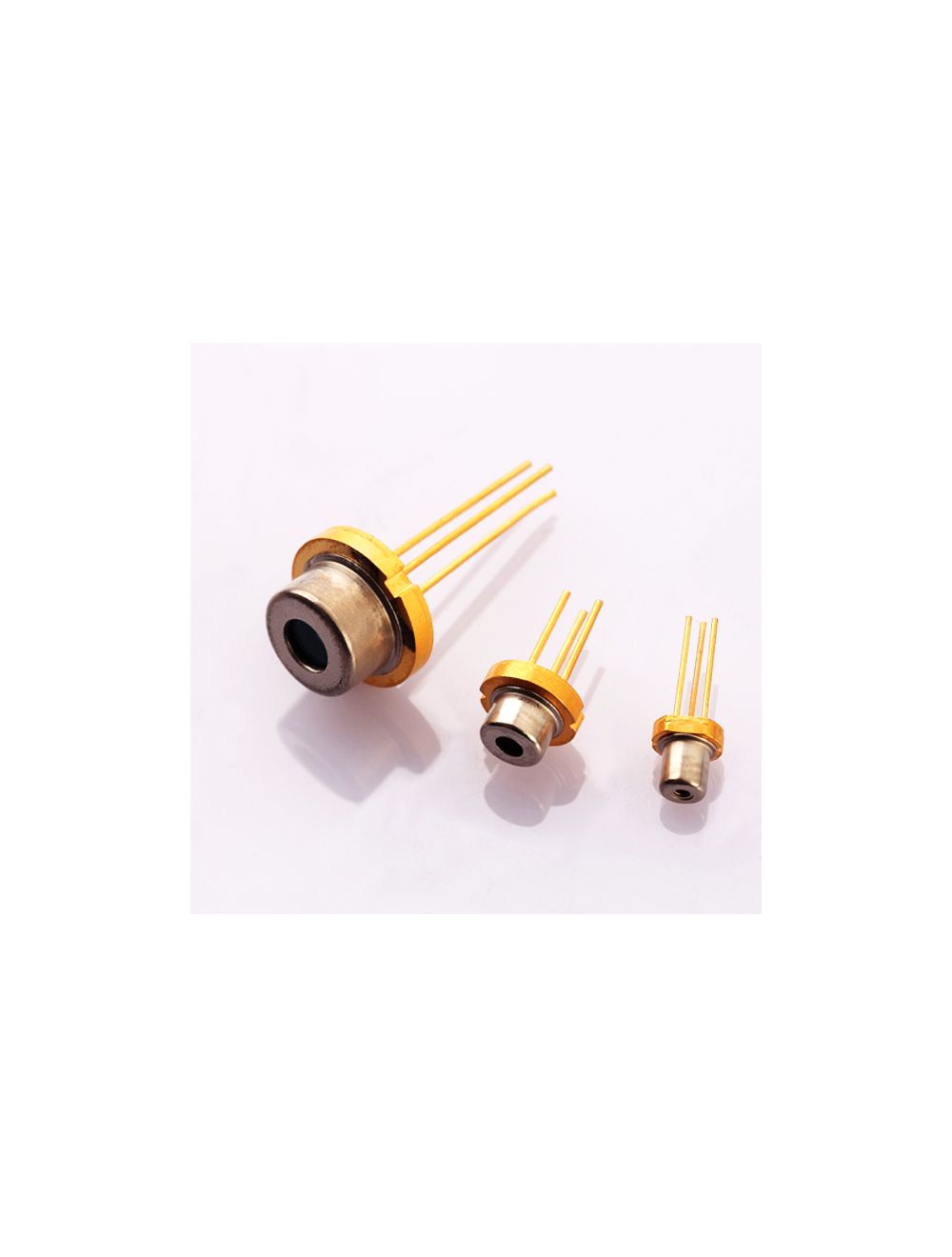

660nm SM Violet Laser Diode

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $379.98

Special Price $289.98

Quick Overview

Product name: 660nm, TO 18 package
Output Power: 200mW,
Application: industrial, biomedical, military defense, scientific
Wavelength: 660±5nm


High brightness 660nm single mode red laser diode offers high power and highly visible laser radiation in CW light emitting mode. This TO 18 package SM laser diode provides the most stable and reliable light projection in the industry.

Featured characteristics:
High brightest and high beam intensity
Narrow beam line width of 658±5nm
Low beam divergence and small light emitting aperture
The purest 660nm laser radiation
Stable and reliable performance

Standard technical data (T=25℃) of 660nm SM laser diode:

Specification Symbol 660nm SM Red Laser Diode
CW Output Power P 200mW
Peak Wavelength λp 658±5nm
Threshold Current Ith ≤0.04A
Operating Current Iop ≤0.28A
Slope Efficiency η ≥0.70W/A
Operating Voltage Vop ≤2.0V
Horizontal Beam Divergence θ∥ ≤13 deg
Vertical Beam Divergence θ⊥ ≤22 deg
Spectrum FWHM   <1.0nm
Wavelength Temperature Coefficient   0.22nm/℃
Polarization   TE
Storage Temperature Tstg -10~+60℃
Operating Temperature Tc 0~+30℃
Package   TO-18

TO-18 Package Draw of 658nm single mode LD:

TO-18 Package 660nm SM laser diode
