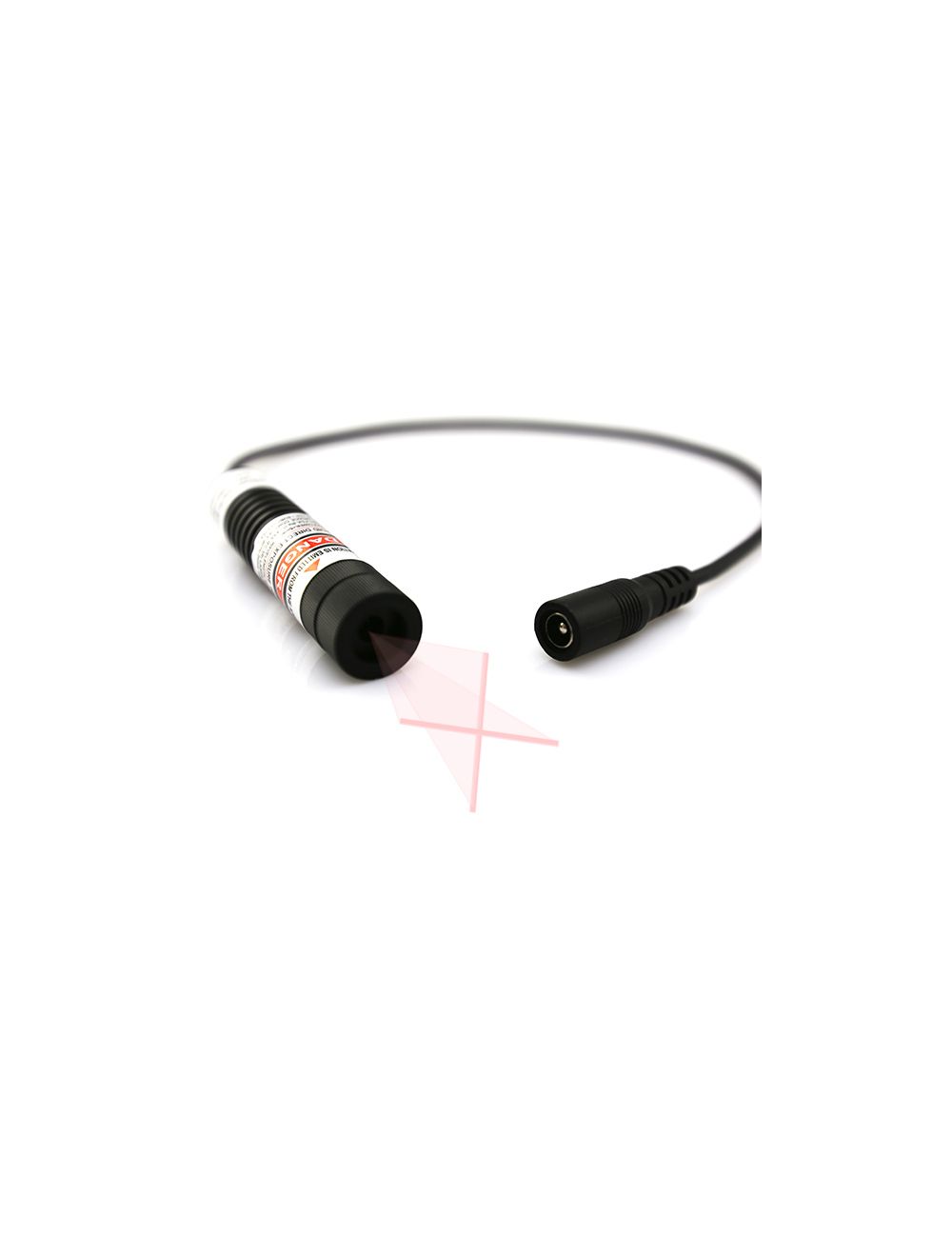

808nm Infrared Crosshair Laser Module

Payment Option:

Availability: In stock

Regular Price: $149.99

Special Price $128.98

  • Buy 2 for $125.99 each and save 3%
  • Buy 5 for $121.99 each and save 6%
  • Buy 10 for $117.99 each and save 9%

Quick Overview

808nm infrared crosshair laser module generates quite special and invisible IR cross line laser source for high tech applied fields such as night vision IR laser illumination, infrared light, military targeting, medical treatment devices, laser ranger finger etc. This advanced 808nm infrared laser module comprises of durable aluminum housing, 808nm infrared laser diode with qualified glass cylindrical lens, constant current electric driving circuit and metal heat sink cooling system. In all industrial laser using fields, it fulfills highly stable and reliable 808nm IR cross line emission efficiently.

* Required Fields

Details

The design of 808nm infrared crosshair laser module makes full consideration of its industrial cross line alignment ability. It adopts quite compact design, available with 16mm and 26mm diameter laser tubes on basis of wide selection of output power range from 100mW to 400mW. This advanced 808nm infrared laser module gets 10 degree, 15 degree and 110 degree glass cylindrical lens, generates highly straight and highly uniform vertical and horizontal IR laser lines with different cross line length and line width at different working distances.

◆ Metal housing 808nm infrared laser module makes sure of stable and reliable cross line generation continuously.
IR crosshair laser module employs the most durable anodized aluminum housing material, getting efficient thermal conductivity of laser tube in continuous IR cross line generation. It allows wide operation temperature, making perfect performance of anti-interference, anti-statistic, and perfect protection of mechanical shocking or calibration in continuous cross line alignment and positioning.

◆ External DC input power supply makes sure of 24 hours continuous 808nm IR cross line alignment.
On basis of selecting output power from 100mW to 400mW, 808nm infrared cross line laser module equips different operating voltage DC input power supply of 3V to 4.2V. 808nm IR laser cross line generator keeps easy and convenient operation in all industrial use fields.

Key features:

808nm Infrared cross line laser source workable with wide operation temperature, crosshair targeting is high speed, high accuracy.
 Glass cylindrical lens with selectable lens degree of 10°, 15° and 110°, allows different 808nm IR crosshair line length and line width at different working distance.
◆ High IR laser beam transmittance, IR cross line is available with high straightness, high uniformity and good alignment.
 Wide selection of output power: 100mW, 200mW, 300mW, 400mW.

Warning! 808nm infrared cross line laser module emits invisible IR laser radiation human eyes cannot detect. We suggest skilled person operation of this IR laser with perfect eye protection with laser safety goggles.

Technical parameters:

Item Infrared Crosshair Laser Module
Wavelength (nm) 808nm
Output power (mW) 100mW, 200mW, 300mW, 400mW
Available Fan Angle(degrees) 10°, 15°, 110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.5mm
Beam divergence (mrad) 6mrad
Beam mode (before optics) TE
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. 808nm infrared crosshair laser module
2. DC input power Supply

Attention: For high powered or OEM 808nm infrared crosshair laser modules, please contact us free at support@berlinlasers.com.
