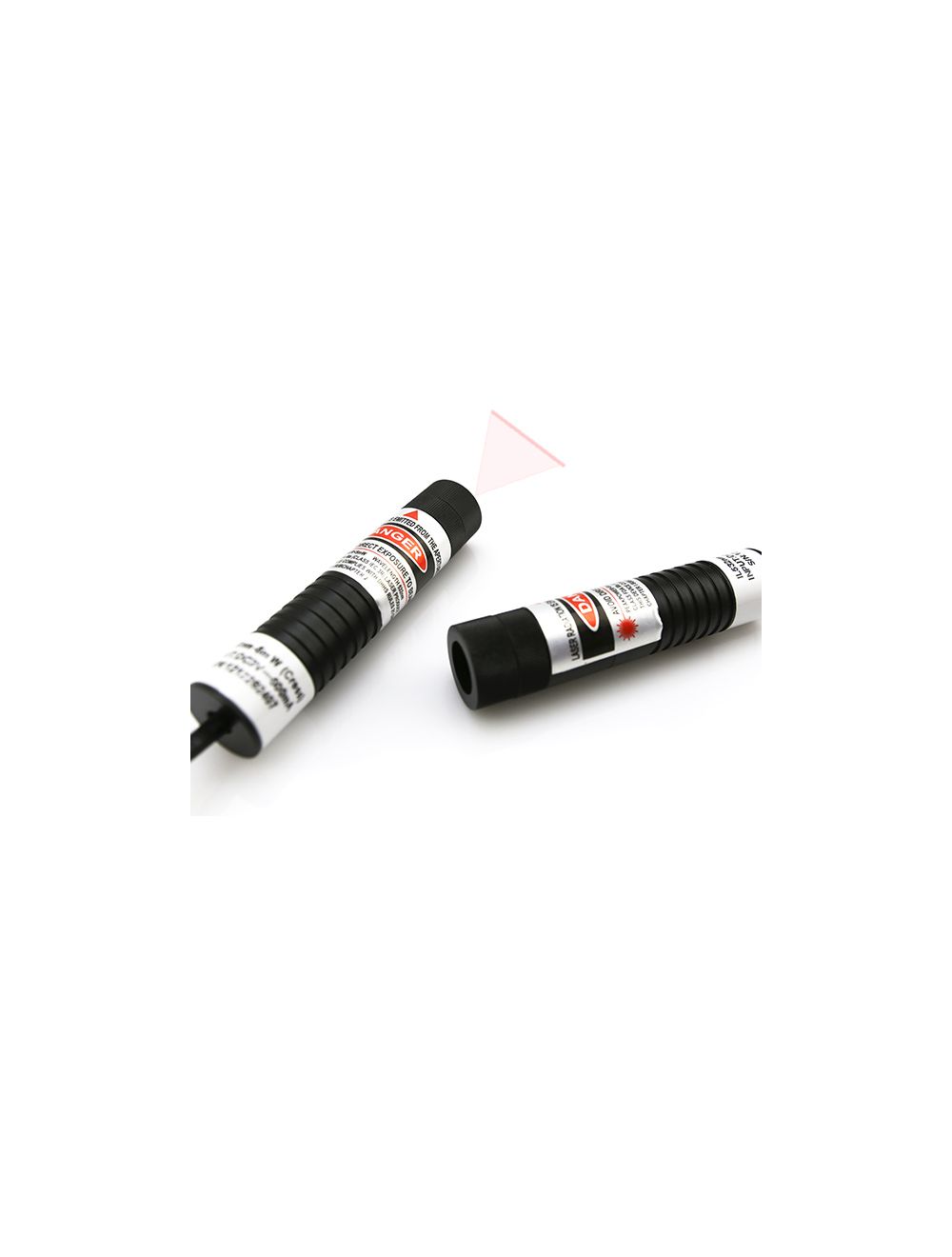

808nm Infrared Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $129.99

Special Price $116.98

  • Buy 3 for $112.99 each and save 4%
  • Buy 5 for $108.99 each and save 7%
  • Buy 10 for $103.99 each and save 12%

Quick Overview

Formal Gaussian distribution 808nm infrared line laser module employs compact integration of IR laser diode, constant current electric driving circuit, line generating glass lens and metal heat sink cooling system, generating focusable IR laser line with a wide laser fan angle from 10 degree to 110 degree. This IR laser line generator selects compact design, offers easy and convenient IR laser line projection with high accuracy and high precision.

* Required Fields

Details

Compactly designed with 16mm diameter laser tube, 808nm infrared line laser module fulfills the finest IR line laser source supply for a wide application fields of night vision line alignment and line measurement, IR illumination, scanning, modeling etc. Combined with external DC power supply and full consideration of thermal emitting ability, IR laser line generator makes the best IR laser line generation with high stability and long lasting lifetime.

◆Formal Gaussian line lens with affordable cost.
808nm infrared line laser module selects formal Gaussian distribution line lens, generating IR laser line for tasks of where moderate accuracy and precision line alignment in need fields. Gaussian IR laser line visibility becomes weaker from middle towards both ends.

◆Metal heat sink cooling system equipped laser line generator ensures stable line emitting.
16mm diameter IR laser module reserves enough space as its thermal emitting space, ensuring efficient protection of internal IR laser diode and driving circuit in continuous IR laser line emitting. IR laser line keeps highly stable and reliable.

◆Anodized aluminum housing laser module is workable for hash occasions.
Metal housing selection makes sure of efficient thermal conductivity of infrared line laser module, getting superiority of anti-interference, anti-statistic, protection from mechanical shock or calibration. IR laser line generator is workable for wide operating temperature.

Key features:

The finest IR laser line source emitting with high straightness, high stability
Wide range output power: 100mW, 200mW, 300mW, 400mW
Wide Gaussian laser fan angles: 10°, 20°, 30°, 45°, 60°, 110°

Technical Data:

Item Infrared Line Laser Module
Wavelength(nm) 808nm
Output power(mW) 100mW, 200mW, 300mW, 400mW
Available Fan Angle (degree) 10°, 20°, 30°, 45°, 60°, 110°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<500mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Infrared laser line module
2. DC input power Supply optional

WARNING! 808nm infrared laser module emits invisible radiation and is harmful to human eyes. When users are making line generation with IR laser line module, we suggest to wear laser safety goggles for IR wavelength preventing.

Attention: For high powered or OEM 808nm infrared line laser module, please contact us free at support@berlinlasers.com.
