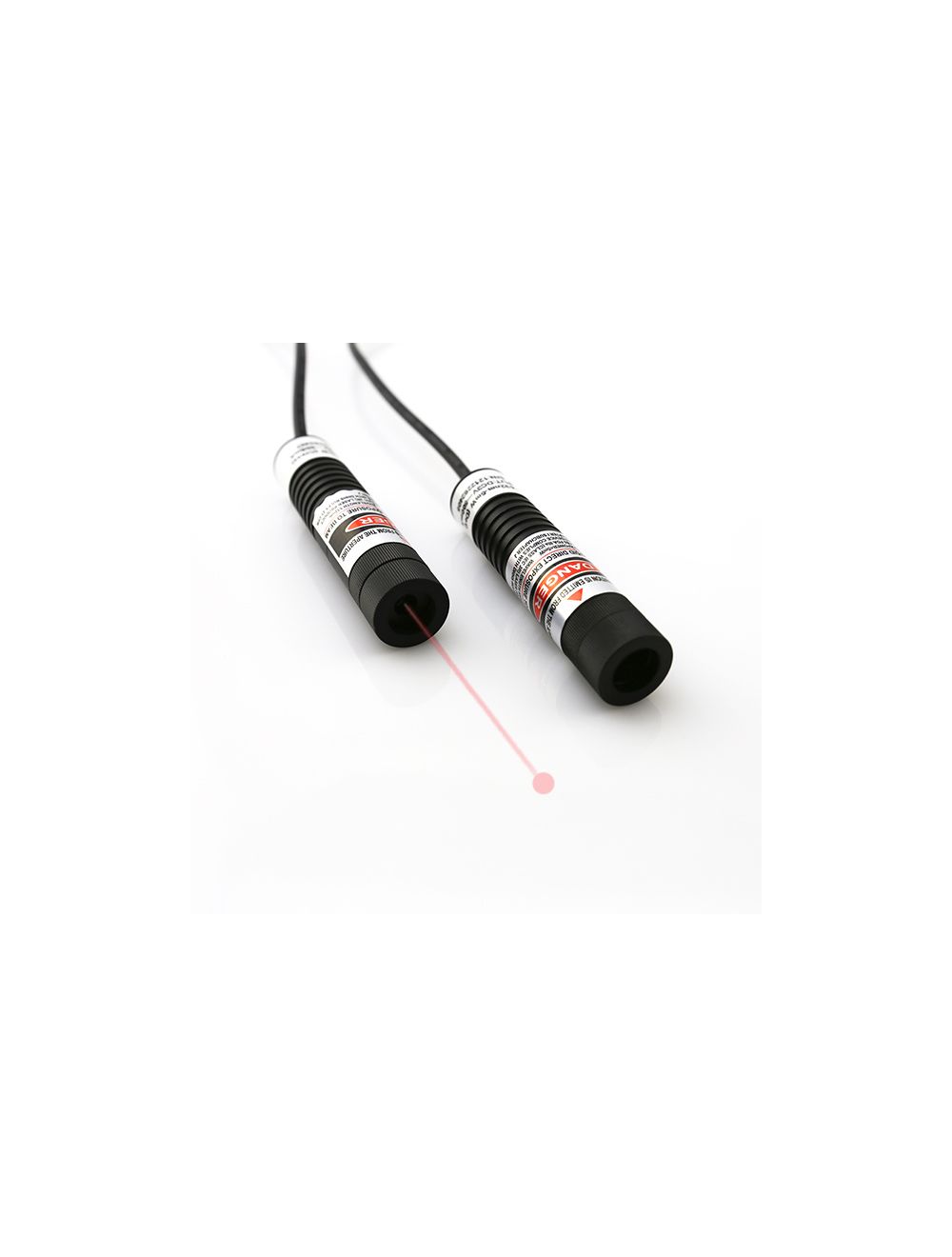

980nm Infrared Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $99.99

Special Price $86.98

  • Buy 2 for $83.99 each and save 4%
  • Buy 5 for $79.99 each and save 9%
  • Buy 10 for $74.98 each and save 14%

Quick Overview

Optimized designed Diode 980nm infrared laser module integrates ultra fine laser diode, optic lens, constant current driving circuit into the most durable and compact aluminum housing. This 980nm IR laser diode module is providing the excellent IR laser beam for a wide range of applications in OEM laser instruments, scientific research, measurement, communication, spectrum analysis, medical therapy, night vision IR illuminator, and laser IR laser positioning devices etc.

* Required Fields

Details

Optimized designed 980nm infrared laser module combines the finest configuration of laser diode with qualified collimating lens, constant power driving circuit and durable aluminum housing, providing the most reliable IR laser source with high efficiency, high stability, high compatibility and low cost. This reliable IR laser diode module is widely applicable for OEM users in scientific research, medical therapy, military targeting, IR laser illuminator, infrared laser positioning etc.

Compact design laser module with durable aluminum housing. 980nm IR laser diode module utilizes anodized aluminum housing, allows perfect electrical isolation and efficient thermal conductivity. Incorporate with adjustable focus lens, laser diode module just offers the best quality intense IR laser source for OEM laser users.

Constant power supply for stable IR laser source emission. Constant current driving circuit ensures high stability infrared laser beam emitting over lifetime and temperature. Infrared laser diode module generates stable laser source with less power, less heat, and obtains up 8000 hours serving lifetime.

Superior Features:

◆ Ultra Compact design of 16mm diameter
◆ Wide Output power level of 5mW ~ 500mW
◆ High reliability, high stability. IR laser Power stability is better than 5% over 8 hours continuous positioning
◆ Aircraft used aluminum housing with anodized treatment, durable, thermal conductive, projection from shocking, calibration
◆ Constant power driving circuit
◆ Focus adjustable lens
◆ CW modulation

Technical Data:

Item Infrared Laser Diode Module
Wavelength (nm) 980nm
Output power (mW) 5mW, 20mW, 50mW, 100mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIa, IIIb
Beam diameter at aperture(mm) 2.0mmX3.5mm; 10cm beam diameter<0.5mm
Beam divergence (mrad) 6mrad
Beam mode (before optics) TE
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=3.0V
Operating current (mA)  I<600mA;
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D16mm×L71mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Infrared laser diode module
2. DC input power Supply optional

WARNING! 980nm infrared laser module emits invisible IR laser radiations. It is harmful to human eyes. Laser safety goggles is necessity while IR laser is in use. Do be cautious!

Attention: For high powered or OEM 980nm infrared laser diode module, please contact us free at support@berlinlasers.com.
