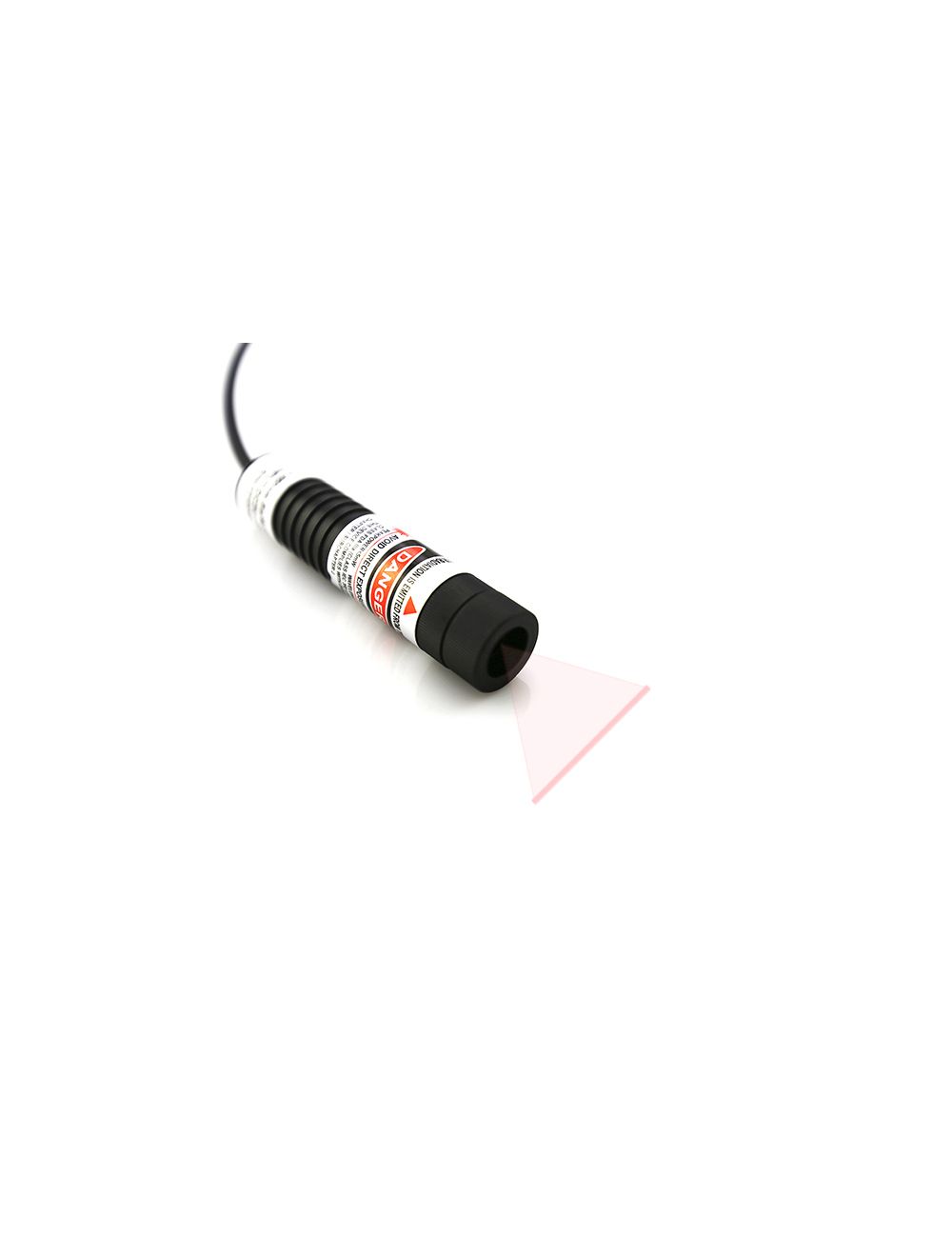

980nm Infrared Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $110.18

Special Price $95.99

  • Buy 3 for $92.99 each and save 4%
  • Buy 5 for $88.99 each and save 8%
  • Buy 10 for $83.99 each and save 13%

Quick Overview

Invisible IR line generating tool of 980nm infrared line laser module consists of 980nm IR laser diode with glass cylindrical lens, aircraft used aluminum housing, and metal heat sink cooling system. This advanced infrared laser module is widely use for industrial IR line laser source required fields, including IR laser night vision, IR laser illumination, military and laser medical equipment, laser rangefinder, IR laser positioning devices etc.

* Required Fields

Details

980nm Infrared line laser module integrate all parts together in quite compact size of laser tube, available with 16mm and 26mm diameter laser tubes. This advanced IR laser line generator selects the most advanced configuration of constant current electric driving circuit and metal heat sink cooling system, generating the most stable and reliable IR line laser source for all industrial work surfaces.

◆Anodized aluminum housing laser tube with high thermal conductivity
980nm infrared line laser module allows wide range of output power from 5mW to 500mW. The metal housing equipped with internal thermal emitting system, assures the most efficient thermal stabilization in continuous IR line projection. 980nm IR laser line is highly stable and reliable, laser output keeps steady as well.

◆ Glass cylindrical lens with different laser fan angles makes different line targeting result on targeting surface.
980nm IR laser line generator selects qualified glass coated cylindrical lens with wide range laser fan angle of 10 degree to 110 degree, generates different IR laser line length and line thickness at different working distance.

Key features:
High speed, high stability, and high reliability IR laser line generation
wide laser module output power: 5mW, 20mW, 50mW, 100mW, 150mW, 200mW, 250mW, 300mW, 400mW, 400mW, 500mW
wide laser fan angle (Gaussian distribution): 10°, 20°, 30°, 45°, 60°, 110°.

Technical Data:

Item Infrared Line Laser Module
Wavelength(nm) 980nm
Output power(mW) 5mW-500mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture(mm) 10cm distance:<2.5mm
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=3.0V
Operating current(mA) I<600mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia16mm×Length71mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Infrared laser line module
2. DC input power Supply optional

WARNING! 980nm infrared line laser module emits invisible radiation and is harmful to human eyes. When users are making line generation with 980nm IR laser line module, we suggest wearing laser safety goggles for IR wavelength preventing.

Attention: For high powered or OEM 980nm infrared line laser module, please contact us free at support@berlinlasers.com.
