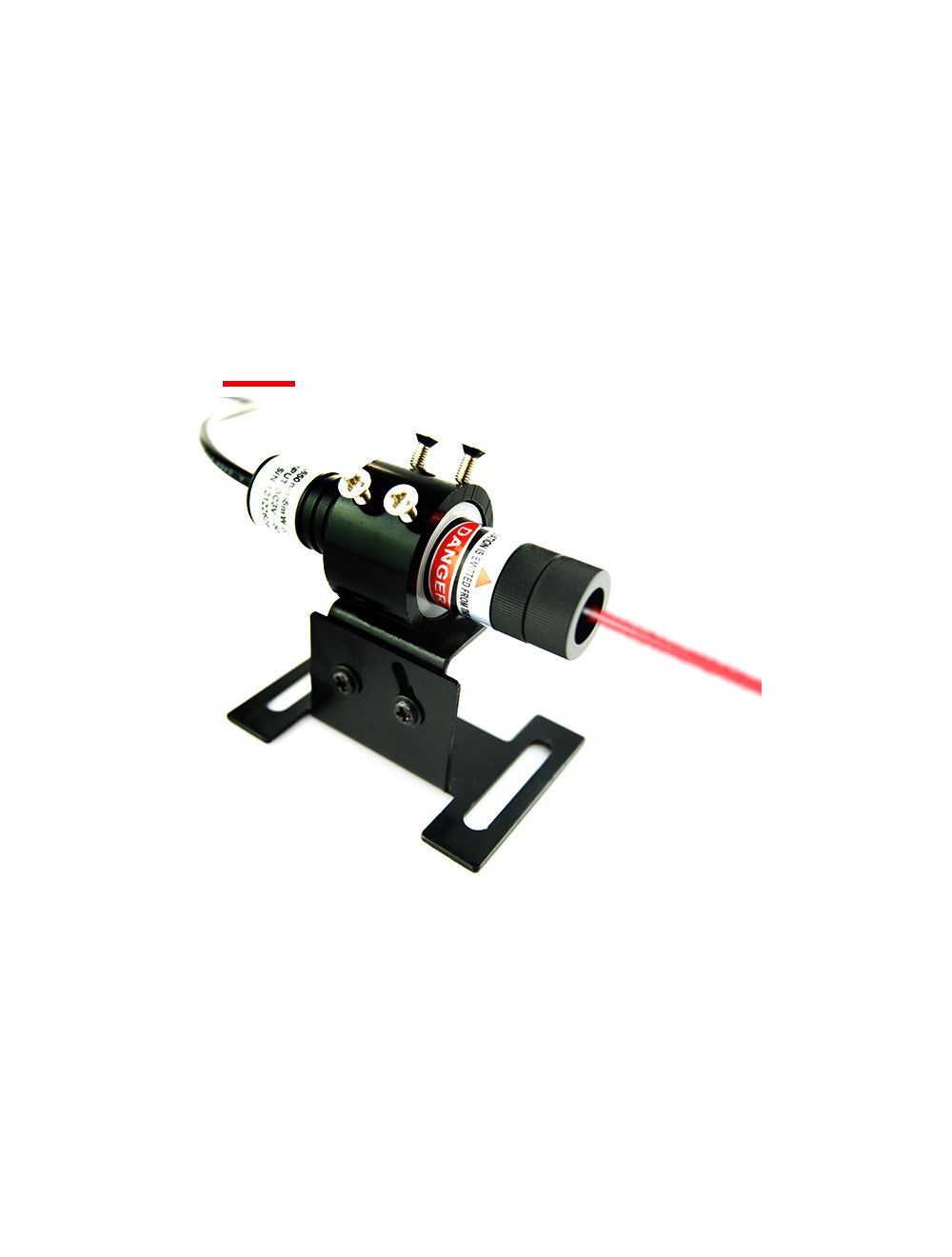

Economy Red Line Projecting Laser Alignment

Payment Option:

Availability: In stock

Regular Price: $86.98

Special Price $72.98

  • Buy 3 for $69.98 each and save 5%
  • Buy 5 for $66.98 each and save 9%
  • Buy 10 for $63.98 each and save 13%

Quick Overview

Economy 650nm red line projecting laser alignment generates a quick reference line on targeted surface. Not as bright as 532nm green laser, this 650nm industrial laser alignment projects a clear red line at great distance. This line generating red laser module is enough for tasks of moderate level of accuracy and precision line alignment required tasks.

* Required Fields


Economy 650nm red line projecting laser alignment with a fan angle of 5° to 120°, available with an output power of 5mW-100mW, generates a rapid reference line for any application where a highly visible line projected on to a surface is in need. This 650nm red line laser module provides great line alignment solution for tasks requiring a moderate accuracy in work.

Durable structure laser with perfect inner design. Industrial red alignment laser utilizes the highest level 650nm red laser diode, circuit board and aluminum body material, realizes accurate reference line alignment in work.

DC input power supply to meet industrial alignment. 650nm red laser module operated by DC input power supply and adjustable focus design, fulfill 24 hours continuous line pointing at great distance. It is an ideal industrial alignment laser operable with appropriate alignment equipment.

Technical parameters:

Item Economy Red Line Projecting laser alignment
Wavelength (nm) 650nm
Output power (mW) 5-100mW
Available Fan Angle (degree) 10°- 110°
Beam diameter at aperture (mm) <2.0mm; at 2m diameter: <2.0mm
Beam divergence (mrad) 5 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v)  5mW-20mW:DC=3.0V; 30mW-100mW:DC=4.2V
Operating current (mA)  5mW-20mW: I<500mA; 30mW-100mW: I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty 6 months

Only trained people are allowed to operate laser alignment. People should adjust the laser alignment to the best condition and operate under special alignment equipment.

Warning! Laser module emits radiation that can be harmful to human eyes. Never look directly into the laser aperture. Any exposure to laser beam at close distance can cause eye damage.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Customer Reviews 2 item(s)

Stable Red Laser Beam emitting Laser Alignment Tool
I have bought 50mW red line laser alignment to make laser line generator for many times. There is still no problem of any one of my laser alignment tools. In continuous line projecting conditions, laser alignment tube might be perfectly cooled down. It has very nice thermal emitting system. This alignment laser line is very nice tool for long term line positioning operation. Review by Ewa Compère / (Posted on 4/20/2015)
Affordable Red Laser Line with fast delivery
I am very satisfied with this portable designed 50mW red line laser alignment. It is just cautiously designed with 26mm diameter laser tube. When I am making line projection at long distance, it just projects highly bright and visible red laser line in distance.
I always make line measurement together with laser cutting machine more than 8 hours, but its output power is just very stable. This laser alignment line is very affordable and stable to choose. Review by Ewa Leshkiv / (Posted on 4/18/2015)
