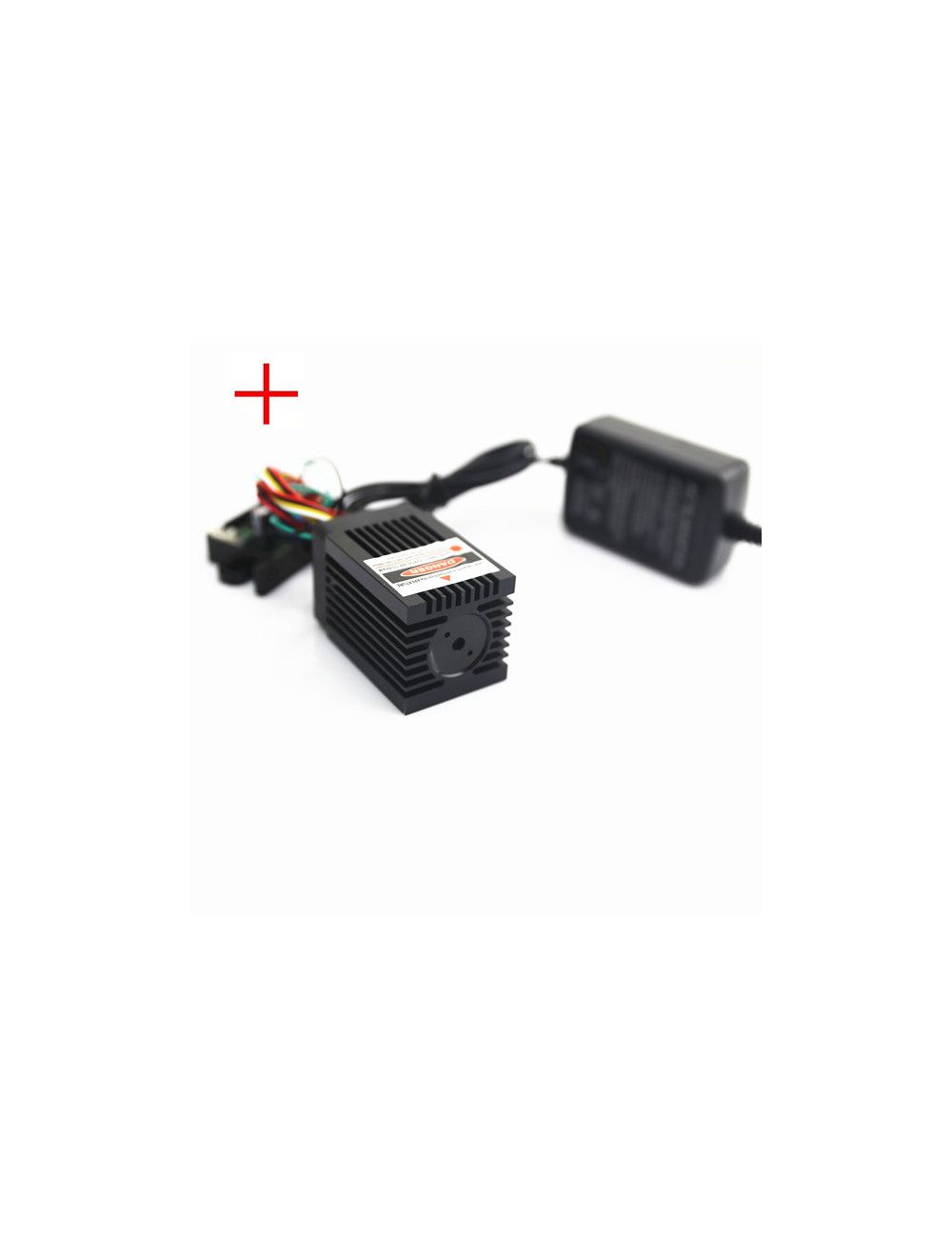

High Power 150mW-500mW 650nm Red Cross Line Laser Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $329.99

Special Price $289.99

  • Buy 3 for $287.99 each and save 1%
  • Buy 5 for $285.99 each and save 2%
  • Buy 10 for $283.99 each and save 3%

Quick Overview

High intensity beam emitting high power 150mW to 500mW 650nm red cross line laser module makes excellent use of qualified import 650nm red laser diode and glass coated lens, which is assuring super high laser beam transmittance and the clearest two perpendicular lines with accurate 90 degrees. Equipped with separate thermal emitting system and perfect thermal conductive metal housing, this compact structure made 650nm red cross line laser provides the most competitive and stable red cross line alignment for prominent college and university, lab and institutes etc.

* Required Fields

Details

Employed by import 650nm red laser diode within high power range of 150mW to 500mW, high power 650nm red laser diode module maintains highly intense and bright red laser beam emission, and improving laser beam stability in long term continuous red laser dot alignment. Integrated with copper laser diode core part and APC, ACC driving circuit board and metal heat sink cooling system, this 650nm red cross line laser obtains strong environmental stabilization, and provides the best cross line alignment for various fields, including laser alignment for screen printing system, laser medical treatment device, military targeting and heat transfer machine etc.

◆ Qualified optic lens assures excellent red cross line alignment in distance.
High power 650nm red cross line laser module adopts excellent quality glass coated lens, selectable from 10, 15 and 110 degree, it is generating accurate 90 degree two perpendicular lines with different line length. After simple adjustment of laser beam aperture, red cross line thickness can be freely adjusted, fulfilling highly clear and high linear quality red cross line alignment for all industrial and high tech cross line use effectively.

◆ High power 650nm red laser diode makes sure of long distance cross line alignment.
Available with 150mW to 500mW 650nm red laser diode, high power 650nm red cross line laser generates the most intense red laser beam and the clearest red cross line source in distance without sunlight. Under condition that red cross line alignment is processed within 8 to 10 hours per day, it is just reduced possibility of laser diode and electric driving circuit burning out and maintaining long lifetime in use.

◆ DC input power supply makes sure of continuous red cross line generation.
High power 650nm red cross line laser module adopts 9V DC input power supply, accepting wide range electric current range of 100V to 240V converting, making sure of continuous and convenient red cross line generation in multiple fields. The featured design of high temperature and corrosion resistance makes sure of stable and reliable red cross line projection under strong interference or strong static etc.

◆ APC, ACC driving circuit ensures the most reliable red cross line alignment.
Tube temperature of high power 650nm red laser module gets rapid increasing in continuous cross line alignment. APC, ACC driving circuit board ensures the most efficient preventing of serious electric current impacting, and maintains excellent laser light cycling use and up to 80% laser beam stability in long term cross line alignment work.

Technical parameters:

Item High Power Red Cross Line Laser Module
Wavelength(nm) 650nm
Output power(mW) 150mW, 200mW 300mW, 400mW, 500mW
Available Fan Angel (degrees) 10°, 15°,110°
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? No
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

Only trained users or professionals are allowing operation of high power 150mW-500mW red cross line laser module. After proper adjustment to the best condition and operation under professional alignment equipment, it gets high accuracy cross line alignment immediately.

Warning! Any red laser radiation and laser reflection from high power 650nm red laser modules might cause serious hurt or damage to eyes. Avoid eye exposure from laser beam aperture and wear 650nm wavelength preventing laser safety goggles in long term cross line alignment.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 650nm 150mW-500mW Red Cross Line Laser Module
2. DC input power Supply

Attention: For high powered or OEM red cross line laser modules, please contact us free at support@berlinlasers.com.
