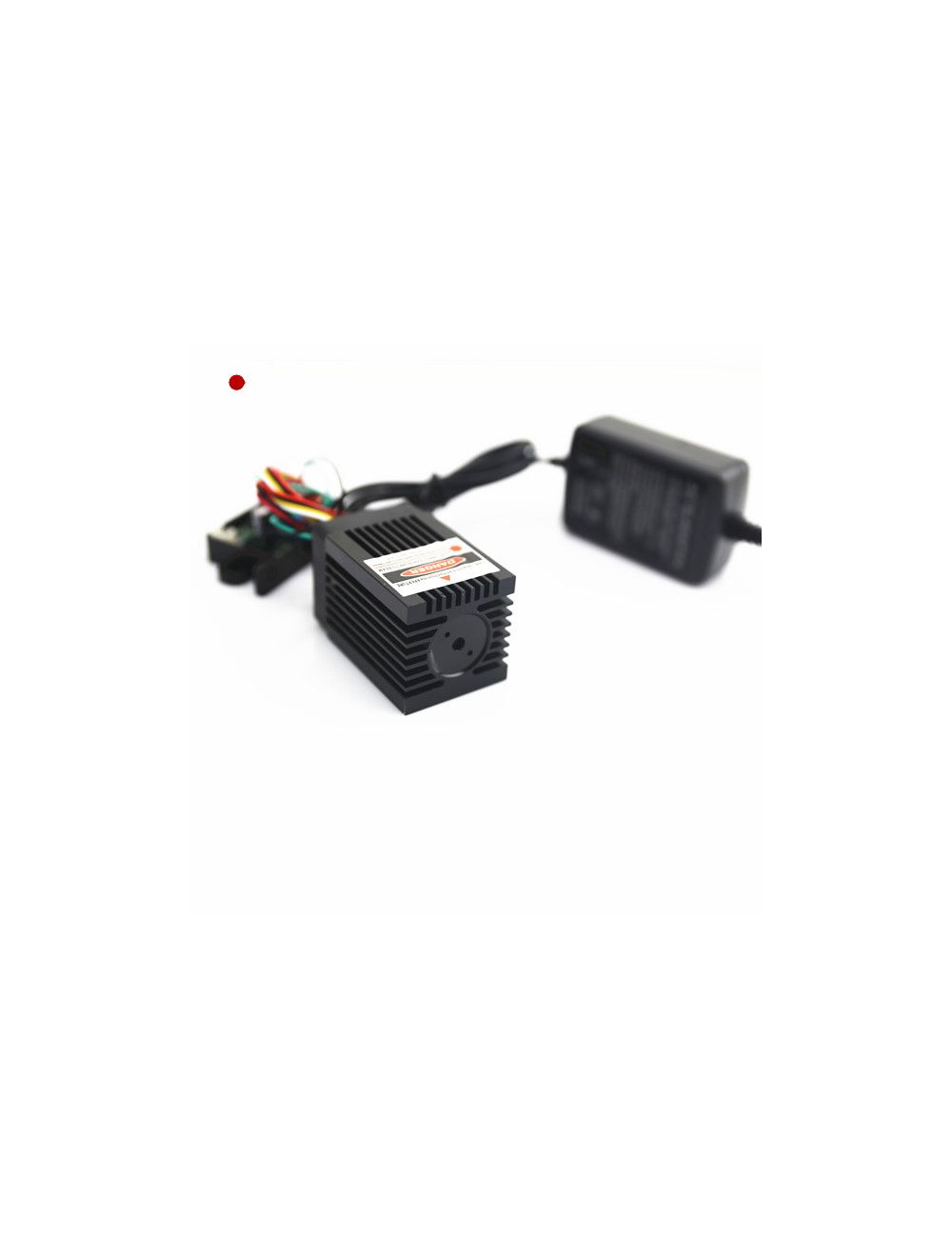

High Power 150mW-500mW 650nm Red Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $278.99

Special Price $259.98

  • Buy 2 for $256.99 each and save 2%
  • Buy 5 for $254.99 each and save 2%
  • Buy 10 for $252.99 each and save 3%

Quick Overview

Employed by high power import 650nm red laser diode, excellent equipment with metal heat sink cooling system and APC, ACC driving circuit board design, this high power 650nm red laser diode module is obtaining superior thermal conductivity, the most intense red laser beam emission, and the clearest red laser dot alignment at quite long distance efficiently. This glass coated lens 650nm red laser device keeps high laser beam transmittance, and provides the best dot aligning solution for multiple fields, including prominent college and university, institute, and labs etc.

* Required Fields

Details

High power 650nm 150mW to 500mW red laser diode module gets excellent use of durable aircraft used aluminum alloy housing material and direct diode emission from high power 650nm red laser diode, fulfilling the most reliable red laser dot projection under multiple working environments. After easy connect with DC input power supply, high power red laser device makes sure of convenient and continuous red reference dot targeting, and maintaining excellent laser light cycling use and accurate dot positioning result for various industrial use, laser marking machine, drilling system, textile garment processing and military targeting etc.

◆ DC input power supply makes sure of constant red laser dot alignment.
High power 650nm red laser diode module adopts external 9V DC input power supply, accepting 100V to 240V electric current voltage converting, assuring the most convenient and continuous red reference dot targeting constantly. Extending electric wires for both high power red laser and DC power source are high temperature and corrosion resistance.

◆ High power 650nm red laser diode assures long distance red dot projection.
Available with wide output power of 150mW to 500mW import 650nm red laser diode, high power 650nm red laser alignment assures high intensity red laser beam emission and the clearest red laser dot alignment in long distance.

◆ Adjustable focus design assures rapid intense beam concentration and clear dot alignment.
Simple screw of laser beam aperture makes sure of rapid red laser beam concentration, and the clearest red reference dot projection in distance. High power 650nm red laser diode module adopts quite compact and durable structure design, making sure of the most convenient and accurate red dot alignment in distance effectively.

◆ Qualified glass coated lens makes sure of high beam transmittance in distance.
Employed by excellent glass coated lens, even though red laser dot alignment is processed for quite long term or long distance, it still keeping high beam transmittance, and quite clear and accurate red reference dot projection in distance. The genuine red dot aligning gets no appearance of laser light decay or blur in long term use.

Technical parameters:

Item High Power Red Laser Diode Module
Wavelength (nm) 650nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM
Focus adjustable? Yes
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥5000 hours
Warranty Period 180 days

Note:

High intense beam emitting high power 650nm red laser diode module is only allowing operation by skilled users or professionals. Just install and adjust it to the best condition and operate under special alignment equipment.

Warning! Highly intense red laser radiation and laser reflection can be seriously serious harmful to human eyes. Avoid exposure to laser beam aperture, and take laser safety measure of wearing 650nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V, 3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 650nm 150mW-500mW Red Laser Diode Module
2. DC input power Supply

Attention: For high powered or OEM 650nm red laser diode modules, please contact us free at support@berlinlasers.com.
