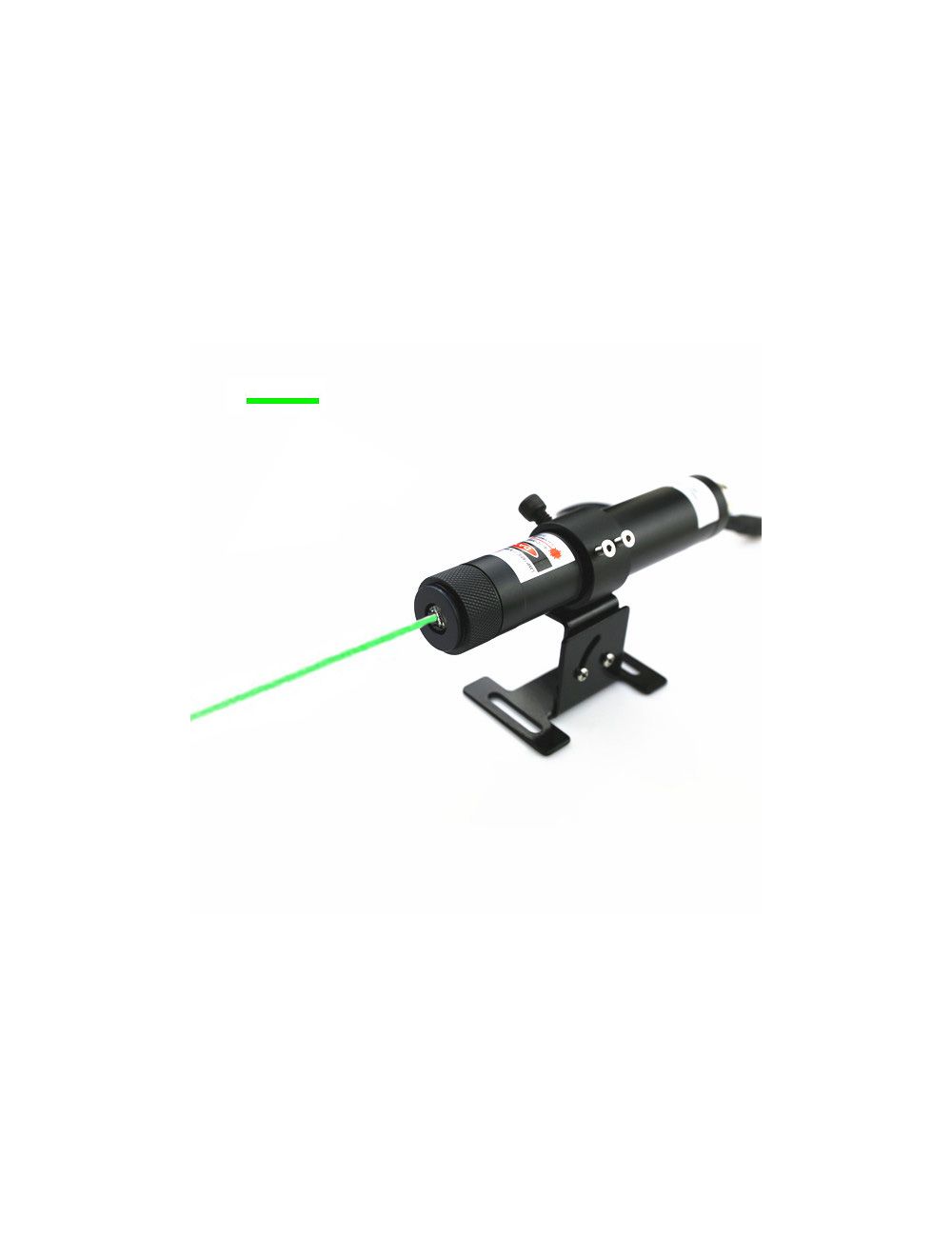

High Power 200mW Green Line Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $359.99

Special Price $319.99

  • Buy 3 for $317.99 each and save 1%
  • Buy 5 for $315.99 each and save 2%
  • Buy 10 for $313.99 each and save 2%

Quick Overview

Whether glass coated lens or separate crystal lens is equipped, high power 200mW green line laser alignment assures super high laser beam transmittance and high linear quality green reference line targeting in use. This high power 200mW green laser module employs advanced 532nm green DPSS laser tech, and excellent design with metal heat sink cooling system and DC input power supply, guaranteeing the easiest and the most accurate line aligning source for those of prominent colleges, institutes and labs etc.

* Required Fields

Details

Employed by middle wavelength of 532nm green DPSS laser tech, high power 200mW green line laser alignment is just achieving the most visible and easily absorbed green laser light. This aircraft used aluminum alloy housing made green laser module gets excellent thermal emitting and APC, ACC driving circuit design, assuring the highest level of accuracy green reference line instruction for all kinds of image processing system, textile garment process, lab experiment, military targeting, and laser medical treatment device, mill system etc.

Intelligent feedback control system assures the most reliable line targeting.

High power 200mW green laser module tube temperature increases seriously in continuous line alignment. APC, ACC driving circuit board makes perfect cooperation with metal heat sink cooling system, keeps constant output power and electric current emitting, and reduces possibility of burning out or damage. It keeps up to 80% green laser line alignment stability within 8 to 10 hours daily operation time.

Good linear quality green reference line with selectable line length and line thickness.

Focused beam high power 532nm green laser alignment generates high straightness and high fineness green reference line from qualified glass lens or separate crystal lens. Wide range optic lens degree within 10 degree to 110 degrees obtains selectable line length of 0.5 meter to 6 meters, no appearance of laser light decay or bur in constant line alignment use.

DC input power supply supported laser line alignment applied for any field.

High power 532nm green line laser alignment selects external DC input power supply, saving extra spaces for thermal stabilized system, and providing constant electric power source of green laser module device. It converts input operating voltage of 100V to 240V electric current input lower 8.4V DC power, without affect by serious interference or static. It provides easy and convenient green laser line source for majority countries and regions.

Technical parameters:

Item High Power Green Line Laser Alignment
Wavelength (nm) 532nm
Output power (mW) 200mW
Available Fan Angle(degrees) 10°-110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.0mm; At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM00
Focus adjustable? No
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


Note:

High power 532nm 200mW line laser alignment generates serious intense green light and intense thermal energy from beam aperture, which is only allowing operation by skilled users or professionals under proper adjustment to the best condition and under special alignment equipment.

Avoid eye exposure from laser beam aperture or other close distance. Remember to wear proper 532nm wavelength preventing laser safety glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 8.4V ,3000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 532nm Green Line Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM 532nm green line alignment lasers, please contact us free at support@berlinlasers.com.
