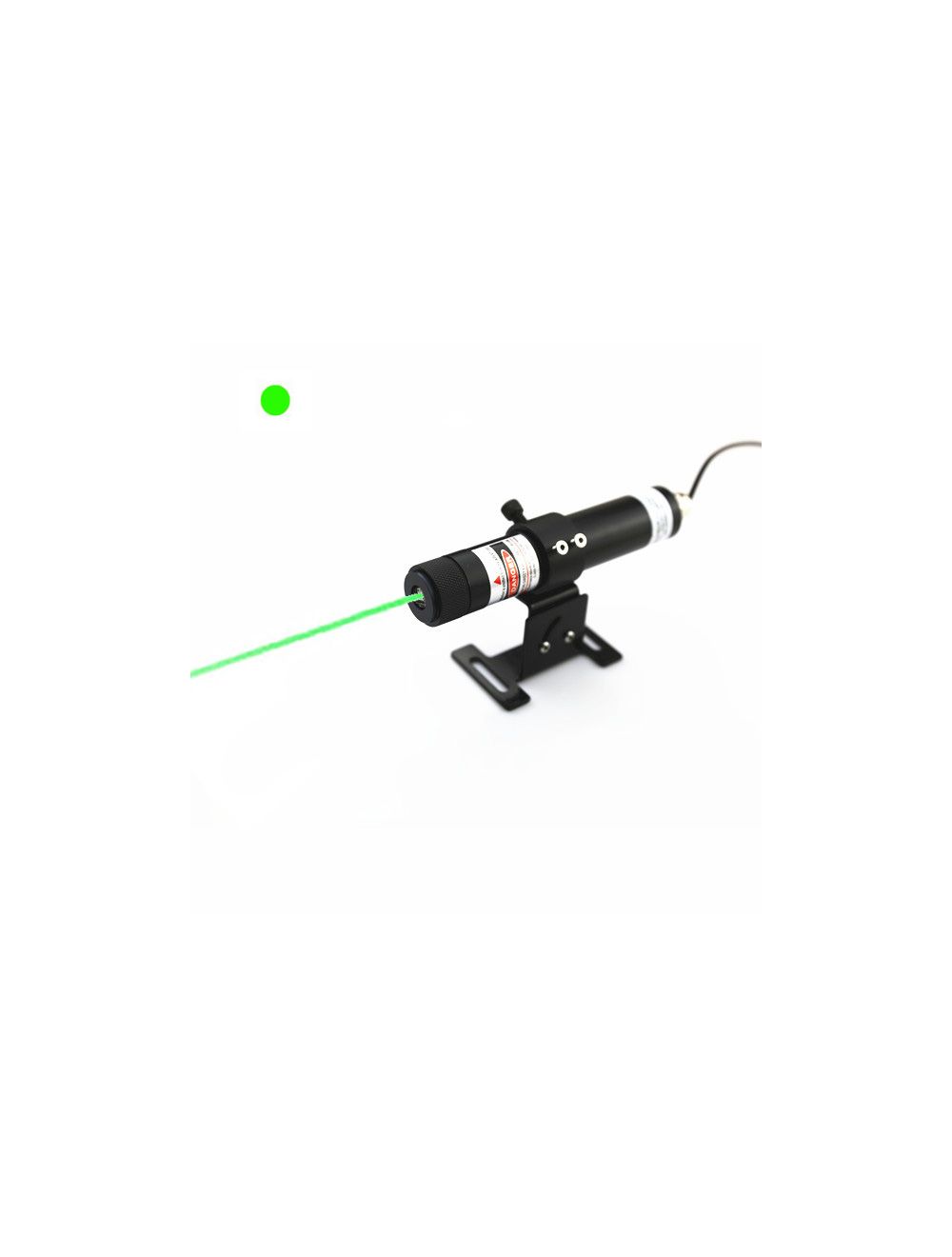

High Power 200mW Green Dot Laser Alignment

High power 200mW green dot laser alignment gets excellent adoption of 532nm green DPSS laser tech and basic thermal emitting system from metal heat sink cooling system and APC, ACC driving circuit board, it is just able to generate the most stable and accurate green reference dot for multiple working occasions, including prominent lab, institute and colleges. When 532nm green laser module makes use of wide power of 150mW to 500mW, it is just achieving compact size dot instruction for high lighting and long distance occasions efficiently.

was $329.99 Special Price $299.99
Availability: In stock
  • Buy 3 for $297.99 each and save 1%
  • Buy 5 for $295.99 each and save 1%
  • Buy 10 for $293.99 each and save 2%

Employed by advanced 532nm green DPSS laser tech and middle wavelength among all visible optic spectrums, high power 200mW green dot laser alignment is generating the most sensitive color green laser light, forming into the most visible green laser line in distance. This 532nm green laser module is adopting durable and varnish surface treated aircraft used aluminum alloy housing tube and constant DC power supply, it is getting superior thermal conductivity and reliable laser dot alignment under all strong interference, static and mechanical shocking etc.

● DC input power supply equipped 533nm green laser module assures easy use constantly. High power 200mW green dot laser alignment employs 8.4V DC input power supply, getting excellent international common connector of 5.5*2.1mm, accepting input electric current within 100V to 240V, applied for convenient dot alignment for majority countries and regions. Electric wire keeps fine is featured by high temperature resistant, good toughness, and corrosion resistance.

● Shaking and calibration proof green laser device keeps stable performance in complex occasions. This aircraft aluminum alloy material made high power 200mW green dot laser alignment passes through special anodize and oxygenized surface treatment, and filled up with thermal conductive silicone rubber and AD rubber, assuring efficient thermal conductivity, and excellent dot aligning under harsh occasion.

● Excellent optic lens and glass window assure wonderful green dot targeting constantly. Qualified glass coated lens has just made high power 532nm green laser module gets excellent laser beam transmittance and good green dot targeting in distance. Extra glass window of laser beam aperture also assures perfect dustproof and waterproof, maintaining good laser light cycling use and long serving use under proper operation.

Key features:

Intelligent feedback controlled electric driving circuit makes sure of even better beam stability in long term dot alignment.
Allowing daily operation time of 8 to 10 hours just reduces possibility of laser module tube damage or burning out, maintaining up to 80% beam stability in long term use.
High output power of 200mW makes sure of highly visible green laser dot targeting for long distance and high lighting.
CW modulation

Technical parameters:

Item High Power Green Dot Laser Alignment
Wavelength (nm) 532nm
Output power (mW) 200mW
Laser Class IIIB
Beam thickness at aperture (mm) <2.8mm
Beam divergence (mrad) <2.5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=8.4V
Operating current (mA)  I<3000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days


High power 532nm 200mW green dot laser alignment generates immediate and intense green light from beam aperture, only allowing operation by skilled users or professionals under proper adjustment to the best condition and special dot aligning devices.

Avoid eye exposure at close distance so as to protect eyes from hurt of serious intense thermal energy. Never stare at powerful green laser beam from 532nm green laser module, and take active measure to wear 532nm wavelength preventing laser safety glasses.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High power 200mW green dot laser alignment
2. DC input power Supply

Attention: For any high power and OEM 532nm green dot laser alignment, please contact us free at support@berlinlasers.com.
