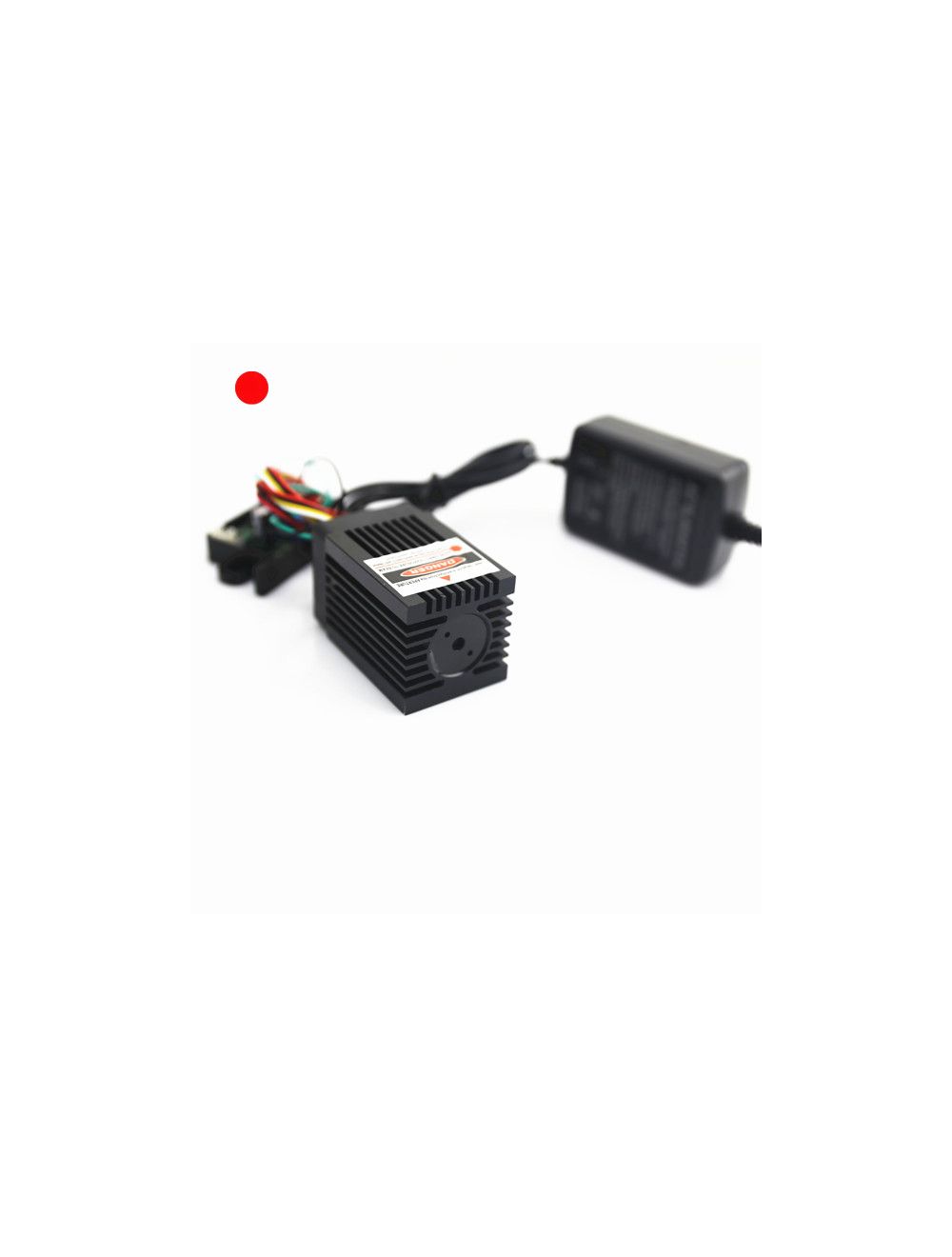

High Power 635nm 150mW-500mW Red Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $299.98

Special Price $279.98

  • Buy 3 for $277.98 each and save 1%
  • Buy 5 for $275.98 each and save 2%

Quick Overview

Specially designed with separate thermal emitting system, high power 635nm 150mW-500mW red laser diode module gets larger space reserving as thermal emitting system and highly stable red reference dot targeting in continuous dot alignment. Incorporated with import high power 635nm red laser diode and qualified glass coated lens, direct diode emission 635nm red laser device keeps generation of high laser beam transmittance and high purity red laser light emission, and fulfilling the most accurate red reference dot aligning solution for prominent institutes, lab, universities and colleges etc.

* Required Fields

Details

Beginning with high power range of 150mW to 500mW, high power 635nm red laser diode module generates the most intense and super low beam divergence red laser beam emission, fulfilling the most compact size red reference dot generation accurately. This high power 635nm red laser gets full consideration of industrial stabilization, equipped with APC, ACC driving circuit board inside metal housing tube, assuring superior thermal conductivity and the most accurate red reference dot generation for industrial dot alignment, military targeting, drilling system, lab experiment and scientific research etc.

◆ 635nm red laser diode assures the purest and brightest red dot alignment.

Supported by high power 635nm red laser diode, with at least 3 times brighter laser light emission than formal 650nm red lasers, high power 635nm red laser module ensures high purity and high brightness red reference dot targeting under long distance and high lighting. Easy adjustment of laser beam focus makes sure of temporary red laser beam concentration and the most accurate dot alignment rapidly.

◆ DC input power supply supports continuous dot alignment in multiple occasions.

AC/DC adapter allows wide range electric current input within 100V to 240V, converting into 9V 1000mAh DC power supply, supporting super bright and visible red laser beam and red reference dot alignment immediately. High power 635nm red laser diode module gets featured characteristics of high temperature and corrosion resistance, enables high beam stability under strong interference and strong static etc.

◆ Excellent optic lens ensures excellent red laser light source projection constantly.

The adoption of qualified glass coated lens ensures super high laser beam transmittance and the best quality red laser source generation in distance. Passing through strict up to 24 hours aging preventing tests, this industrial stabilized 635nm red laser module keeps continuous and stable red dot projection, no appearance of laser light decay or blur in continuous work.

◆ Intelligent feedback system assures constant dot alignment stably.

High power 635nm red laser diode module gets rapid tube temperature increasing in continuous dot aligning. APC, ACC driving circuit board ensures intelligent feedback of increasing electric current impacting, maintaining up to 80% laser beam stability in constant dot alignment work. Within 8 to 10 hours continuous dot alignment work, it reduces possibility of laser diode and electric driving circuit burning out or damage, maintains long serving lifetime in long time dot alignment.

Key features:

Extending electric wires for both high power 635nm red laser and DC input power supply ensure convenient installation and adjustment on any device or equipment.
Selectable high power of 150mW, 200mW, 300mW, 400mW and 500mW ensures the excellent red light source and highly clear dot alignment in distance.
CW modulation

Technical parameters:

Item High Power 635nm Red Laser Diode Module
Wavelength (nm) 635nm
Output power (mW) 150mW, 200mW, 300mW, 400mW, 500mW
Laser Class IIIB, IV
Beam thickness at aperture (mm) 2mm×6mm@2M
Beam divergence (mrad) 5mrad
Beam mode (before optics) TEM00
Focus adjustable? Yes
TTL Modulation NO
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Note:

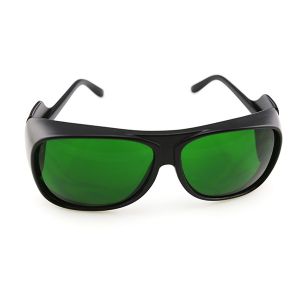

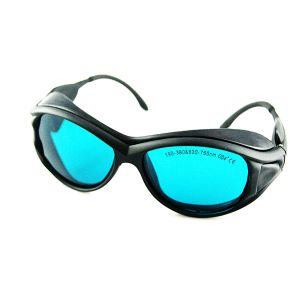

High intense beam emitting high power 635nm red laser diode module allows operation by trained users or professionals. Any exposure to powerful 635nm red laser radiation and laser reflection can cause serious damage and hazard to human eyes and skins. Avoid eye staring at laser beam aperture and do remember to remember to wear 635nm wavelength preventing laser safety goggles.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 635nm Red Laser Diode  Module
2. DC input power Supply

Attention: For high powered or OEM 635nm red laser modules, please contact us free at support@berlinlasers.com.
