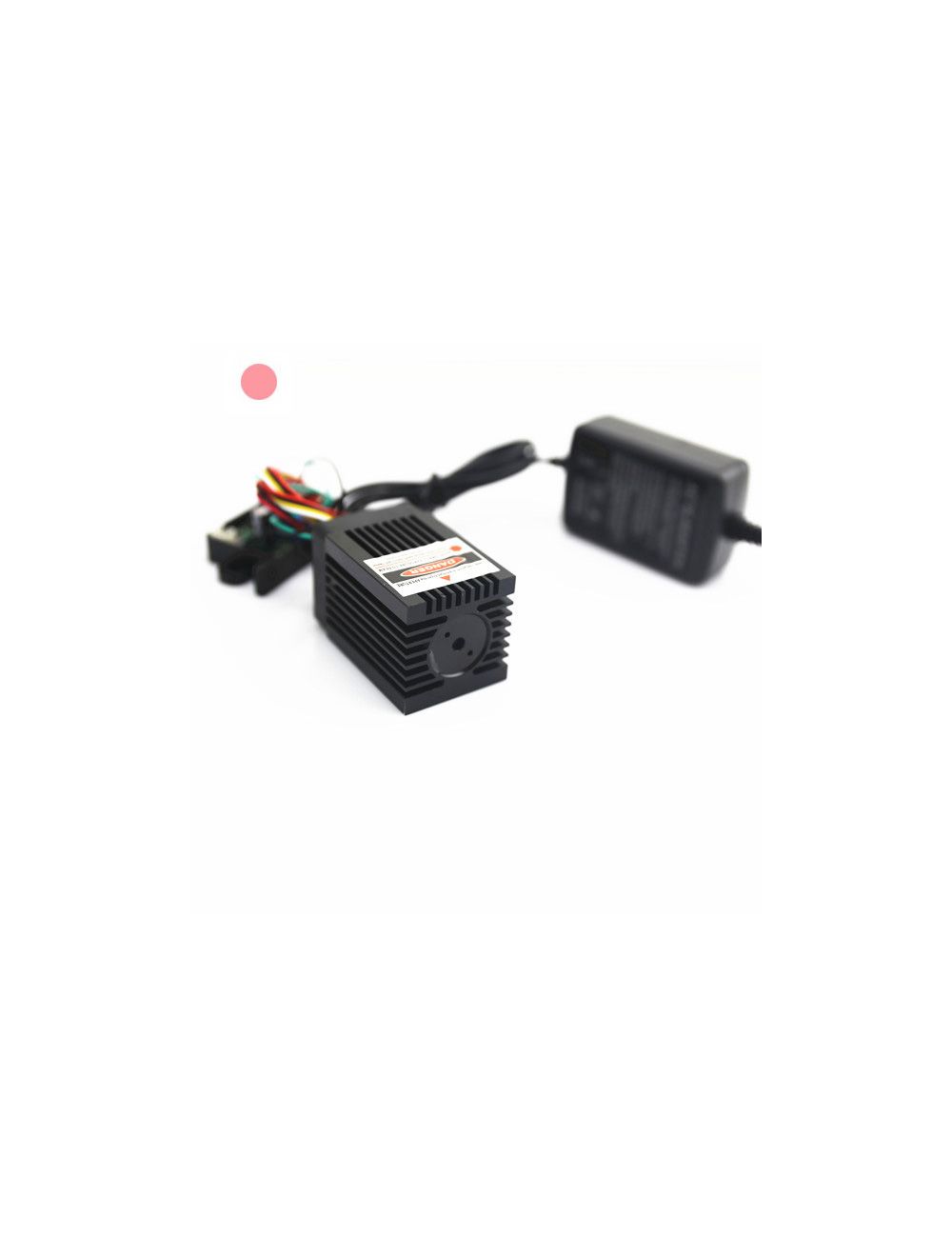

High Power 980nm 600mW-1000mW Infrared Laser Diode Module

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $339.98

Special Price $298.98

  • Buy 3 for $296.98 each and save 1%
  • Buy 5 for $294.98 each and save 2%
  • Buy 10 for $292.98 each and save 3%

Quick Overview

Employed by high power 980nm infrared laser diode and excellent thermal emitting system, direct diode emission high power 980nm 600mW to 1000mW infrared laser diode module gets improving laser beam stability and highly stable IR infrared laser dot alignment in long time use. Connected with external electric power source and separate cooling system design, this adjustable focus designed high power 980nm IR infrared laser module ensures high laser beam transmittance and highly accurate IR dot projection for prominent institutes, lab, colleges and universities etc.

* Required Fields

Details

Under operation with professional night vision illumination devices, such as CCD camera, black and white camera or infrared laser device etc, long wavelength and high power 980nm 600mW-1000mW infrared laser diode module easily obtains super clear and accurate IR infrared laser dot projection in distance efficiently. Integrated with APC, ACC driving circuit board, high power 980nm IR laser makes sure of intelligent feedback of electric current supply, and assures the most stable IR dot alignment for multiple application fields, such as OEM infrared laser instruments, scientific research, communication, spectrum analysis, laser medical therapy, night vision IR illuminator, and IR laser positioning devices etc.

◆ Import IR laser diode ensures improving beam stability.

Selected from import 600mW to 1000mW IR laser diode, high power 980nm infrared laser diode module maintains the most intense IR laser beam emission and up to 80% photoelectric ability. Separate metal heat sink ensures even better thermal emitting, and providing the most stable IR dot alignment for all night vision illuminated fields efficiently.

◆ DC input power supply ensures continuous IR dot alignment easily.

External AC/DC adapter accepts 100V to 240V electric current input, converting into 9V 1000mAh electric current supply for high power 980nm infrared laser diode module. Electric wire extended for both DC power supply and IR laser gets featured characteristics of high temperature and corrosion resistance. The genuine IR laser dot alignment keeps perfect under strong interference or strong static.

◆ Adjustable focus assures the most accurate IR dot alignment rapidly.

Cautious design with adjustable focus allows easy roast of laser beam aperture, ensuring immediate concentration of IR laser beam generation, forming into excellent 980nm infrared laser source generation and the most accurate IR dot projection in distance efficiently.

◆ APC, ACC driving circuit assures long term constant dot generation perfectly.

High temperature is produced during constant IR dot generation. APC, ACC driving circuit board prevents serious electric current impacting and protects laser diode and electric driving circuit burning out in constant IR laser dot alignment. Within daily operating time of 8 to 10 hours, high power 980nm infrared laser diode module reduces possibility of laser tube burning out or damage, but maintaining excellent laser light cycling use and extremely stable and reliable dot alignment in continuous use.

Technical parameters:

Item High Power Infrared Laser Diode Module
Wavelength(nm) 980nm
Output power(mW) 600mW, 700mW, 800mW, 900mW, 1000mW
Beam diameter at aperture(mm) 2mm×6mm@2M
Beam divergence(mrad) 6 mrad
Beam mode TE
Focus adjustable? Yes
Operating voltage(v) DC=9.0V
Operating current(mA) I<1000mA
Operating temperature(℃) 10℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension Dia26mm×Length150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months

Note:

Extremely intense and powerful infrared laser beam is produced from high power 980nm infrared laser diode module. It is only allowing operation by skilled users or professionals under professional alignment device or equipment.

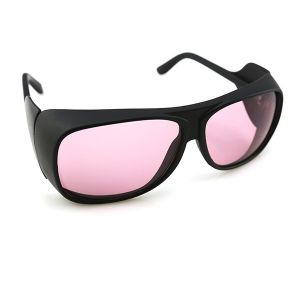

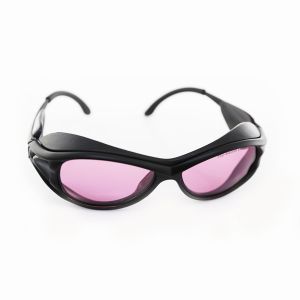

Any eye exposure to powerful infrared laser radiation and IR reflection might cause serious hurt or damage to human eyes and skins. Do remember to wear professional 980nm wavelength preventing laser safety goggles & glasses for any output power made IR laser device.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power 980nm Infrared Laser Diode Module
2. DC input power Supply

Attention: For high powered or OEM 980nm infrared laser diode modules, please contact us free at support@berlinlasers.com.
