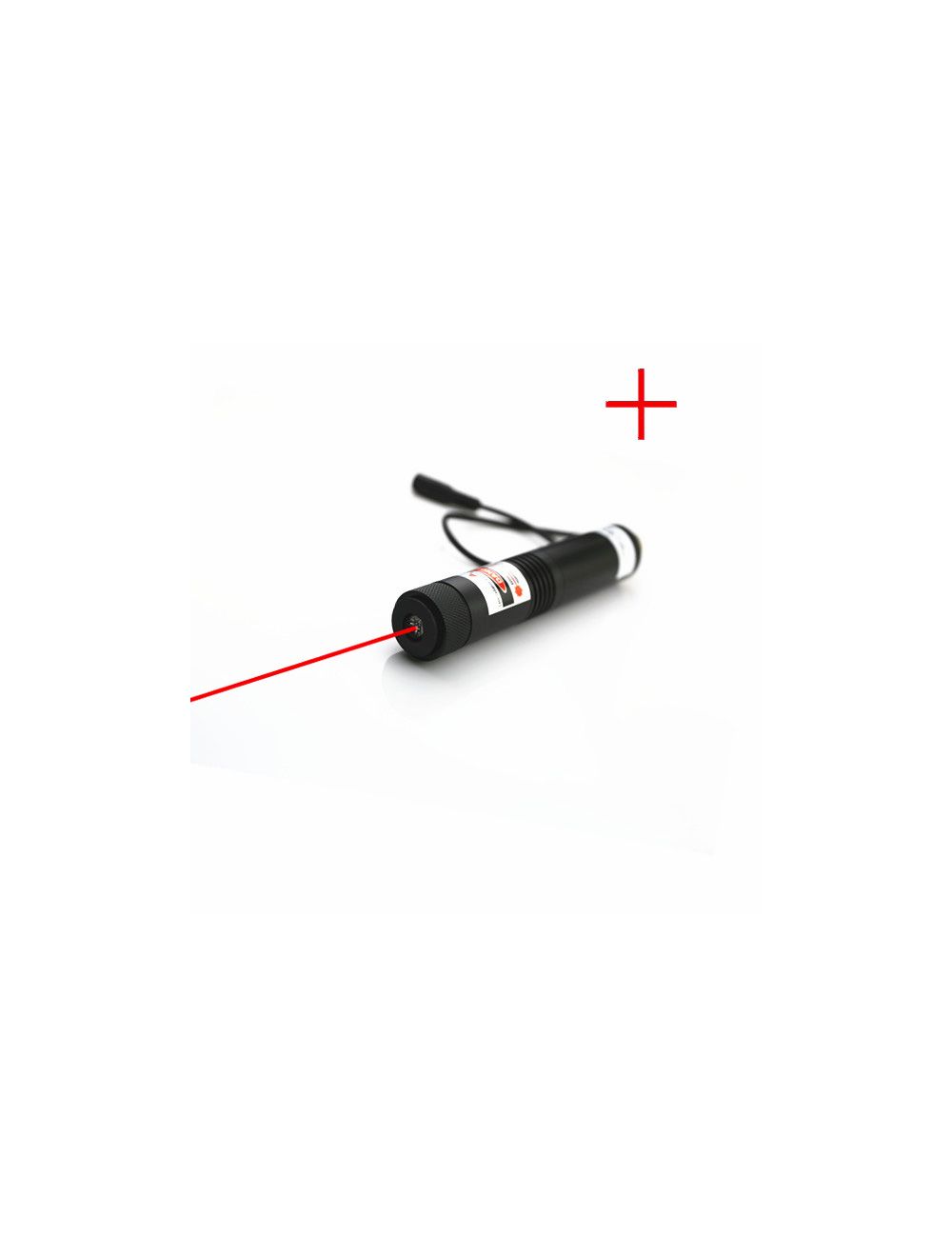

High Power Economy Red Cross Laser Alignment

Be the first to review this product

Payment Option:

Availability: In stock

Regular Price: $329.99

Special Price $289.99

  • Buy 3 for $287.99 each and save 1%
  • Buy 5 for $285.99 each and save 2%
  • Buy 10 for $283.99 each and save 3%

Quick Overview

High power economy red cross laser alignment employs excellent quality import 650nm red laser diode and glass coated lens inside durable metal housing tube, easily obtaining highly accurate 90 degrees two perpendicular red lines generation on multiple surfaces. Designed by metal heat sink cooling system and APC, ACC driving circuit design, high power 650nm red laser module prevents intense electric current impact, providing the most reliable and accurate red cross line source emission for those of prominent institutes, colleges and labs etc.

* Required Fields


Under requirement of high level of stability and accuracy cross line measurement in multiple working environments, high power economy red cross laser alignment is just the best solution with the lowest production cost. Under adoption of aircraft used aluminum alloy housing material and inner copper material made 650nm red laser diode core part, after proper installation and adjustment of cross line thickness and targeting direction, this industrial stabilized 650nm red laser module just making sure of the most reliable and good linear quality red cross line source for all industrial and high tech aligning works.

● DC input power supply for constant and reliable cross line alignment in long term use.

High power 650nm red laser module adopts 8.4V voltage DC input power supply, accepting electric current input of 100V to 240V, accepting convenient cross line generation in multiple regions and countries. External electric power source assures the most efficient thermal emitting and constant red cross line alignment.

● Dual direction thermal conductivity for reliable cross line alignment performing.

Besides basic design with metal heat sink cooling system, high power economy red cross laser alignment also gets superior thermal conductivity from aluminum alloy housing material and copper made 650nm red laser diode, ensuring the most reliable cross line generation under multiple working occasion, including mechanical shocking, calibration or moving etc.

● Improving beam stability under operation by skilled users or professionals.

The adoption of improving 650nm red laser diode makes sure of improving laser beam stability under use by skilled users or professionals. Daily operating of 8 to 10 hours just reserves enough time for laser module cooling down and reduces possibility of laser diode and electric driving circuit burning out or damage.

Key features:

High power range of 150mW, 200mW 300mW, 400mW and 500mW assures the most intense red laser beam emission and extremely accurate two perpendicular lines with accurate 90 degrees for long distance alignment.
High quality glass coated lens with selectable optic lens degree of 10°, 15° and 110°makes sure of strong laser beam transmittance and high linear quality and different dimension cross line source generation in distance.
High duration and compact structure made red laser module assures extremely long serving lifetime.
CW modulation.

Technical parameters:

Item High Power Economy Red Cross Laser Alignment
Wavelength(nm) 650nm
Output power(mW) 150mW, 200mW 300mW, 400mW and 500mW
Available Fan Angel (degrees) 10°, 15°,110°
Beam divergence(mrad) 5 mrad
Beam mode TE
Focus adjustable? No
Operating voltage(v)  DC=9V
Operating current (mA)  I<1000mA
Operating temperature(℃) 15℃~30℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) ≥8000 hours
Warranty 6 months


High power economy red cross laser alignment only allows operations by trained people or professionals. People should adjust the cross line laser to the best condition and operate under special alignment equipment.

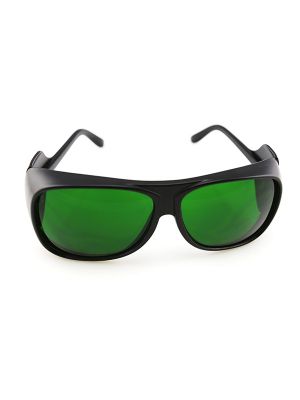

Warning! High power red laser module emits intense laser beam and thermal energy from beam aperture. Avoid eye exposure to powerful red laser radiation and laser reelections. Do remember to wear proper 650nm wavelength preventing laser safety goggles and assure safe operation constantly.

Power Supply:

Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 9V ,1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm

Packing List:
1. High Power Economy Red Cross Laser Alignment
2. DC input power Supply

Attention: For high powered or OEM red cross line projecting alignment lasers, please contact us free at support@berlinlasers.com.
